Front Floor Rear Console Side Trim Panel Replacement - Right Side

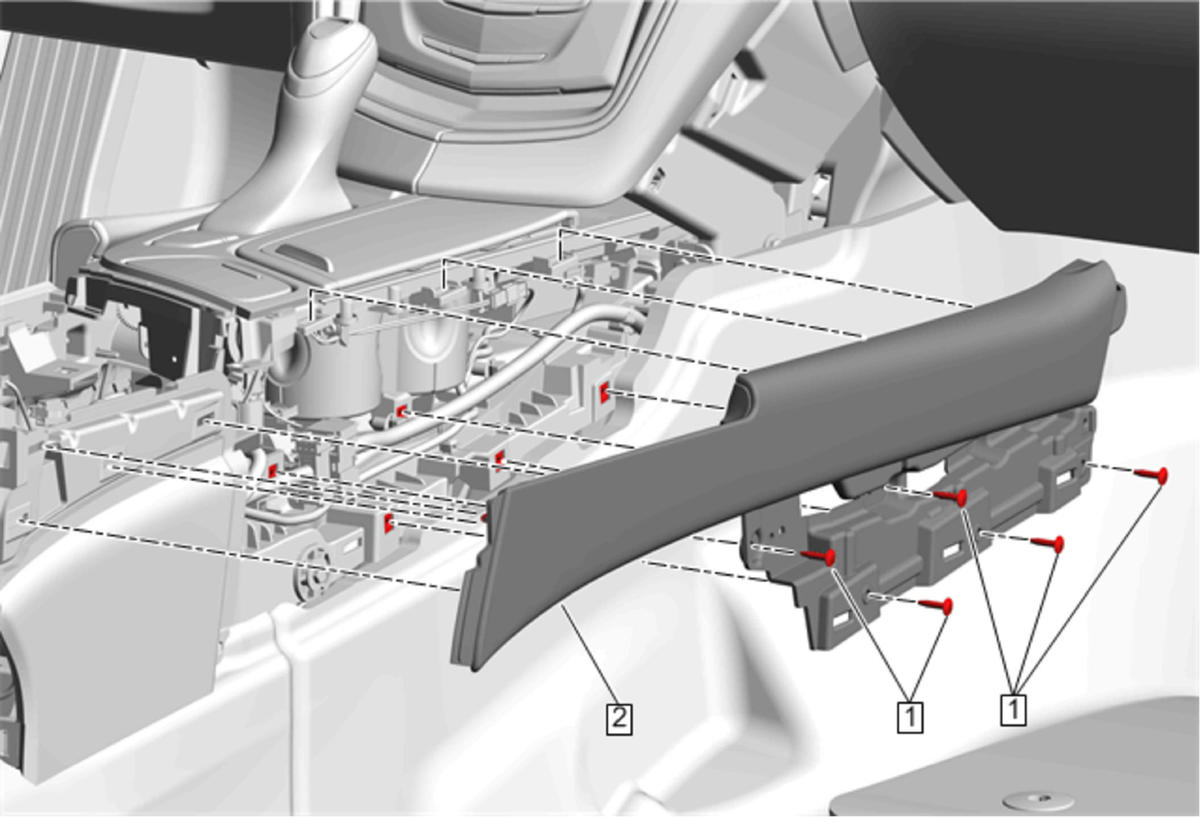

GM4063374

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Front Floor Console Compartment Replacement
Instrument Panel Lower Center Trim Panel Replacement (Right Side) Instrument Panel Lower Center Trim Panel Replacement (Left Side)

1

Front Floor Console Trim Plate Bolt [5x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

2

Front Floor Rear Console Side Trim Panel - Right Side

Procedure

Remove the four electrical harness retainers and reposition the harness.
Move the passenger seat rearward and recline.
Use a plastic trim tool if necessary.
Pull outward at the rear of the trim panel and upward at the front. Roll the front edge of the trim panel out from under the instrument panel.
