Installation Procedure

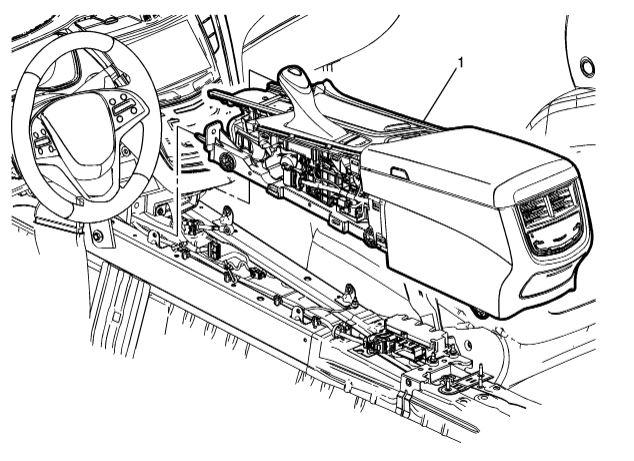

  1. Install the front floor console assembly (1) into the vehicle.
    GM3458030Courtesy of GENERAL MOTORS COMPANY
  2. Connect all electrical connectors.

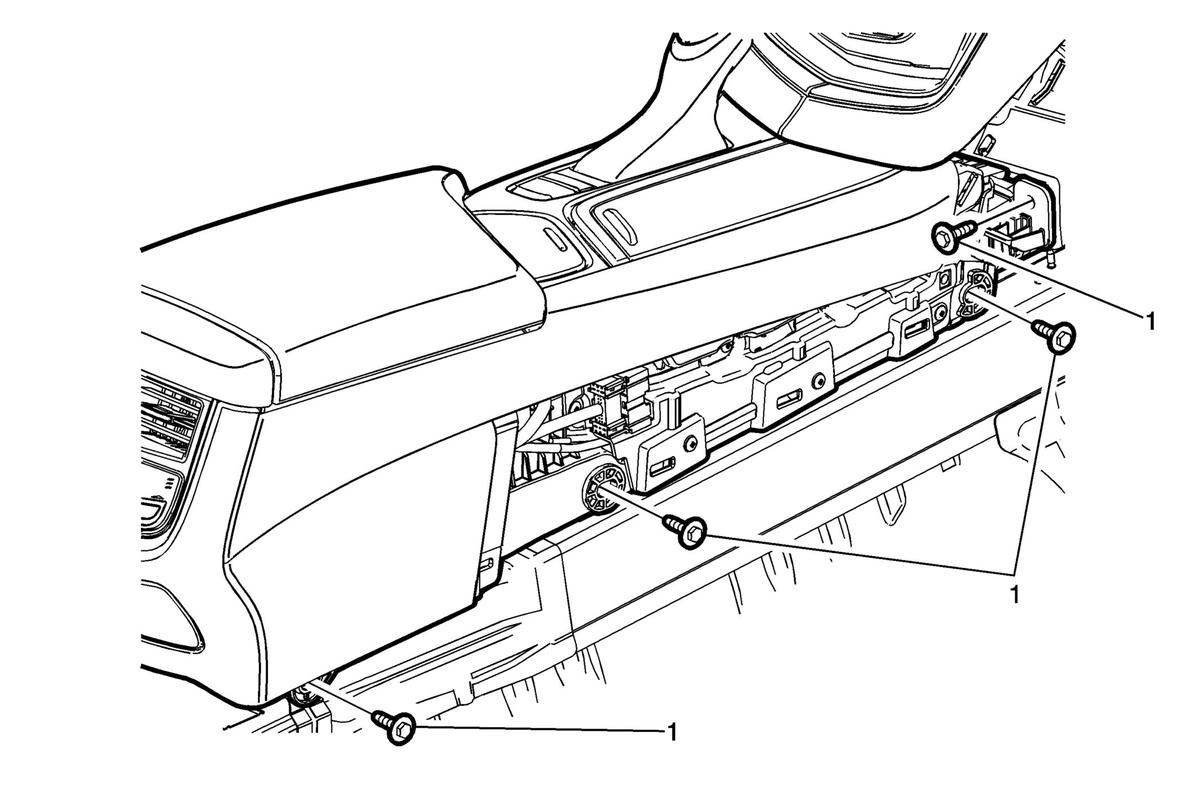

  3. Front Floor Console Bolt (1) - Install and tighten [4x]7 N.m (62 lb in)
    GM3458026Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

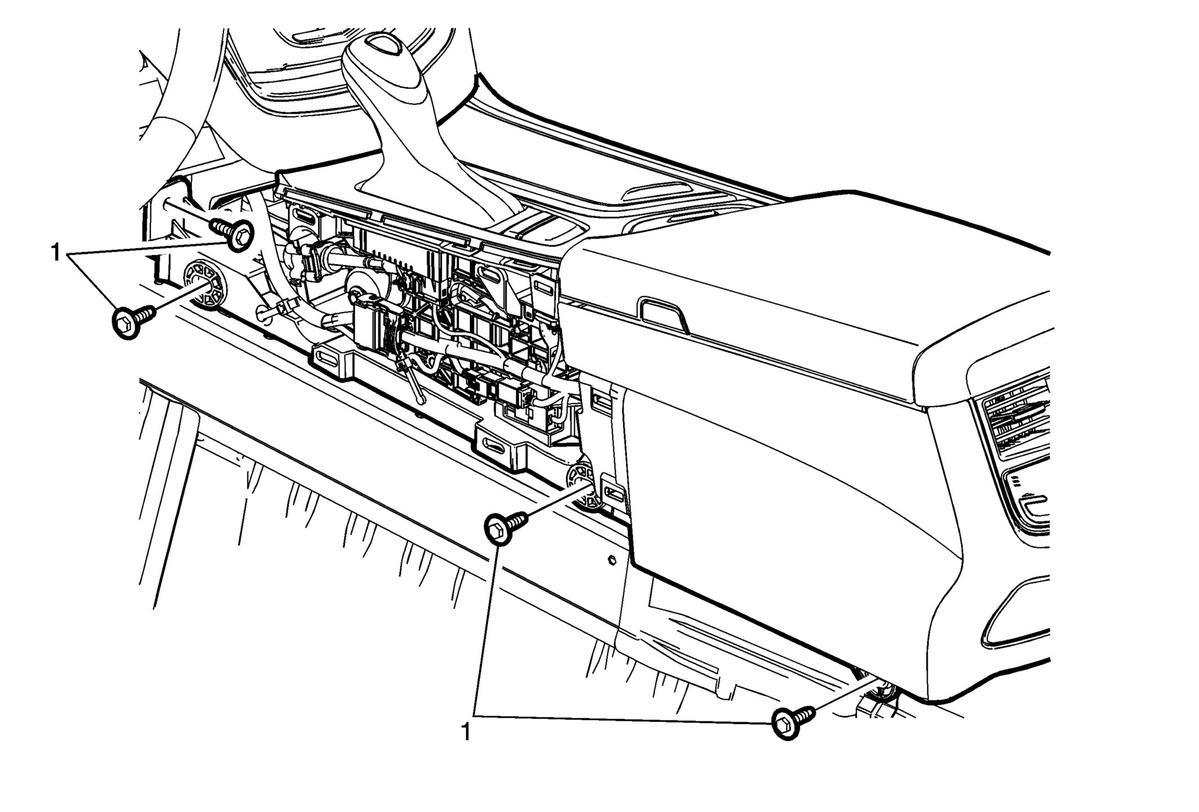

  4. Front Floor Console Bolt (1) - Install and tighten [4x]7 N.m (62 lb in)
    GM3458025Courtesy of GENERAL MOTORS COMPANY

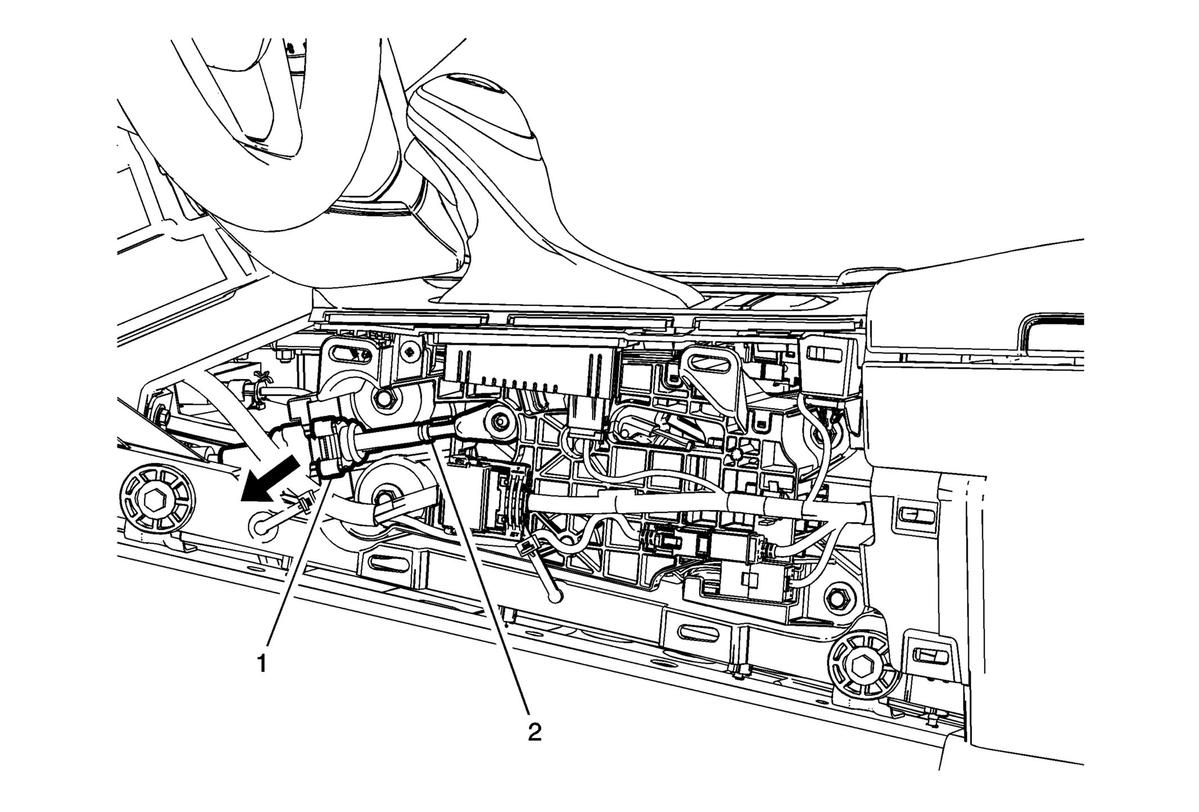

  5. Connect the transmission range selector lever cable terminal (2) to the shift pin.
    GM3458024Courtesy of GENERAL MOTORS COMPANY
  6. Install the transmission range selector cable (1) to the transmission control base by pressing down until it seats into place.
  7. Instrument Panel Lower Center Trim Panel - Install - Instrument Panel Lower Center Trim Panel Replacement (Right Side) Instrument Panel Lower Center Trim Panel Replacement (Left Side)
  8. Front Floor Console Side Trim Panel - Left Side - Install - Front Floor Console Side Trim Panel Replacement - Left Side
