Front Floor Console Rear Trim Panel Replacement

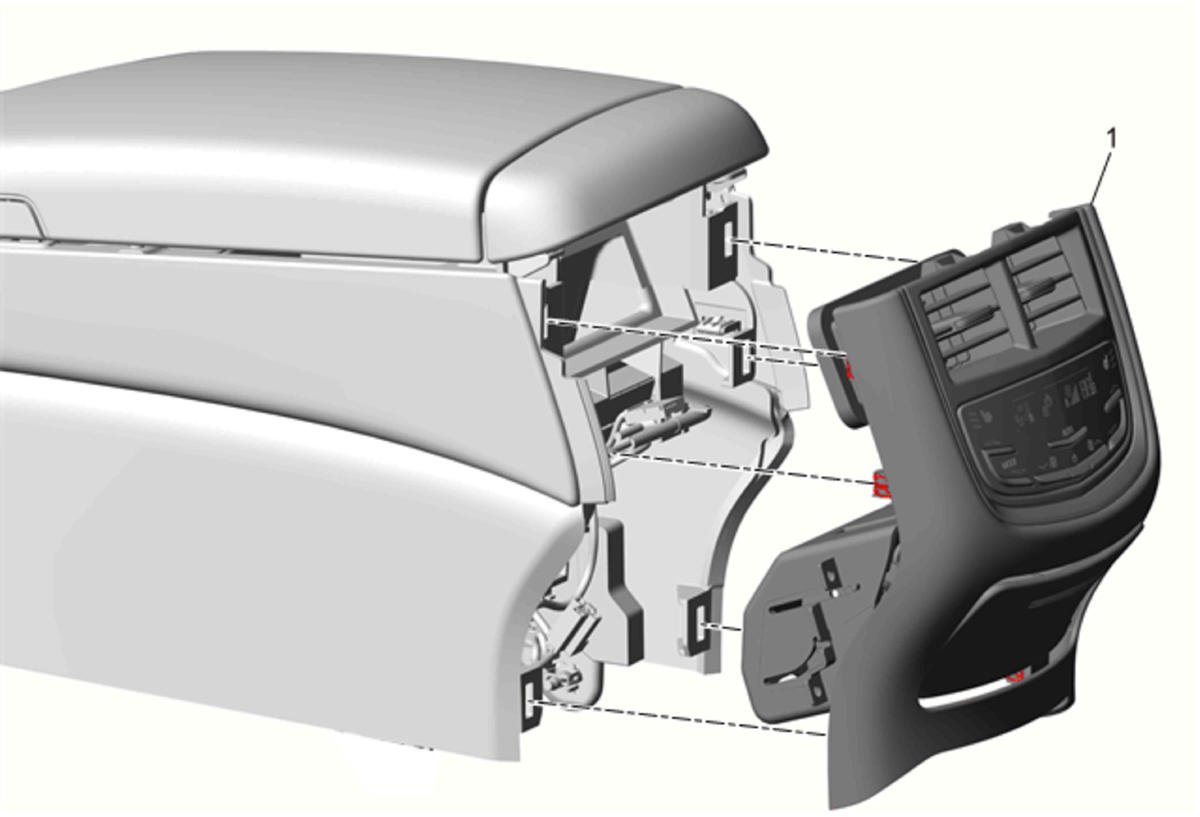

GM4067203Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Floor Console Rear Trim Panel

Procedure

  1. Use a flat bladed plastic trim tool.
  2. Disconnect all electrical connectors.
  3. Transfer components as necessary.
