Front Floor Console Front Compartment Replacement

Courtesy of GENERAL MOTORS COMPANY

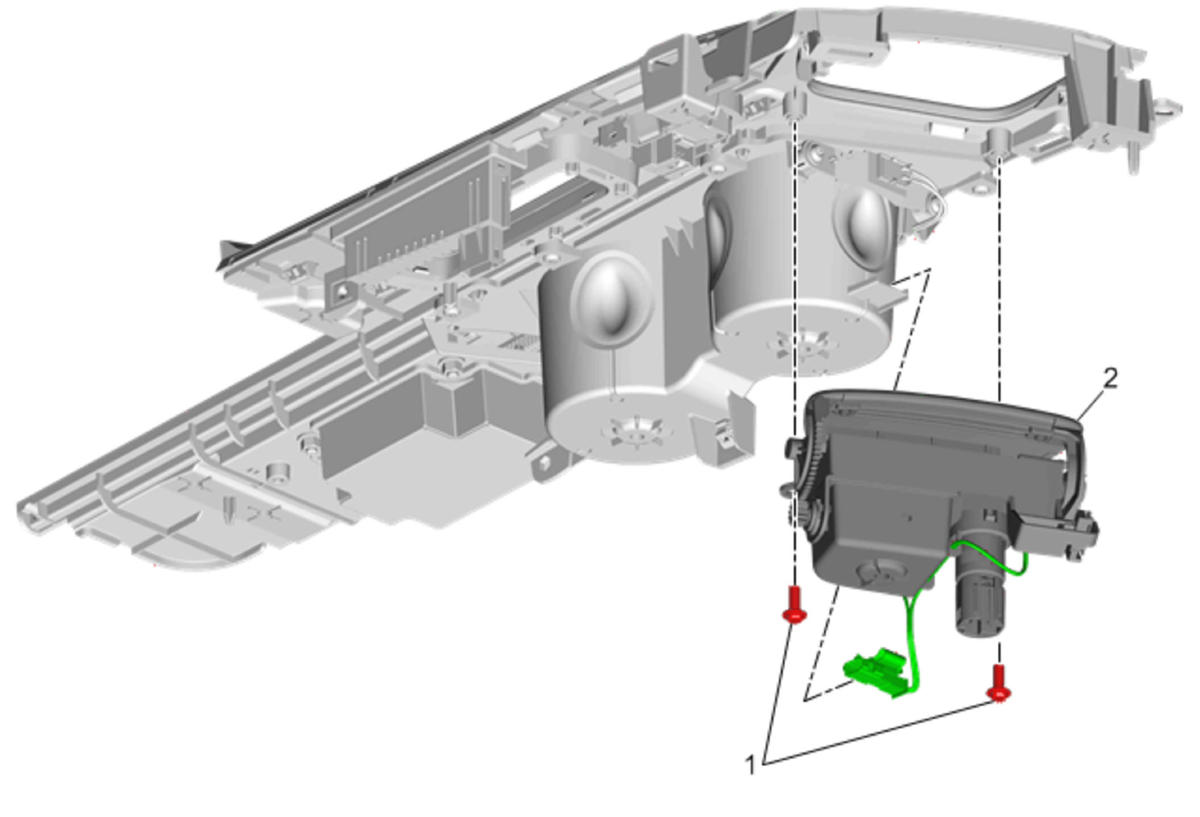

Callout	Component Name
Preliminary Procedure  Front Floor Console Cup Holder Plate Replacement
1	Front Floor Console Trim Plate Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Front Floor Console Front Compartment Procedure  Disconnect the electrical connector from the cup holder.
