Installation Procedure

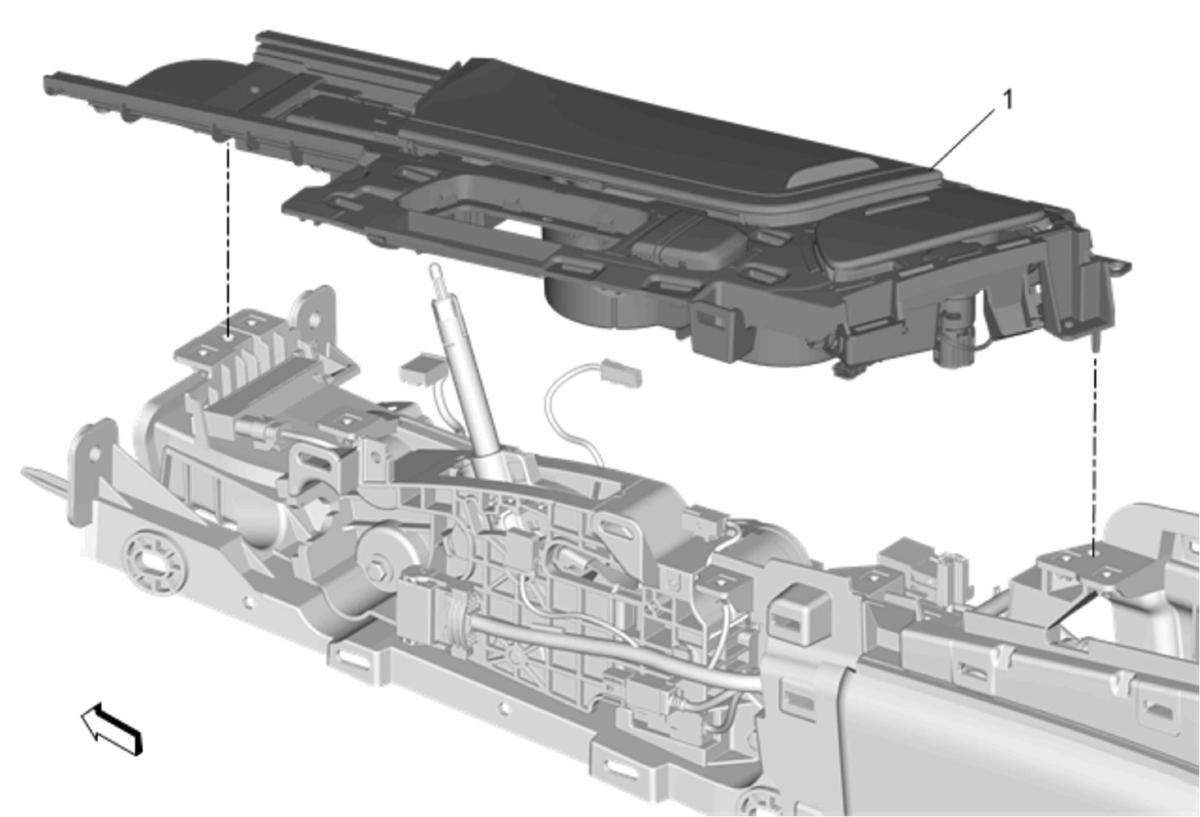

  1. Front Floor Console Cup Holder Plate (1) - Install
    GM3944796Courtesy of GENERAL MOTORS COMPANY
  2. Connect all electrical connectors.

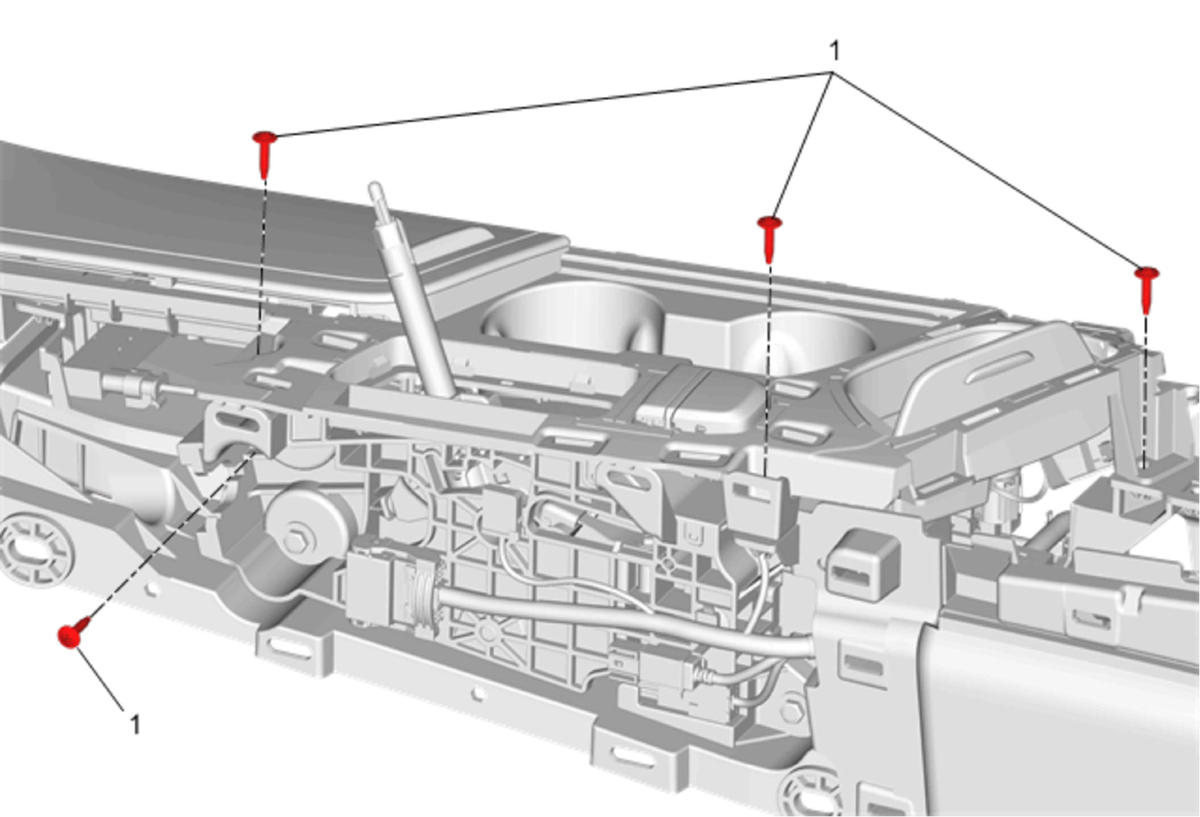

  3. Front Floor Console Trim Plate Bolt (1) - Install and tighten 2.5 N.m (22 lb in) [4x]
    GM3944784Courtesy of GENERAL MOTORS COMPANY

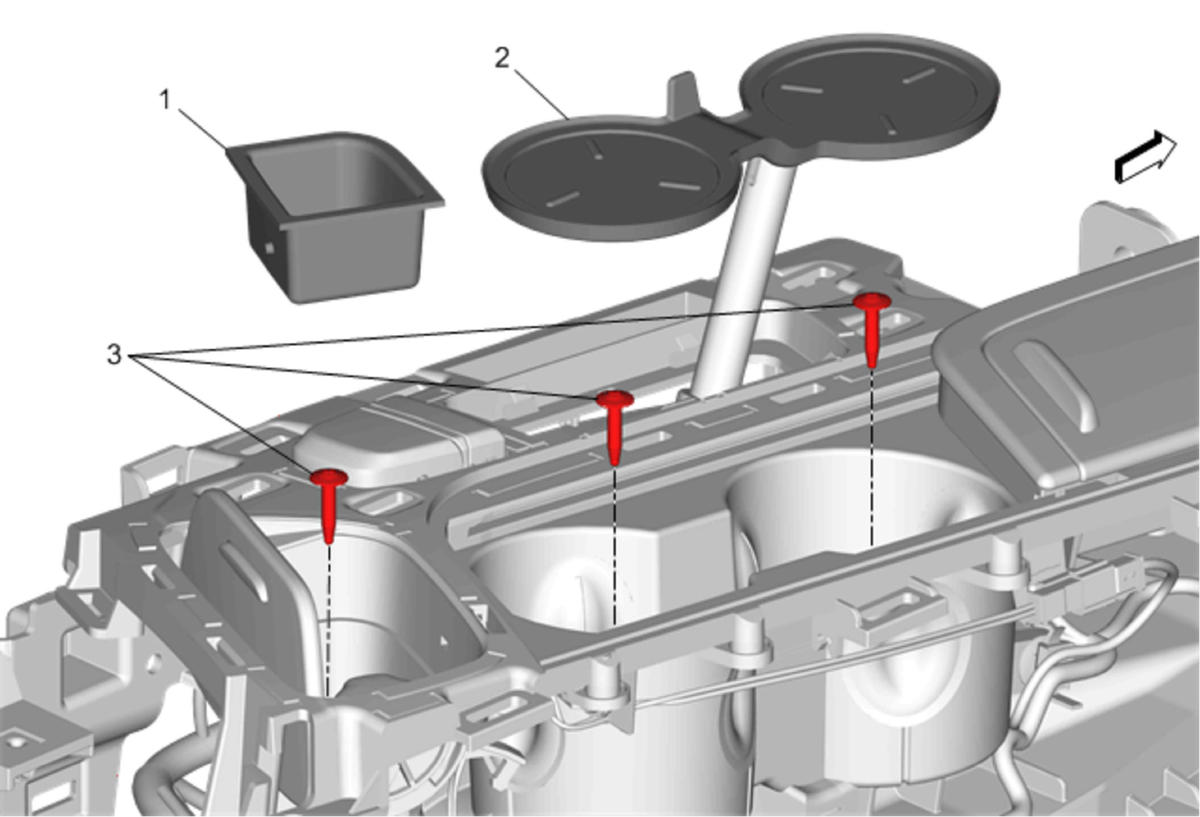

  4. Front Floor Console Trim Plate Bolt (3) - Install and tighten 2.5 N.m (22 lb in) [3x]
    GM3944776Courtesy of GENERAL MOTORS COMPANY
  5. Front Floor Console Front Compartment Liner (1) - Install
  6. Front Floor Console Cup Holder Liner (2) - Install
  7. Front Floor Console Trim Plate Bolt (1) - Install and tighten 2.5 N.m (22 lb in) [2x]

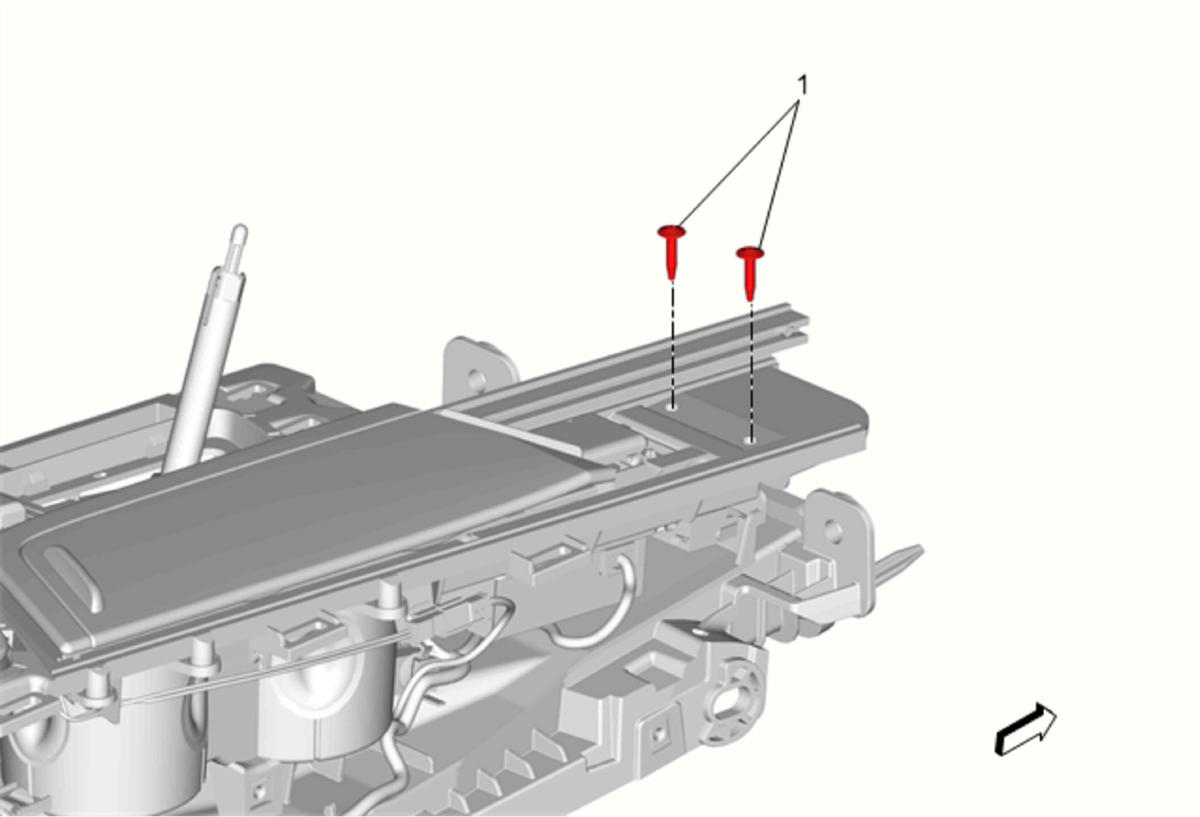

    GM3944761Courtesy of GENERAL MOTORS COMPANY

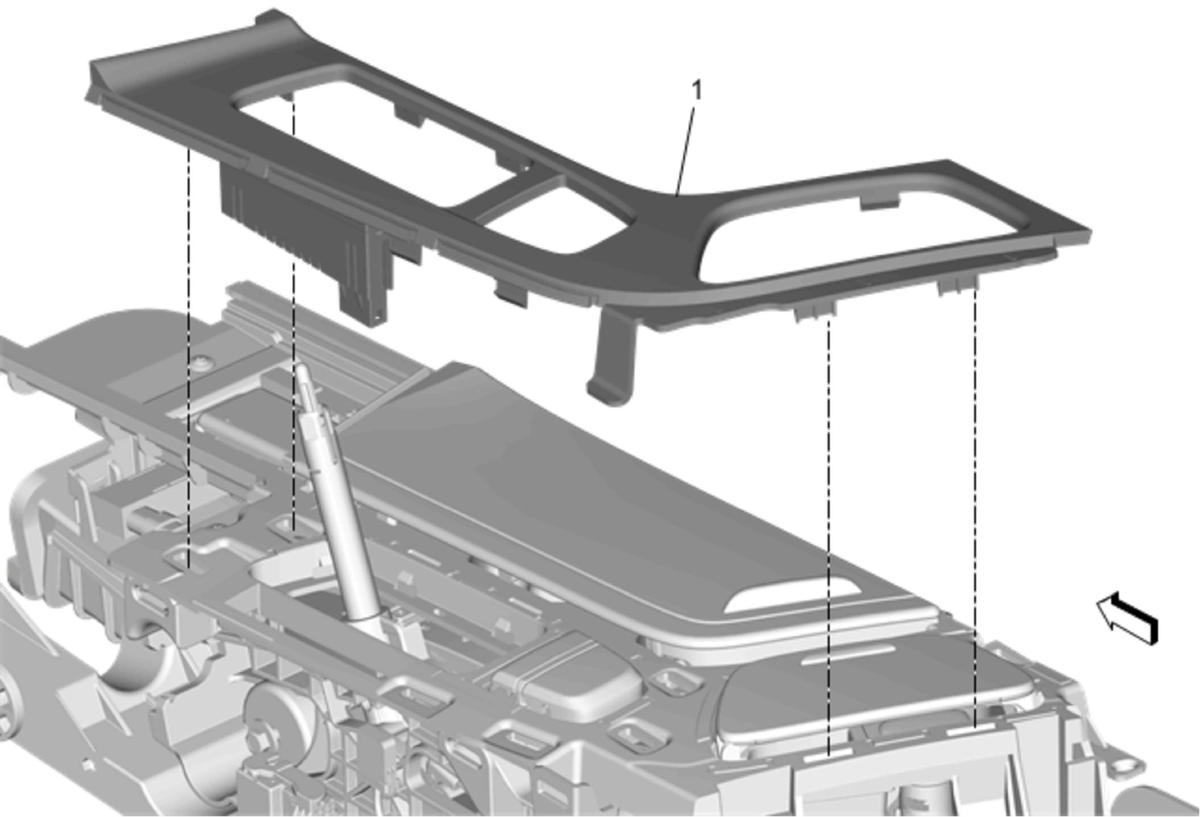

  8. Automatic Transmission Control Indicator (1) - Install
    GM3944505Courtesy of GENERAL MOTORS COMPANY
  9. Connect all electrical connectors.

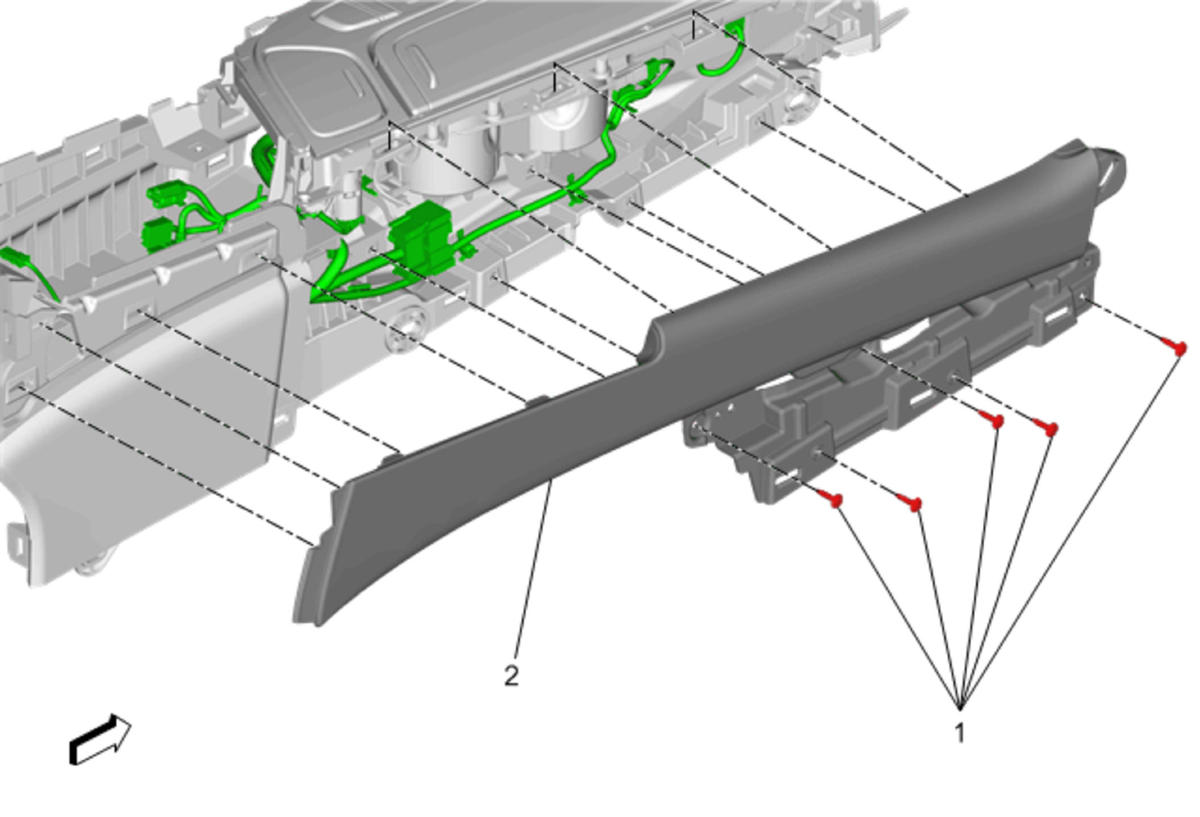

  10. Front Floor Rear Console Side Trim Panel - Right Side (2) - Install
    GM3944468Courtesy of GENERAL MOTORS COMPANY
  11. Front Floor Console Trim Plate Bolt (1) - Install and tighten 2.5 N.m (22 lb in) [5x]
  12. Connect all electrical connectors.
  13. Front Floor Rear Console Side Trim Panel - Left Side (1) - Install

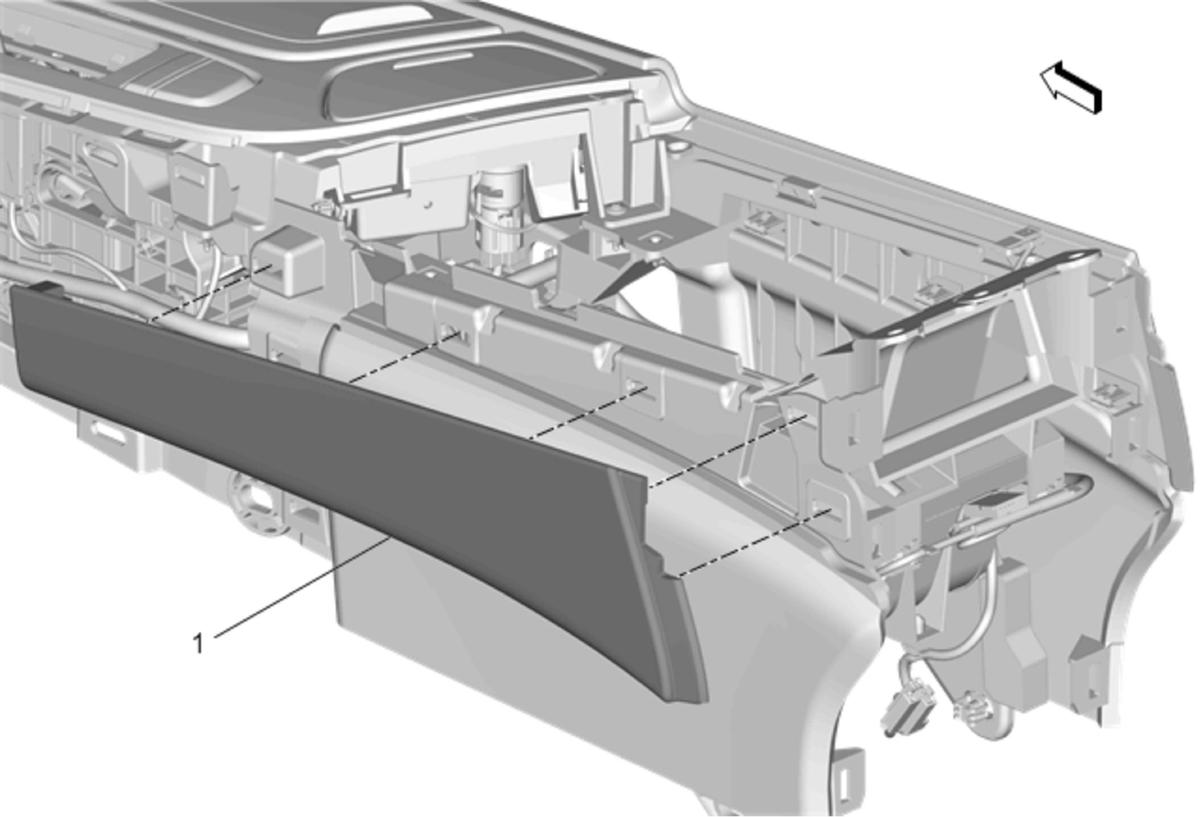

    GM3944413Courtesy of GENERAL MOTORS COMPANY
  14. Connect electrical connections, if applicable.
  15. Front Floor Console Compartment (1) - Install

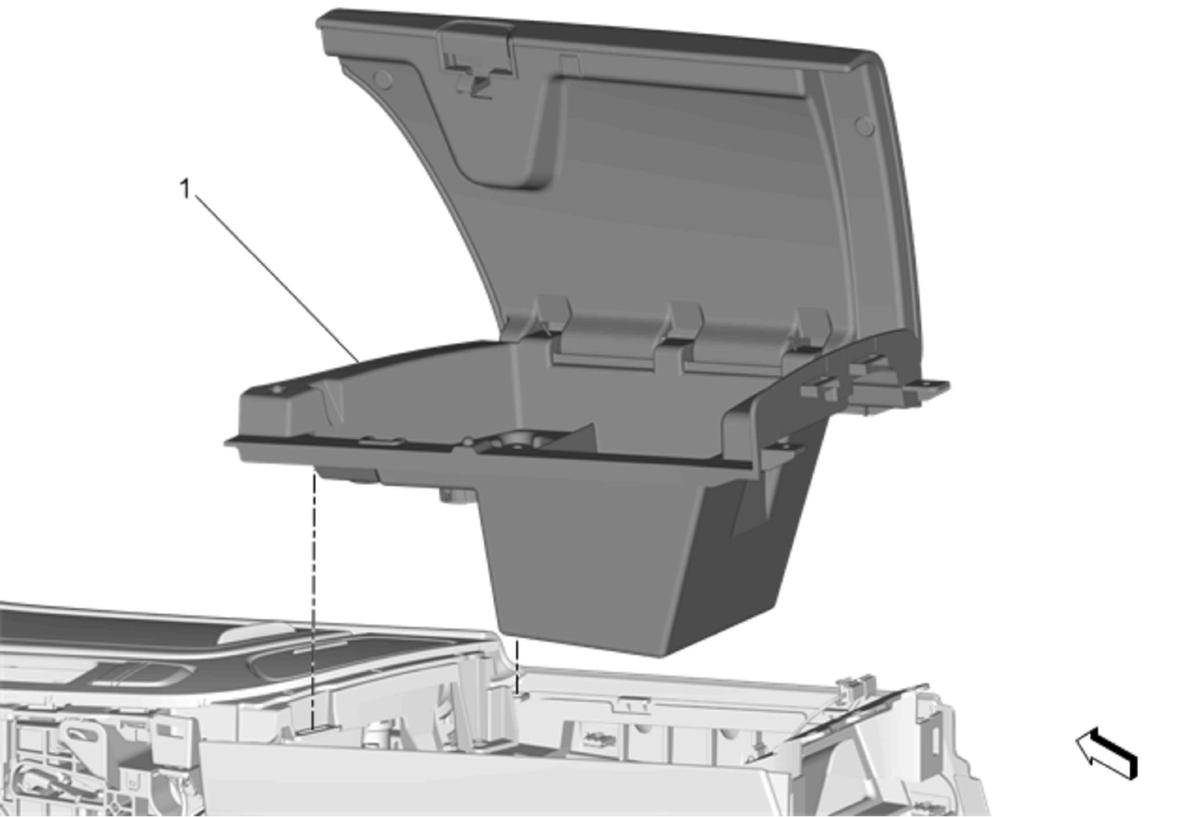

    GM3944331Courtesy of GENERAL MOTORS COMPANY
  16. Front Floor Console Trim Plate Bolt (2) - Install and tighten 2.5 N.m (22 lb in) [3x]
    GM3944316Courtesy of GENERAL MOTORS COMPANY

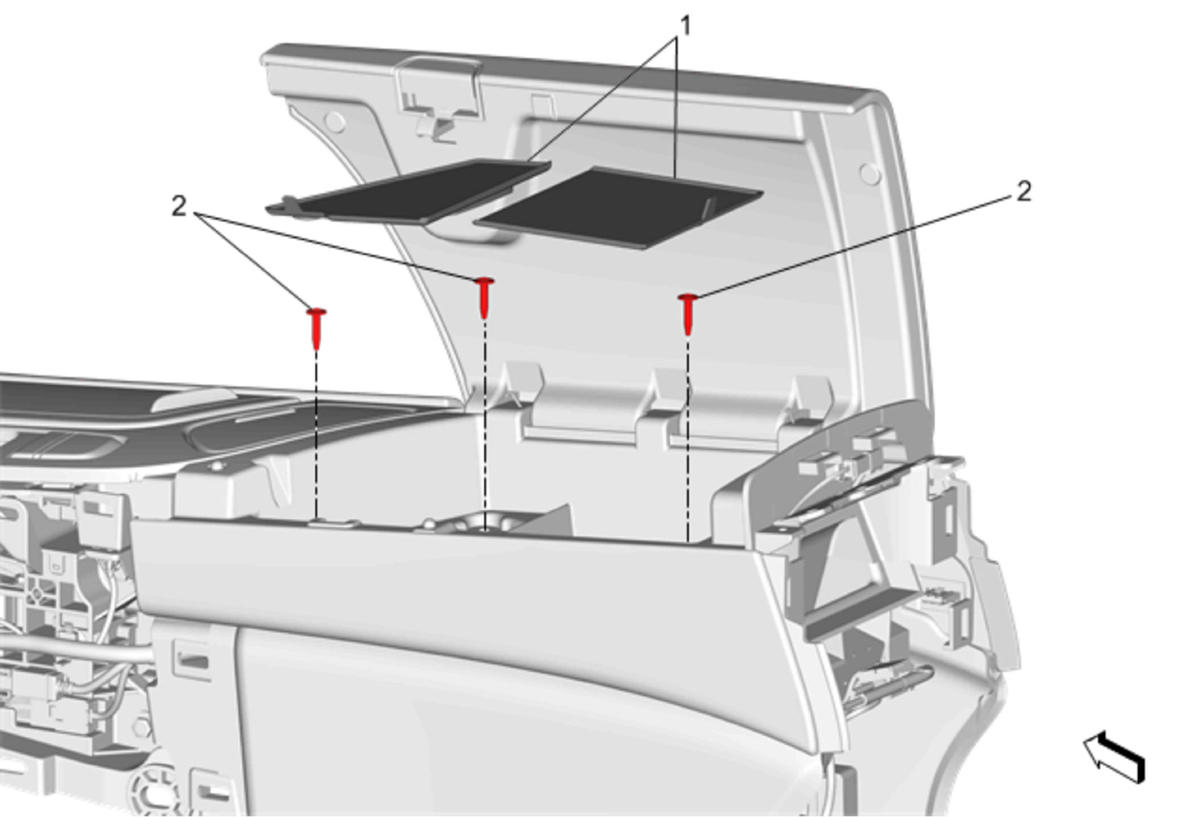

  17. Replace the front floor console center compartment liner (1).

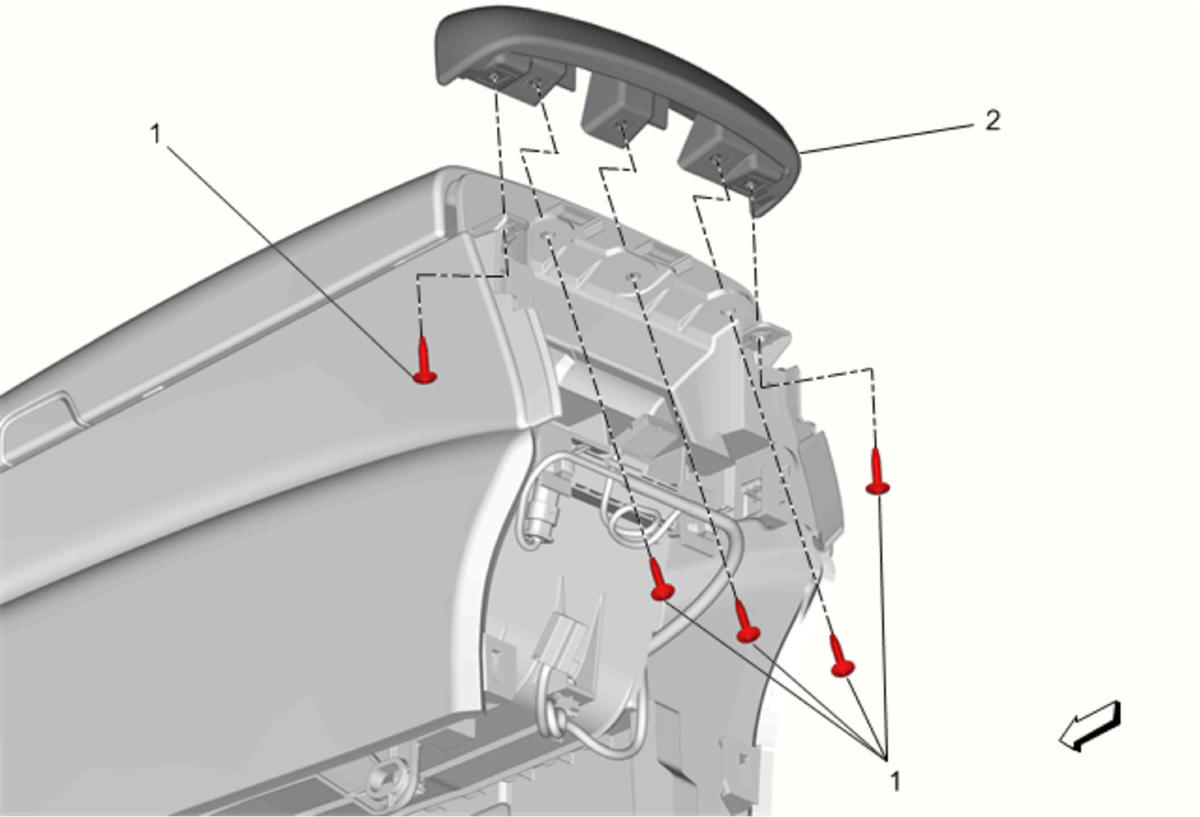

  18. Front Floor Console Armrest Hinge Cover (2) - Install
    GM3944250Courtesy of GENERAL MOTORS COMPANY
  19. Front Floor Console Trim Plate Bolt (1) - Install and tighten 2.5 N.m (22 lb in) [5x]

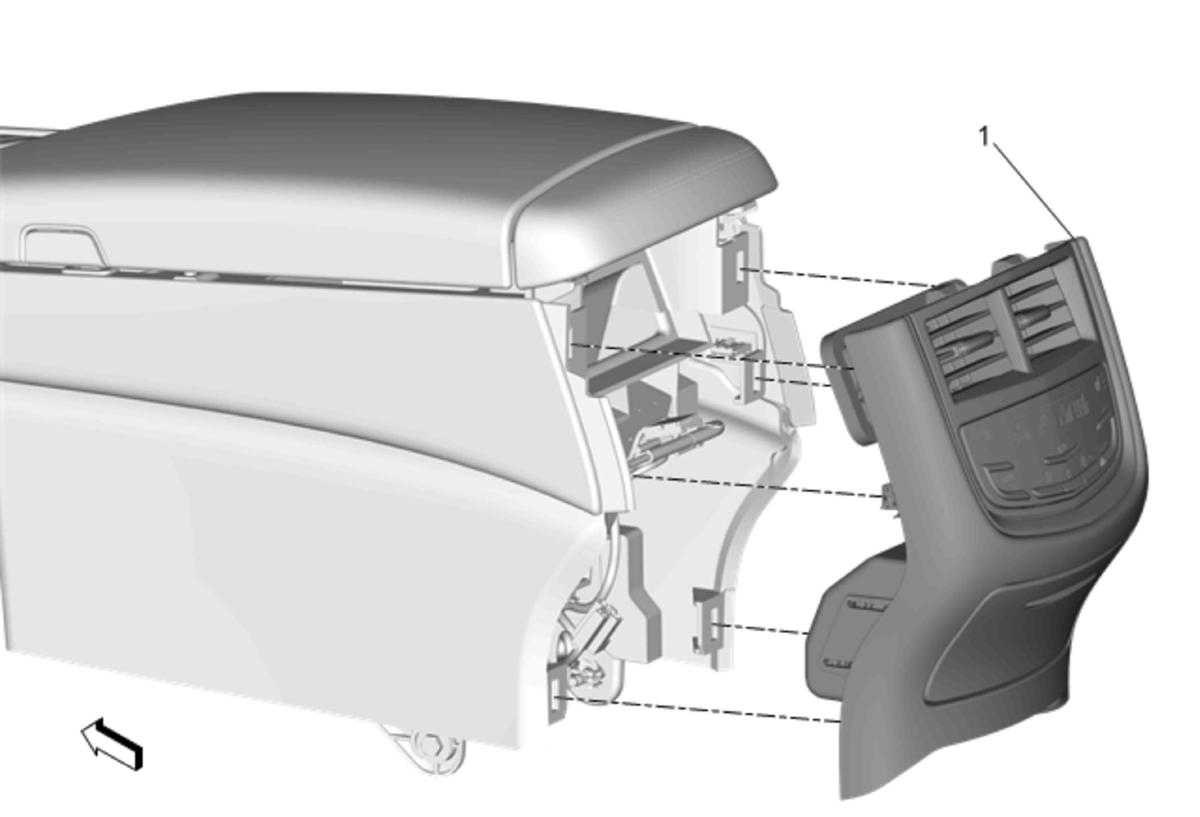

  20. Front Floor Console Rear Trim Panel (1) - Install
    GM3944184Courtesy of GENERAL MOTORS COMPANY
  21. Connect all electrical connectors.
  22. Transmission Control Lever Knob Replacement - Install
  23. Front Floor Console Replacement  - Install
  24. Instrument Panel Lower Center Trim Panel Replacement (Right Side) Instrument Panel Lower Center Trim Panel Replacement (Left Side)  - Left Side - Install
