Removal Procedure

  1. Remove the front floor console armrest hinge cover. Refer to Front Floor Console Armrest Hinge Cover Replacement .

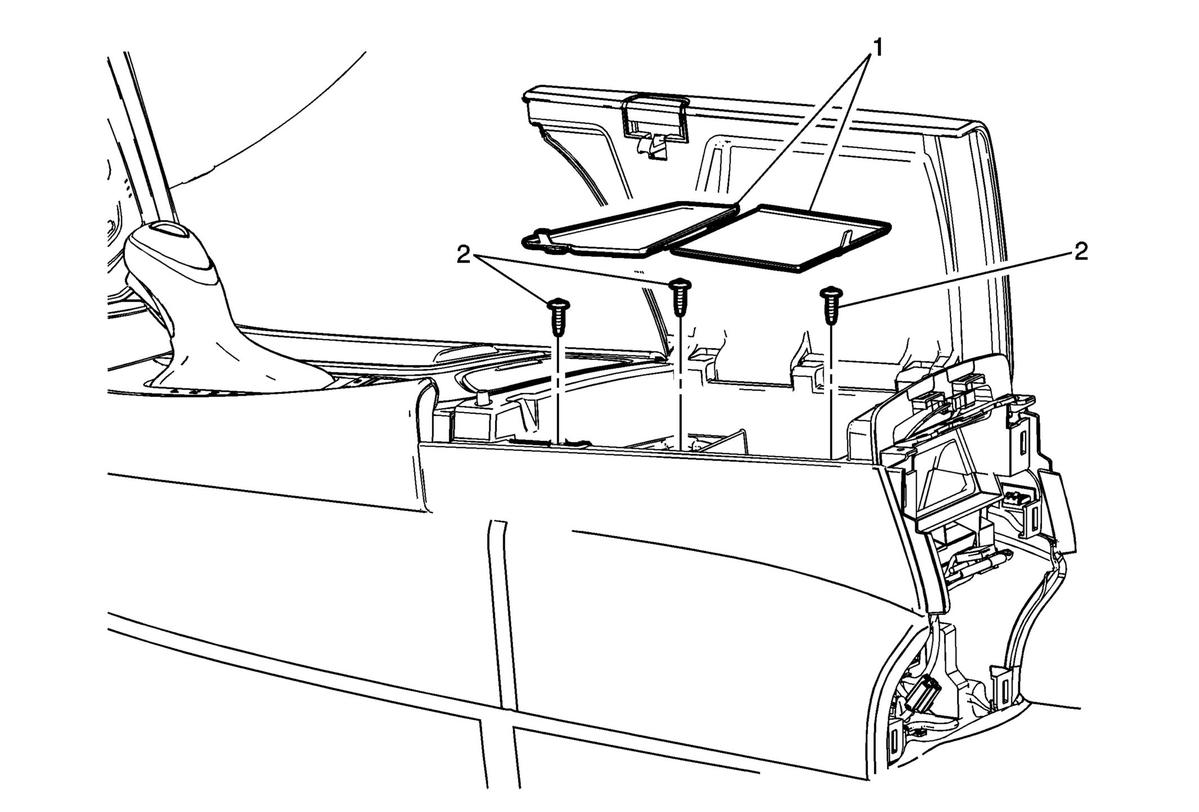

  2. Open the compartment and remove the front floor console center compartment liner (1) to access the front floor console trim plate bolt (2).
    GM3457434Courtesy of GENERAL MOTORS COMPANY

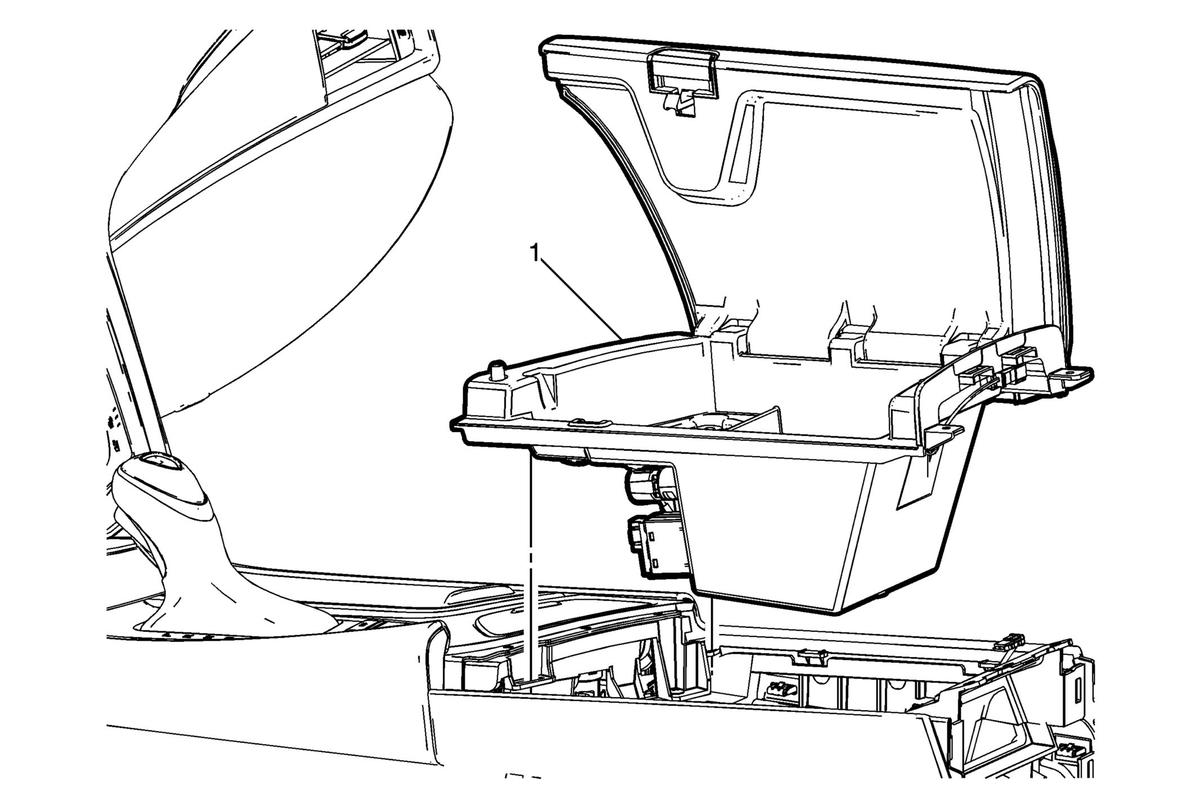

  3. Remove the front floor console compartment (1) from the vehicle.
    GM3457436Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect all electrical connectors.
  5. Transfer components as necessary.
