Front Floor Console Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

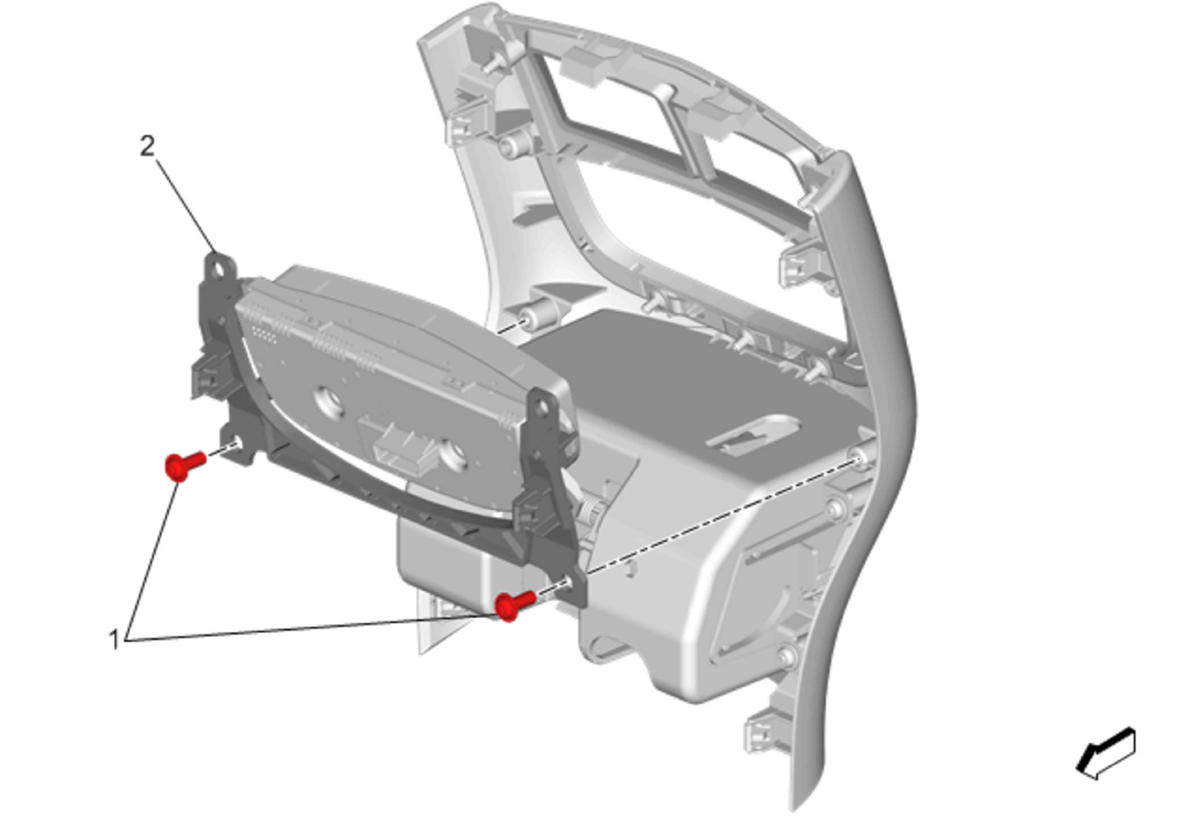

Callout	Component Name
Preliminary Procedure  Front Floor Console Rear Air Outlet Replacement
1	Front Floor Console Rear Compartment Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Front Floor Console Bracket Procedure  Transfer components as necessary.
