Installation Procedure

  1. When replacing the front floor console armrest, transfer all necessary components.

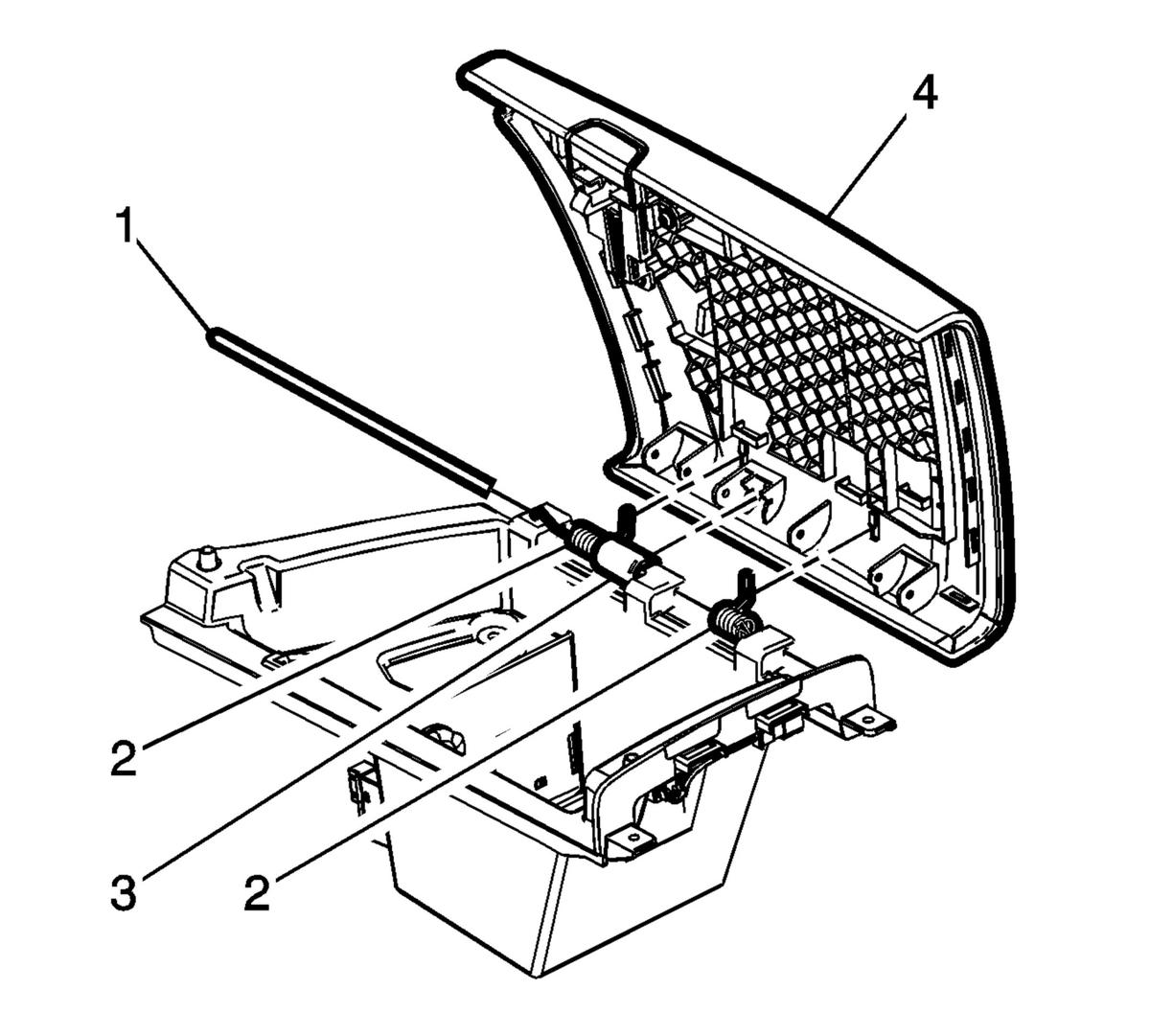

  2. Install the front floor console armrest hinge spring (2) and the front floor console armrest dampener (3) to the front floor console armrest (4).
    GM3463119Courtesy of GENERAL MOTORS COMPANY
  3. Install the front floor console armrest hinge pin (1).

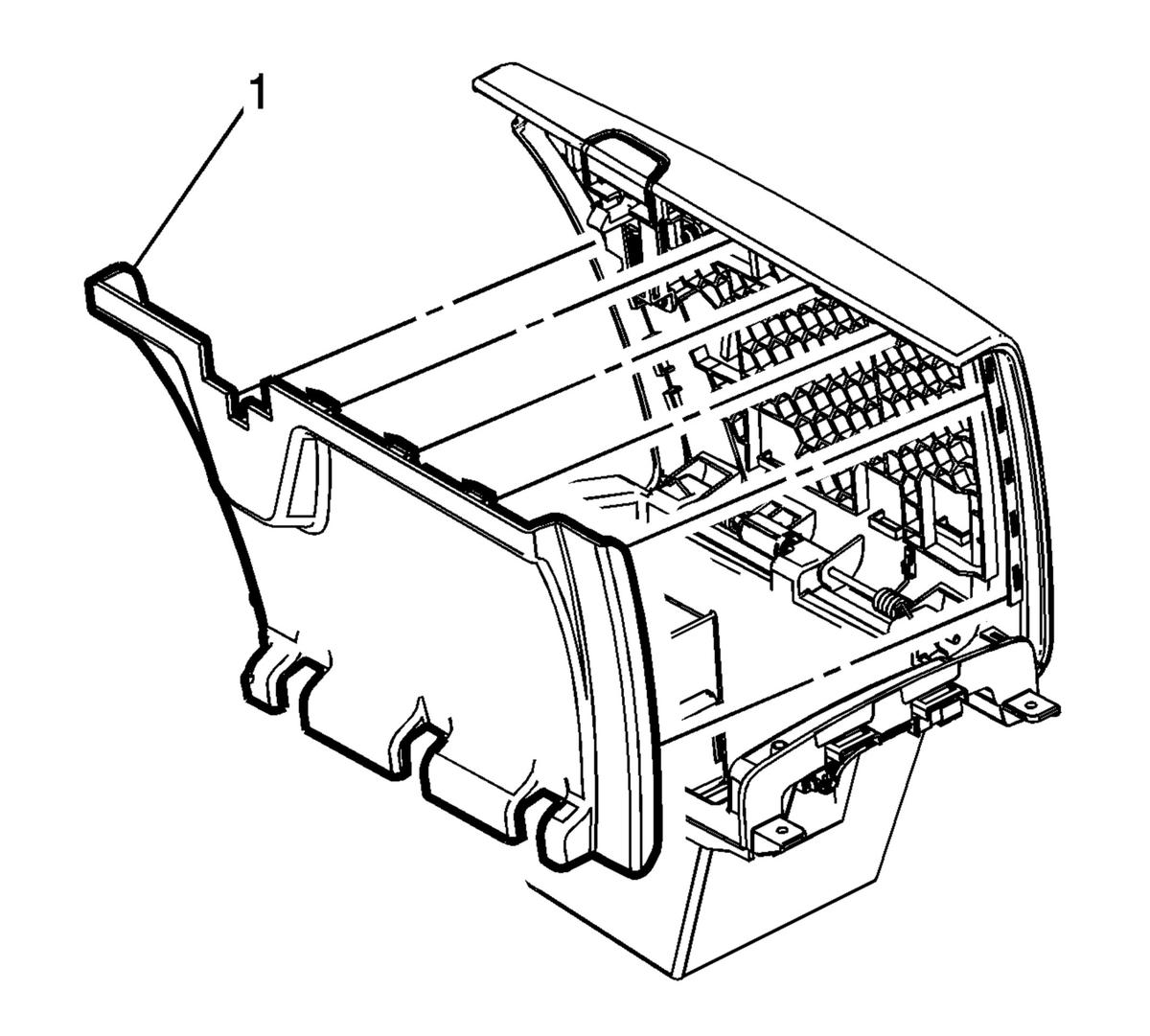

  4. Install the front floor console armrest hinge (1) to the armrest assembly.
    GM3463118Courtesy of GENERAL MOTORS COMPANY
  5. Install the front floor console compartment. Refer to Front Floor Console Compartment Replacement .
