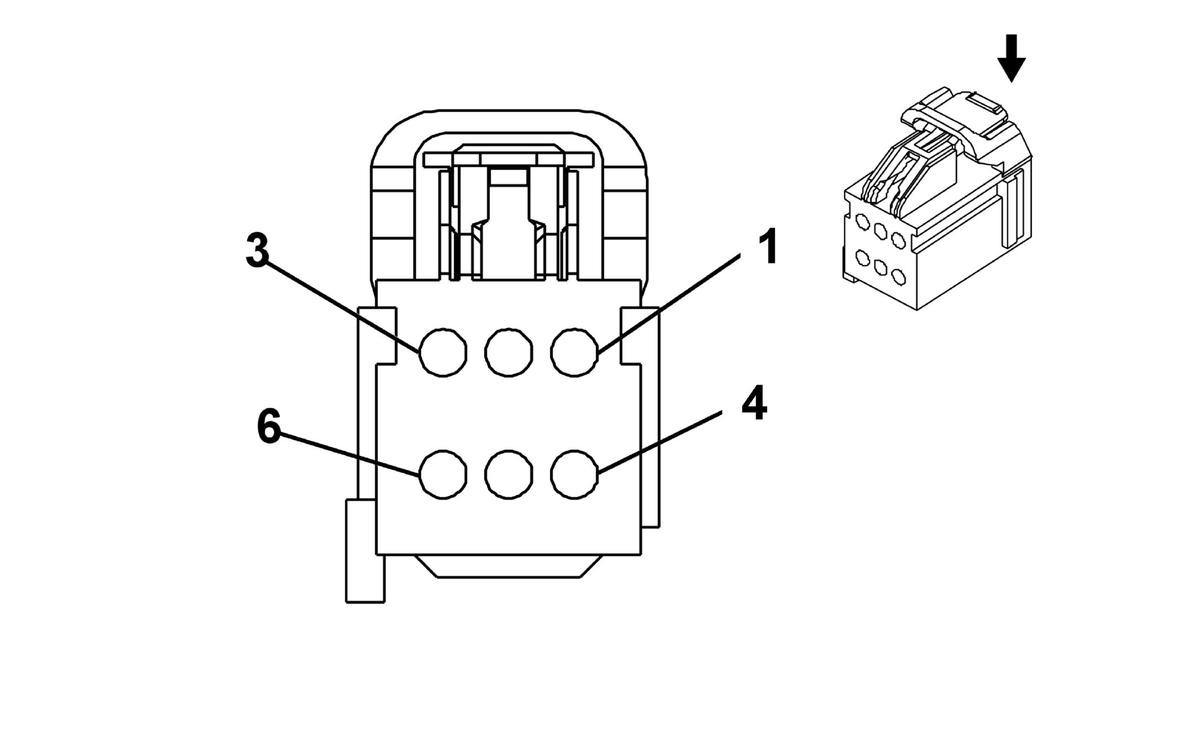

E42L Tail Lamp Assembly - Left (TVN)
WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 7283-4016-60
- Service Connector: 19332517
- Description: 6-Way F 1.5 YESC Kaizen Series (GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT/GY |
709 |
Left Park Lamp Control |
I |
TVN |
| 2 |
0.5 |
VT/WH |
5065 |
Stop Lamp Relay Coil Control |
I |
TVN |
| 3 |
0.75 |
BU/WH |
1334 |
Left Rear Turn Signal Lamp Control |
I |
TVN |
| 4 |
0.5 |
WH/VT |
6567 |
Rear Turn Lamp Feedback Signal |
I |
TVN |
| 5 |
0.75 |
BK |
2550 |
Ground |
I |
TVN |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
