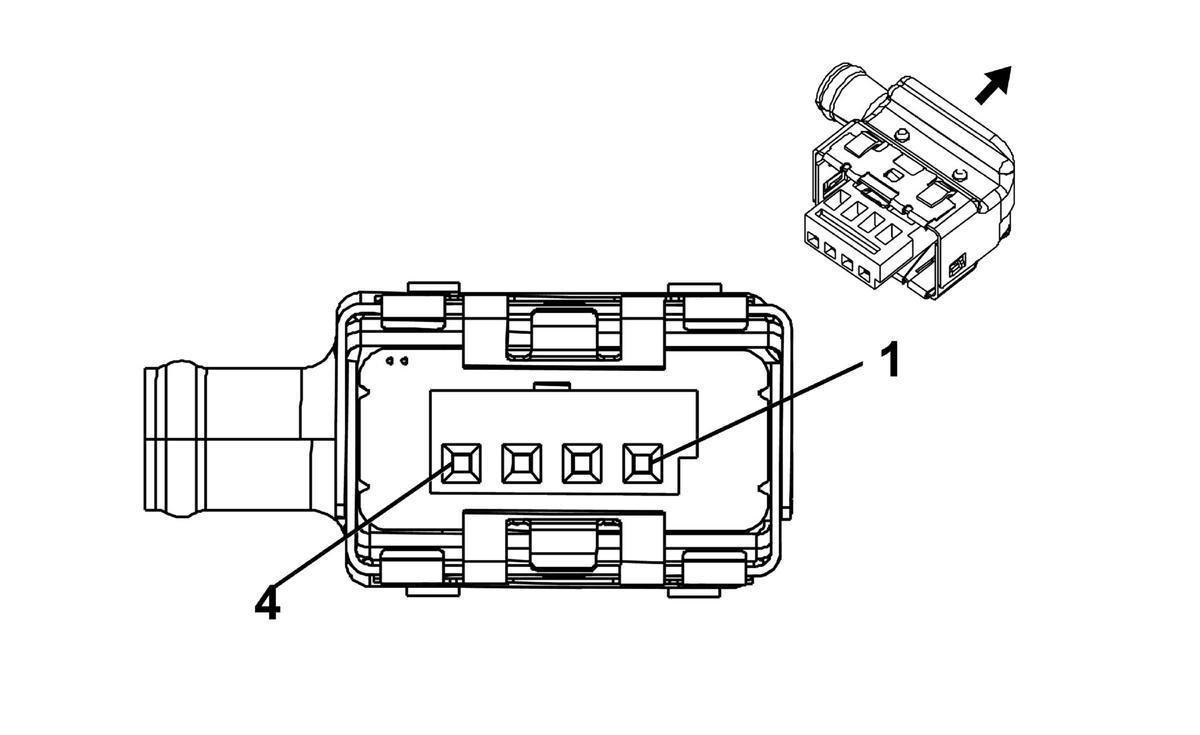

E4H Headlamp - Right Low Beam (T4F)
WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Right Headlamp
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
BK |
650 |
Ground |
I |
- |
| 2 |
- |
BK |
- |
HID High Voltage |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
- |
BK |
312 |
Right Headlamp Low Beam Control |
I |
- |
