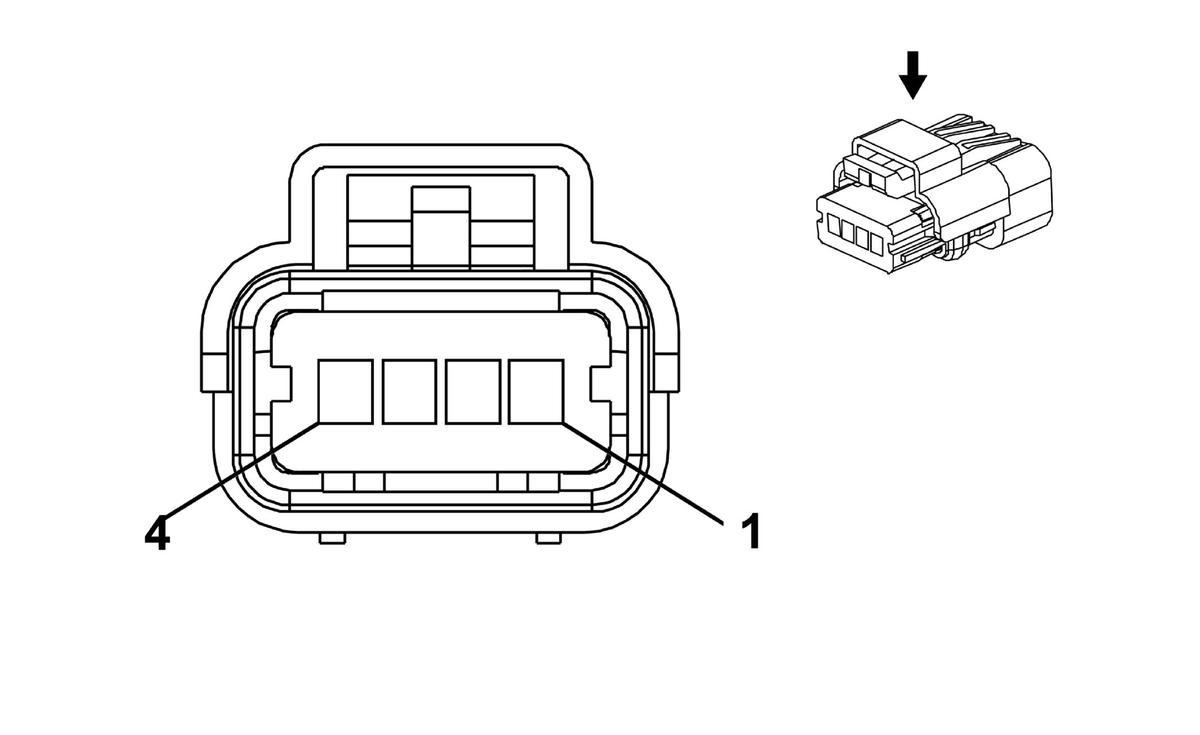

C10 Stop/Start Capacitor X1
WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13593098
- Service Connector: 19330921
- Description: 4-Way F 1.5 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE/BU |
5096 |
Pack Cool Signal |
I |
KL9 |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.5 |
BU/VT |
5094 |
Module Temperature Signal |
I |
KL9 |
| 4 |
0.5 |
BK/BU |
5095 |
Module Temperature Low Reference 1 |
I |
KL9 |
