B81 Park/Neutral Position Switch
WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

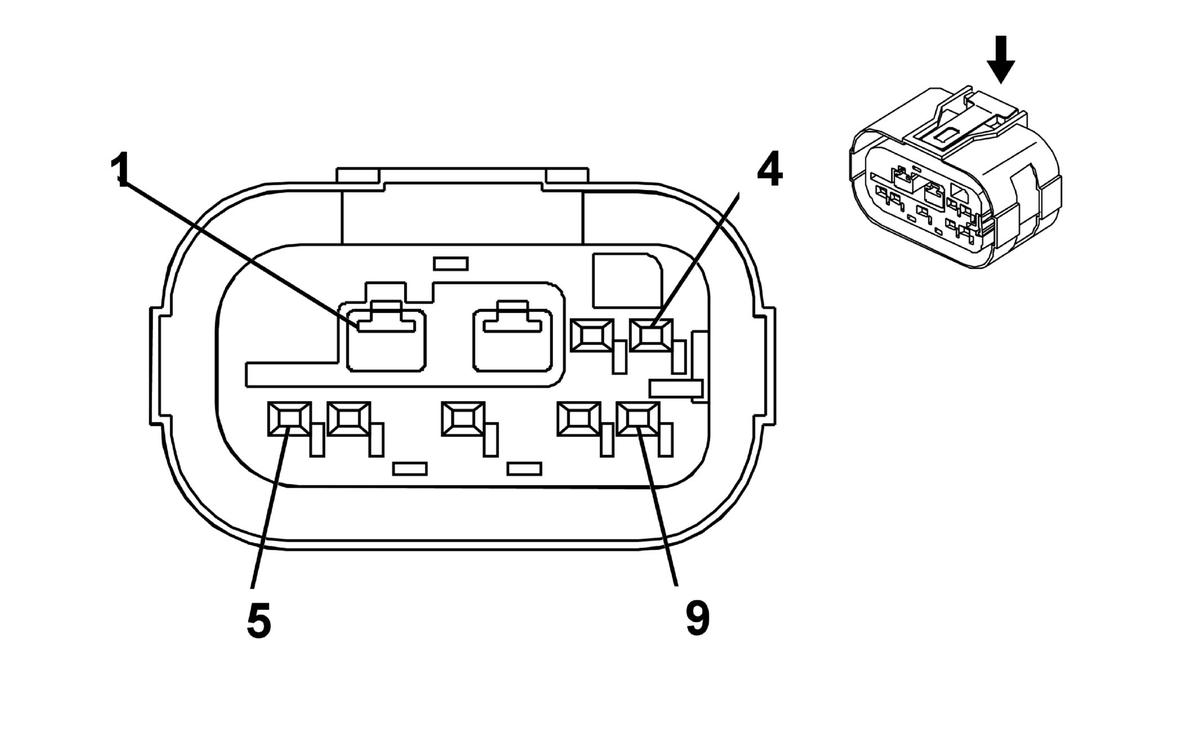

Connector Part Information
- Harness Type: Engine
- OEM Connector: 13581776
- Service Connector: 19301826
- Description: 9-Way F 0.64, 090 Series, Sealed (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
19300448 |
J-35616-64B (LT BU) |
J-38125-553 |
8100-3456 |
Sumitomo 26 |
K |
K |
| II |
19300449 |
J-35616-18 (BK) |
J-38125-552 |
7116-4025 |
Yazaki 11 |
E |
1 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN/WH |
5007 |
Reverse Switch Signal |
II |
MGG |
| 2 |
0.5 |
BK/WH |
451 |
Signal Ground |
II |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.5 |
WH/GY |
1786 |
Transmission Park/Neutral Signal 1 |
I |
LF3 |
| 5 |
0.5 |
BK/WH |
451 |
Signal Ground |
I |
- |
| 6 |
0.5 |
GN |
275 |
Park Neutral Position Switch Park Signal |
I |
MGG |
| 7 |
0.5 |
GY/BN |
6388 |
Transmission High Side Driver 2 Signal |
I |
MGG |
| 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.5 |
WH/GY |
434 |
Neutral Safety Switch Signal |
I |
MGG |
