B260 Rear Differential Oil Pressure/Temperature Sensor (G96)
WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

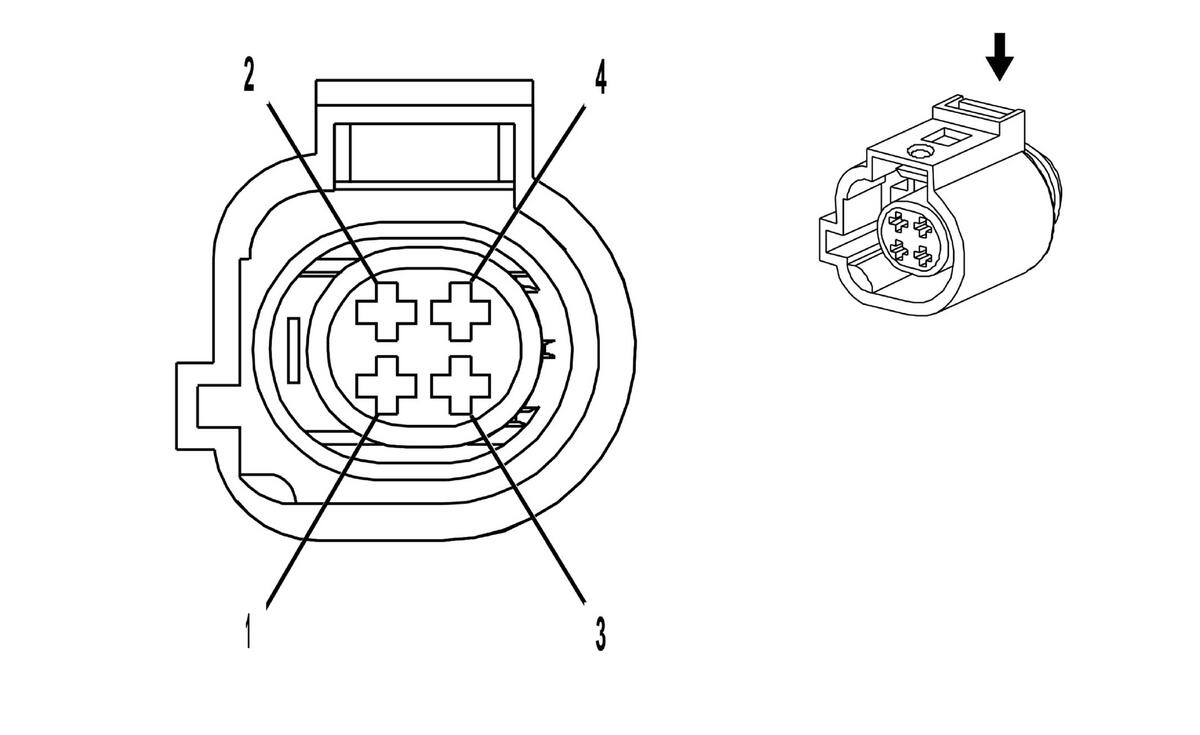

Connector Part Information
- Harness Type: Rear Axle
- OEM Connector: 42129500
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F Sealed (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
RD |
924 |
Rear Differential Oil Temperature Sensor |
I |
- |
| 2 |
0.75 |
BK |
926 |
Low Reference |
I |
- |
| 3 |
0.75 |
WH |
923 |
5 Volt reference |
I |
- |
| 4 |
0.75 |
BU |
925 |
Rear Differential Oil Pressure Sensor |
I |
- |
