B108 Air Quality Sensor
WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

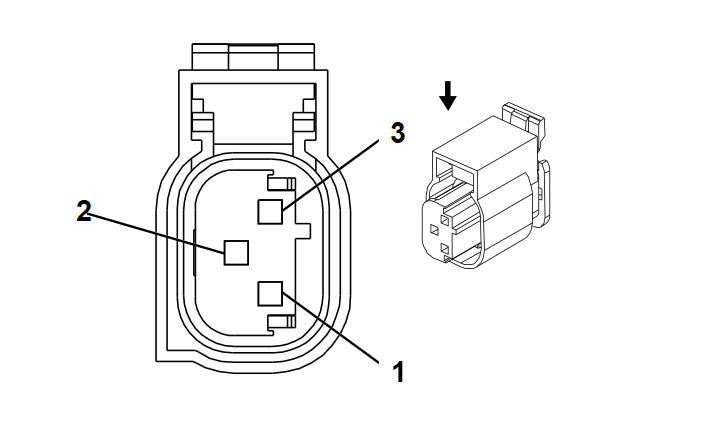

Connector Part Information
- Harness Type: Body
- OEM Connector: 9133087
- Service Connector: 13584422
- Description: 3-Way F 0.64 Micro-Quadlock Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT/GY |
539 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 2 |
0.35 |
BK |
850 |
Ground |
I |
- |
| 3 |
0.35 |
VT/WH |
5203 |
Air Quality Sensor Signal |
I |
- |
