X416 Rear Fascia Harness to Backup Lamp Assembly Harness (T79)
WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

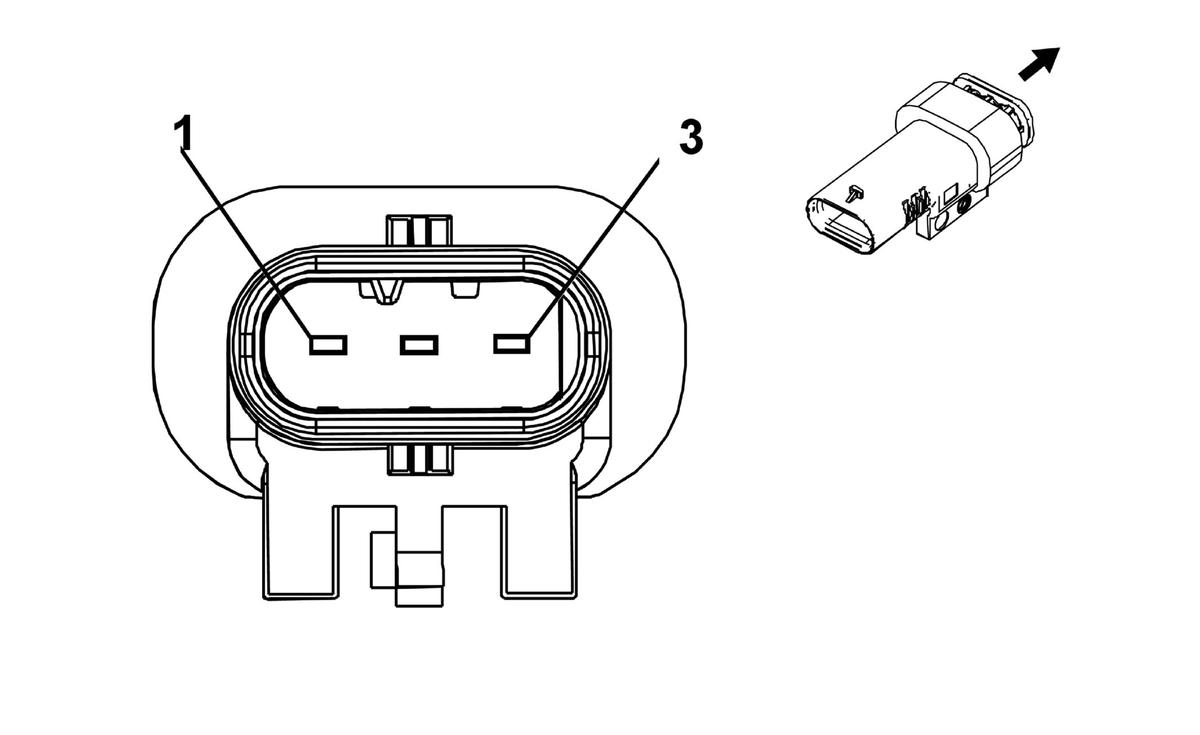

Connector Part Information
- Harness Type: Rear Fascia
- OEM Connector: 13576814
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F 1.2 Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Backup Lamp Assembly
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way M 1.2 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-17 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.75 |
GN/WH |
24 |
I |
T79 |
Backup Lamp Control |
1 |
0.75 |
GN |
24 |
II |
T79 |
| 2 |
0.75 |
BK |
2550 |
I |
- |
Ground |
2 |
0.75 |
BK |
2550 |
II |
- |
| 3 |
0.5 |
YE/GY |
122 |
I |
T79 |
Rear Fog Lamp Control |
3 |
0.5 |
YE |
122 |
II |
T79 |
