X325 Body Harness to Floor Console Harness

WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY	Courtesy of GENERAL MOTORS COMPANY

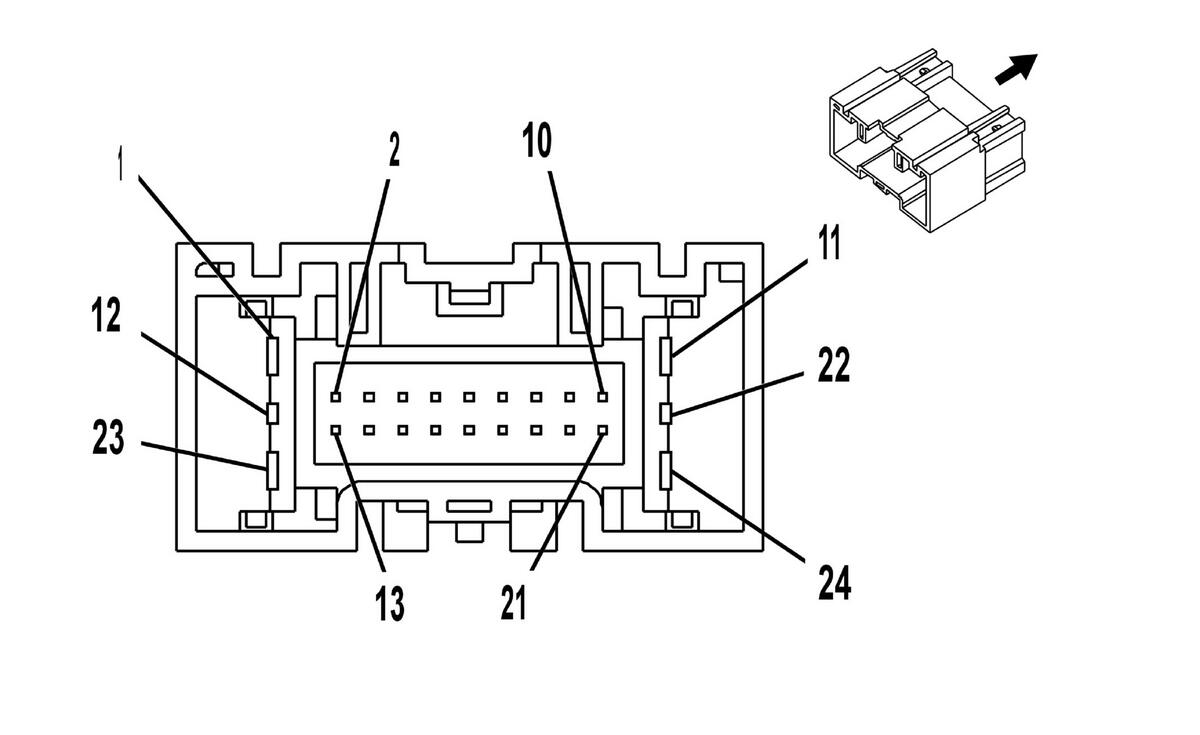

Connector Part Information Harness Type: Body OEM Connector: 13581061 Service Connector: 13581061 Description: 24-Way F 0.64, 1.5, 2.8 Series (BK)	Connector Part Information Harness Type: Floor Console OEM Connector: 13581063 Service Connector: Service by Harness - See Part Catalog Description: 24-Way M 0.64, 1.5, 2.8 Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575839	J-35616-35 (VT)	J-38125-11A	7116-4110-02	Yazaki 9	E	C
II	13575839	J-35616-35 (VT)	J-38125-11A	7116-4111-02	Yazaki 9	E	A
III	13575850	J-35616-14 (GN)	J-38125-557	Not Available	Not Available	Not Available	Not Available
IV	13578891	J-35616-2A (GY)	J-38125-11A	Not Available	Not Available	Not Available	Not Available
V	19300660	J-35616-64B (LT BU)	J-38125-12A	Not Available	Not Available	Not Available	Not Available
VI	Not Required	J-35616-3 (GY)	No Tool Required	Not Required	Not Required	Not Required	Not Required
VII	Not Required	J-35616-5 (PU)	No Tool Required	Not Required	Not Required	Not Required	Not Required
VIII	Not Required	J-35616-65B (LT BU)	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.75 0.75	BK BN	5683 686	II II	KI6 KI7	120 V AC Phase A 230 V AC Phase A	1	0.75 0.75	BK BN	5683 686	VII VII	KI6 KI7
2	0.5	BARE	514	V	-	Low Reference	2	0.5	BARE	514	VIII	-
3	0.35	GY/VT	755	V	-	RAP Relay Coil Control	3	0.35	GY/VT	755	VIII	-
4	0.35	WH/VT	4108	V	-	Driver Mode Switch Signal	4	0.13	WH	4108	VIII	-
5	0.35	GY	4109	V	-	Driver Mode Switch 5V Reference	5	0.13	GY	4109	VIII	-
6	0.35	BN/BK	3552	V	-	Passive Start Interior Antenna 1 Signal Hi	6	0.5	BN/BK	3552	VIII	-
7	0.35	WH	3553	V	-	Passive Start Interior Antenna 1 Signal Lo	7	0.5	WH	3553	VIII	-
8	0.35	GN	5525	V	-	Tap Up/Tap Down Enable Signal	8	0.35	GN	5525	VIII	-
9	0.35	GY/GN	4083	V	KI6/KI7	RAP Relay 2 Coil Control	9	0.35	GY/GN	4083	VIII	-
10	0.35	GY/GN	4083	V	-	RAP Relay 2 Coil Control	10	0.35	GY/GN	4083	VIII	-
11	0.5	BK	2250	I	-	Ground	11	0.5	BK	2250	VII	-
12	0.75 0.75	RD BU	5684 6865	III III	KI6 KI7	120 V AC Phase B 230 V AC Phase B	12	0.75 0.75	RD BU	5684 6865	VI VI	KI6 KI7
13	0.35	BU/WH	6807	V	-	DC To AC Inverter Control	13	0.5	BU/WH	6807	VIII	-
14	0.35	WH/VT	5905	V	-	Key Capture/Column Lock Shift Position Signal	14	0.35	WH/VT	5905	VIII	-
15	0.35	GN/BU	6133	V	-	Local Interconnect Network Serial Data Bus 2	15	0.13	GN	6133	VIII	-
16 - 19	-	-	-	-	-	Not Occupied	16 - 19	-	-	-	-	-
20	0.35	BU	3554	V	-	Passive Start Interior Antenna 2 Signal Hi	20	0.5	BU	3554	VIII	-
21	0.35	GY/BK	3555	V	-	Passive Start Interior Antenna 2 Signal Lo	21	0.5	GY/BK	3555	VIII	-
22	0.5	YE	6817	IV	-	LED Backlight Dimming Control	22	0.35	YE	6817	VI	-
23	0.35	VT/BK	7553	I	-	Park Lock Solenoid Control	23	0.35	VT/BK	7553	VII	-
24	0.5	VT/GY	539	I	-	Run/Crank Ignition 1 Voltage	24	0.35	VT/GY	539	VII	-
