T2RR Antenna - Roof Rear X3 ((IOS/IOT-UE1/UI3/MAW)/(MAW-IOT))
WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

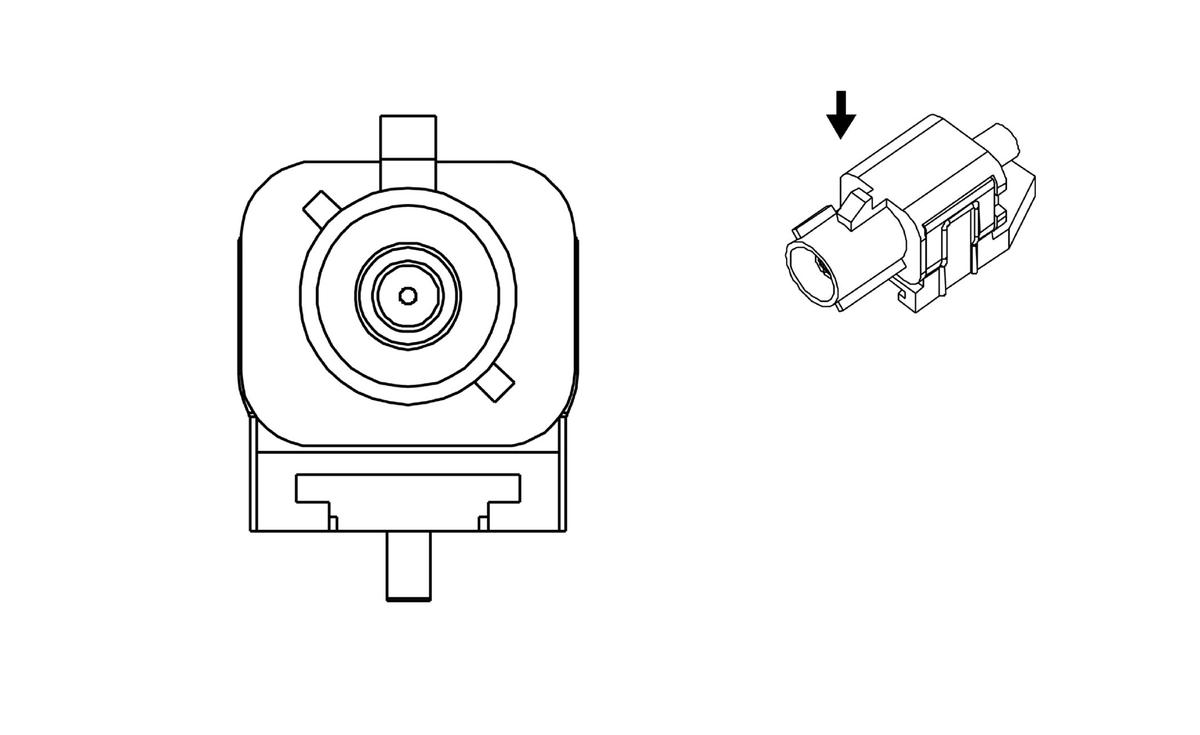

Connector Part Information
- Harness Type: Headliner COAX
- OEM Connector: 13584913
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1-Way M Coax Type
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| - |
- |
Coax |
- |
(GPS only) Coaxial Antenna GPS Signal |
I |
- |
