X111 Front Fascia Harness to Left Multifunction Lamp Harness
WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

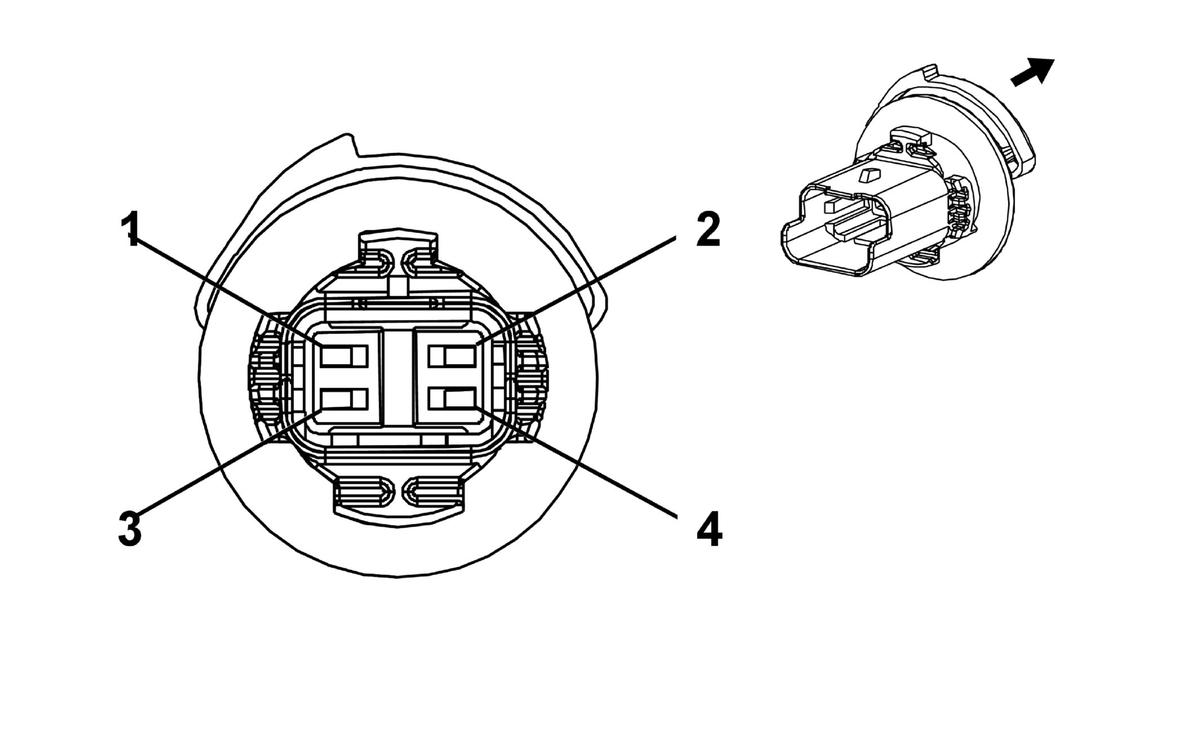

Connector Part Information
- Harness Type: Front Fascia
- OEM Connector: SICFHPE04BK
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 1.5 Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Left Multifunction Lamp
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way M Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| III |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT/BK |
6568 |
I |
- |
Front Turn Lamp Feedback Signal |
1 |
0.5 |
BK |
6568 |
III |
- |
| 2 |
0.5 |
BK |
550 |
I |
- |
Ground |
2 |
0.5 |
BK |
550 |
III |
- |
| 3 |
0.5 |
BU/WH |
1314 |
I |
- |
Left Front Turn Signal Lamp Control |
3 |
0.5 |
BK |
1314 |
III |
- |
| 4 |
1 |
BN |
4357 |
II |
- |
Left Auxiliary DRL Control |
4 |
0.75 |
BK |
4357 |
III |
- |
