R36D Seat Lumbar Diode - Driver (MMH)
WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

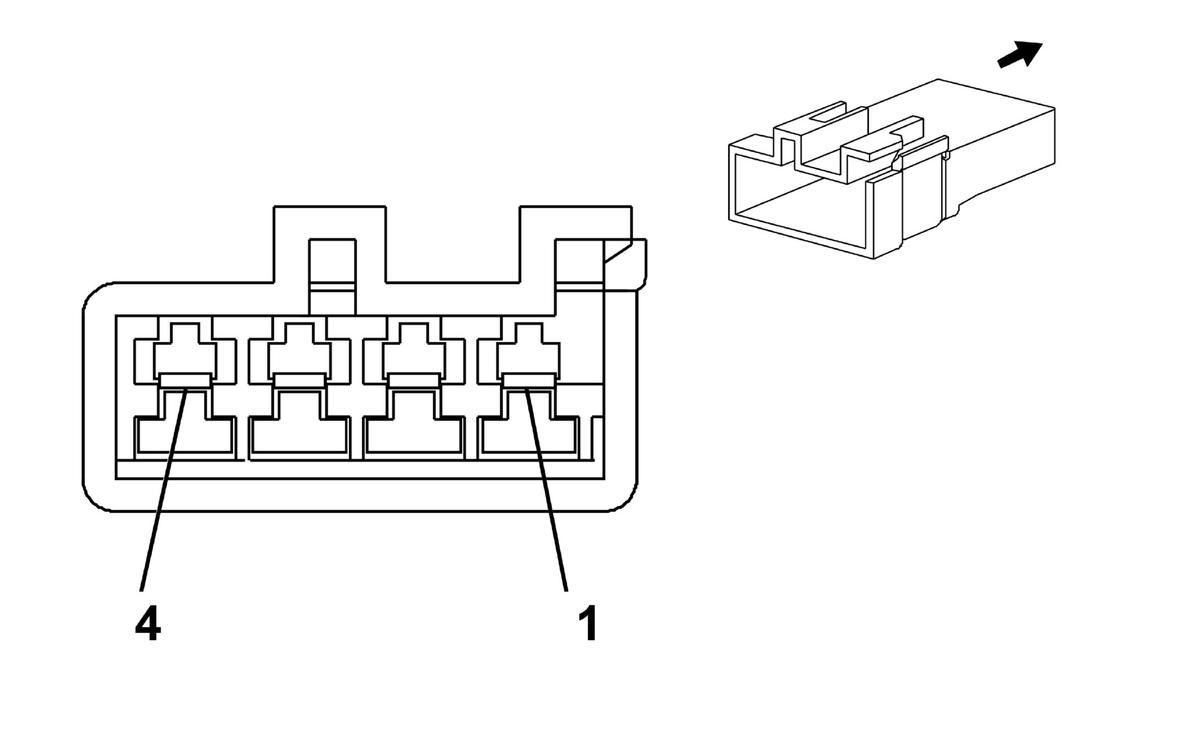

Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 7123-9145-80
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 090 Series (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0 |
VT |
610 |
Driver Power Seat Lumbar Motor Rearward Control |
I |
- |
| 2 |
0 |
YE |
900 |
Driver Lumbar/Bolster Pump Switched Ground |
I |
- |
| 3 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
