Q10D Seat Side Bolster Adjuster Valve Assembly - Driver (AQJ)
WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

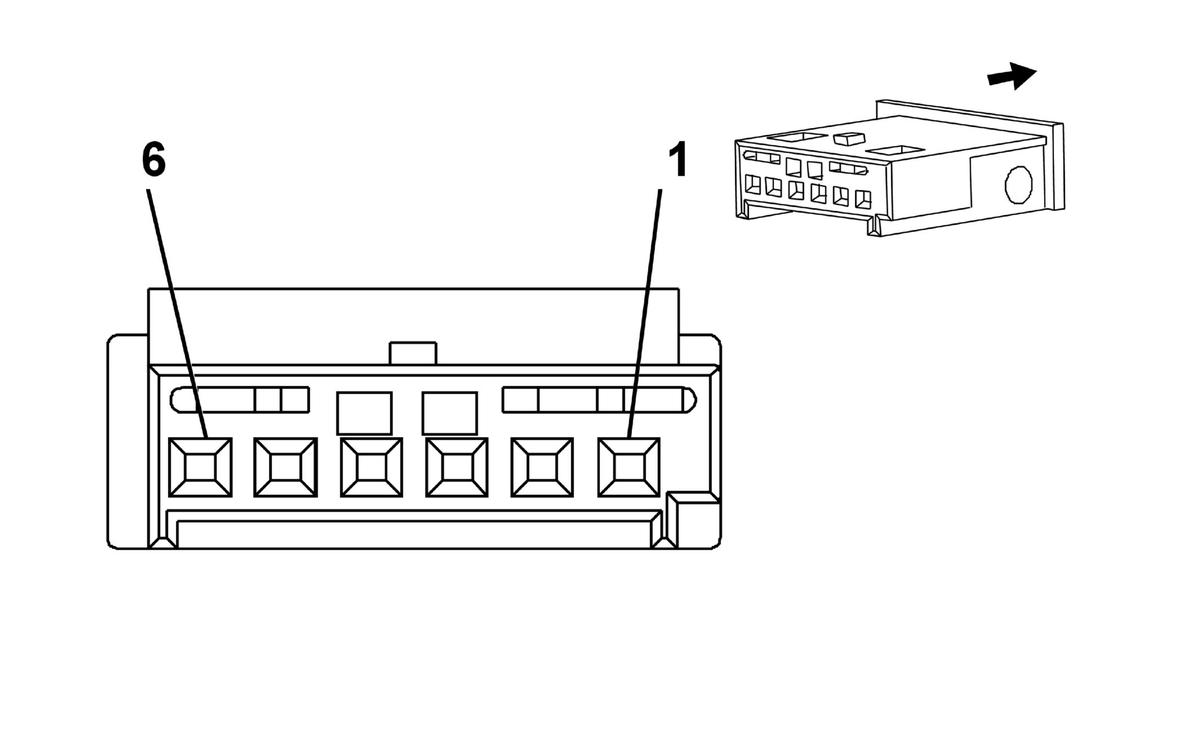

Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 2-1241370-3
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 0.64 Micro-Quadlock Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
WH/GN |
5892 |
Driver Power Seat Bolster Motor In Control |
I |
- |
| 2 |
0.75 |
WH/BN |
5891 |
Driver Power Seat Bolster Motor Out Control |
I |
- |
| 3 |
0.75 |
YE |
900 |
- |
I |
- |
| 4 |
0.75 |
YE |
900 |
- |
I |
- |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.75 |
BN |
4505 |
Driver Lumbar Pump Motor Power |
I |
- |
