Sunroof Harness Routing (C3U)

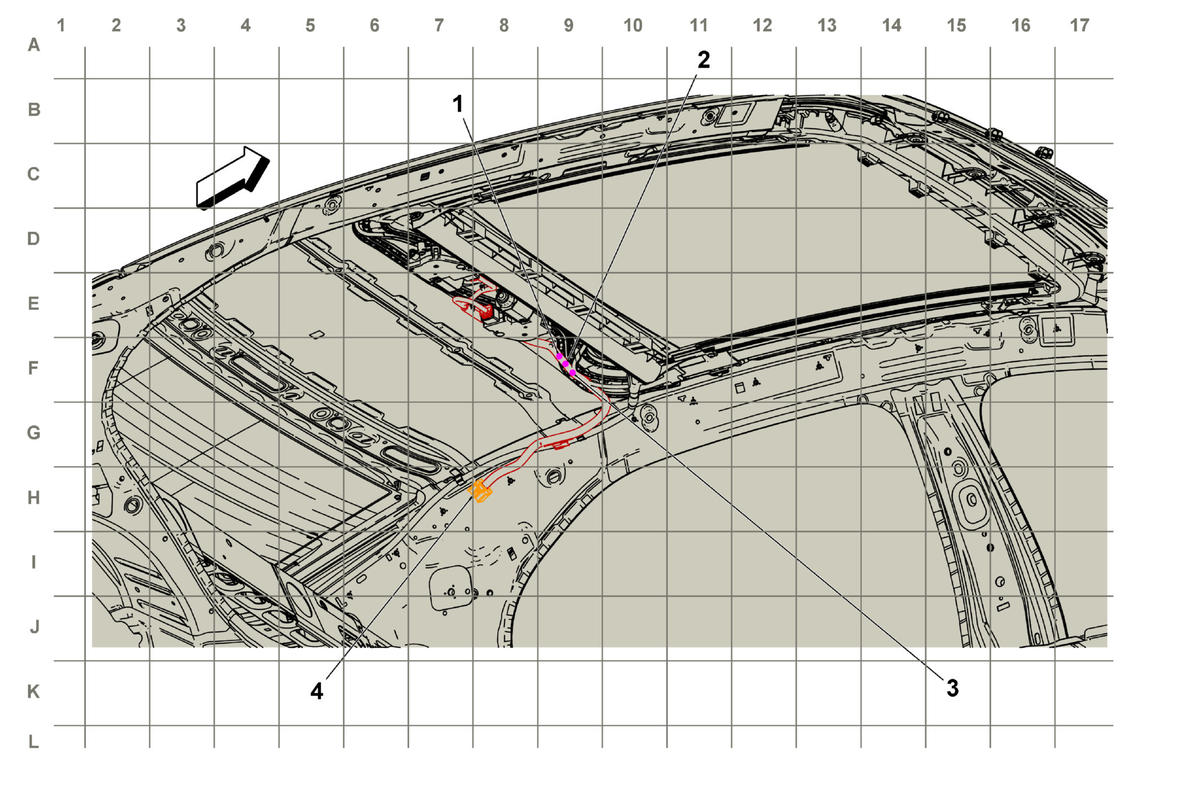

GM4935237Courtesy of GENERAL MOTORS COMPANY
Items
1. J372 Sunroof Harness (C3U)
2. J371 Sunroof Harness (C3U)
3. J370 Sunroof Harness (C3U)
4. X339 Sunroof Harness to Body Harness (10 Cavities) (C3U) X339 Sunroof Harness to Body Harness
