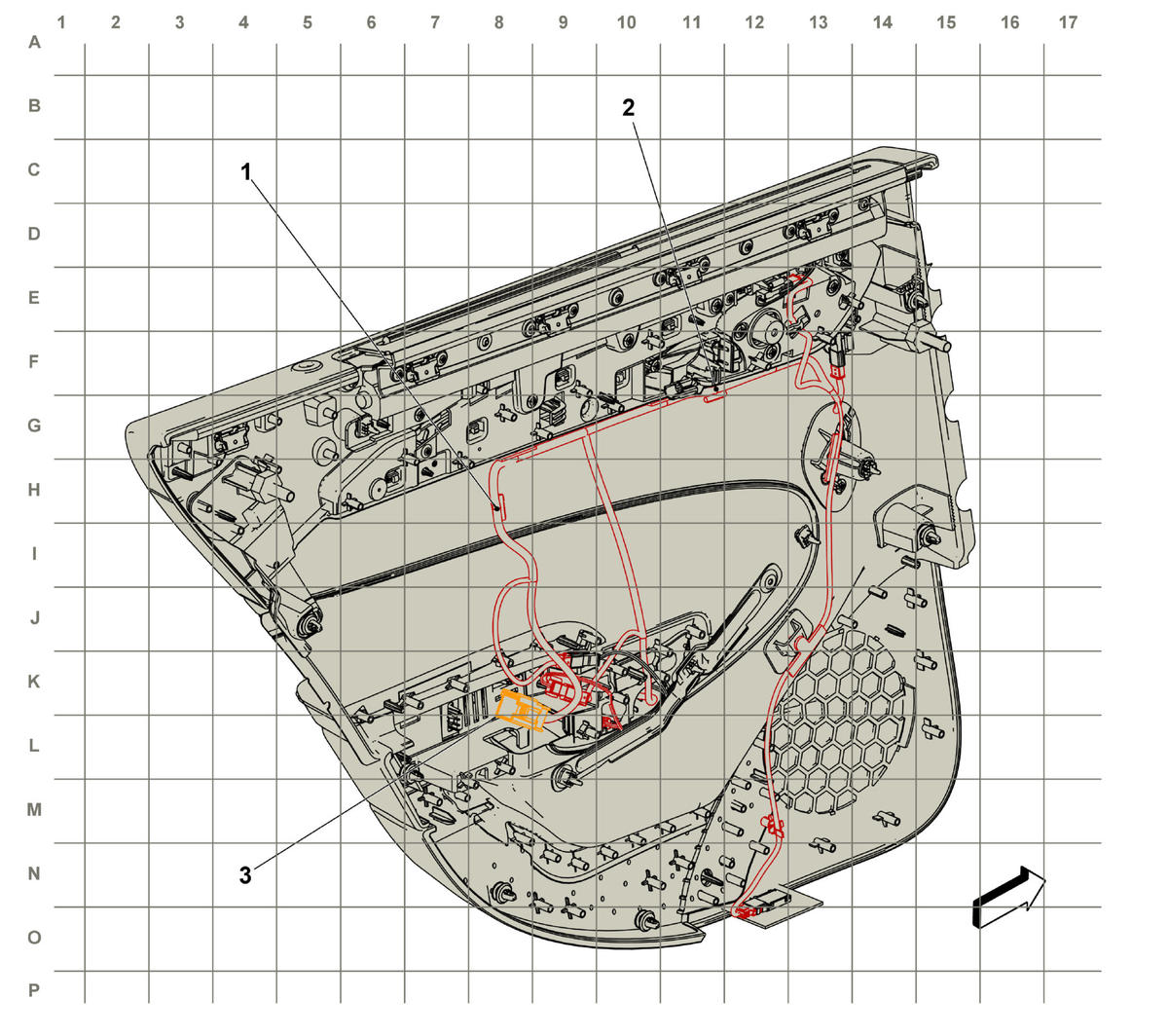

Right Rear Door Trim Harness Routing

GM4935257Courtesy of GENERAL MOTORS COMPANY
Items
1. J806 Right Rear Door Trim Harness
2. J805 Right Rear Door Trim Harness
3. X805 Right Rear Door Harness to Right Rear Door Trim Harness (8 Cavities) X805 Right Rear Door Harness to Right Rear Door Trim Harness
