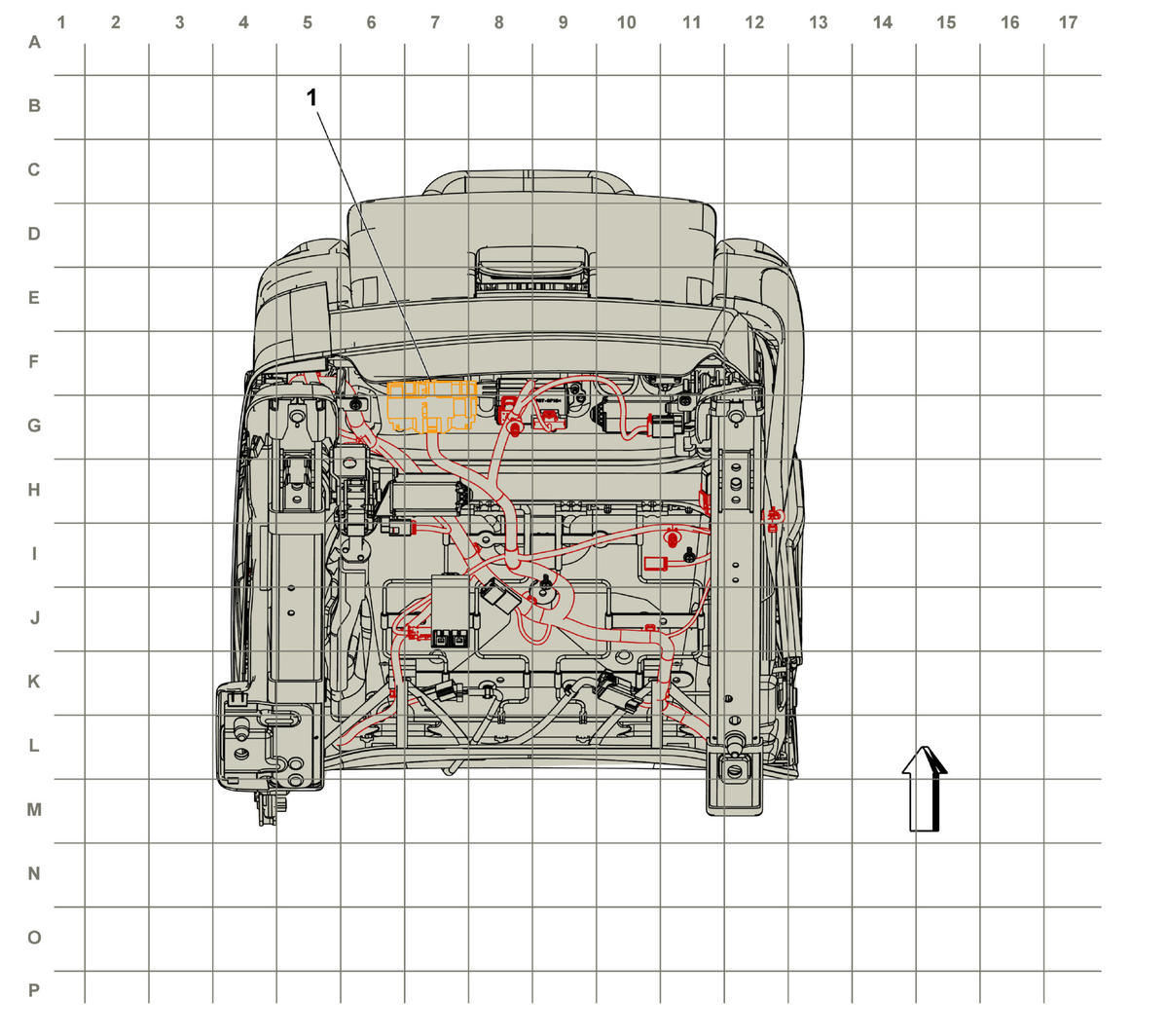

Passenger Seat Harness Routing

GM4935263

Courtesy of GENERAL MOTORS COMPANY

Items
1. X320 Body Harness to Passenger Seat Harness (42 Cavities) X320 Body Harness to Passenger Seat Harness
