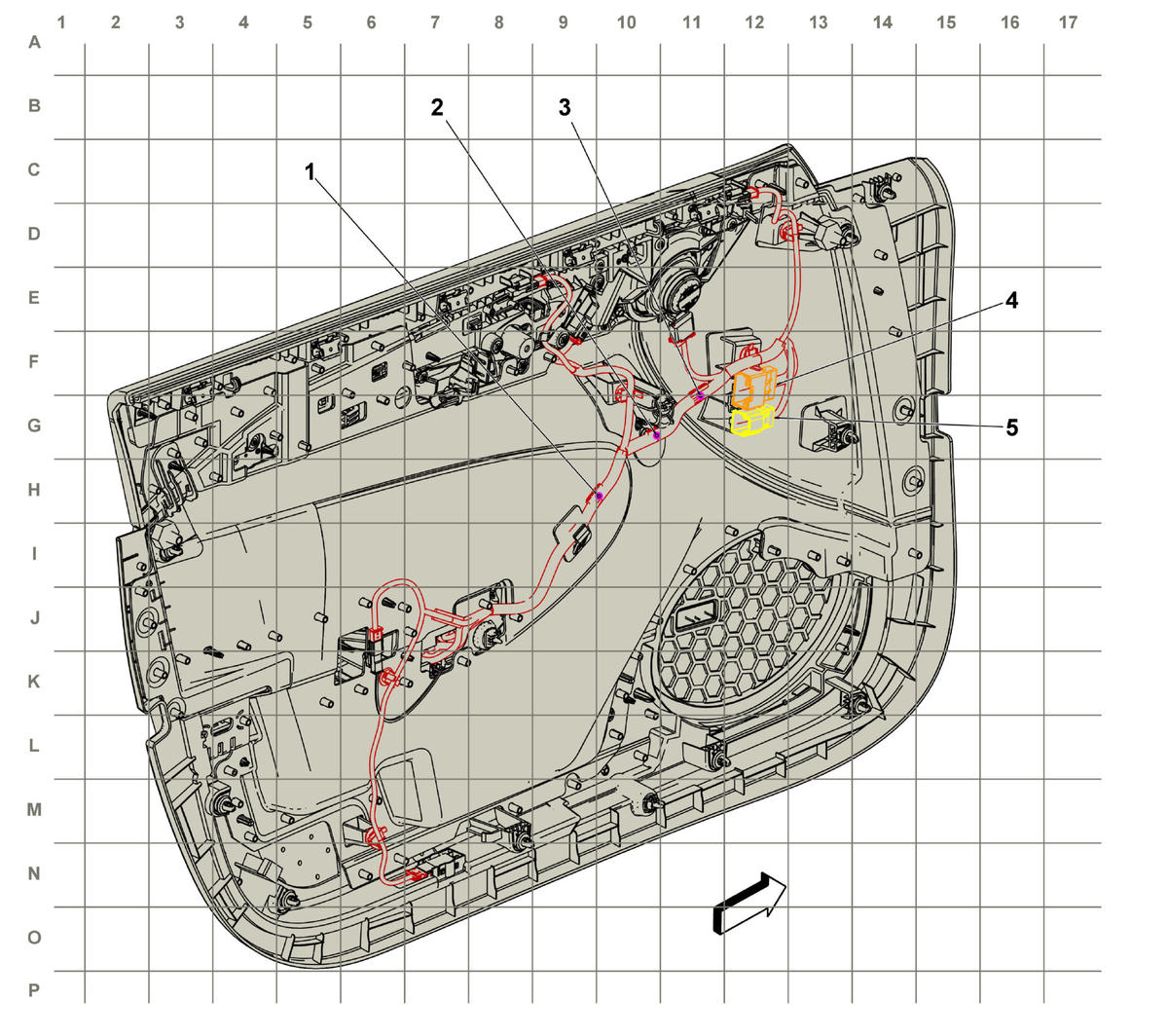

Passenger Door Trim Harness Routing

GM4935251Courtesy of GENERAL MOTORS COMPANY
Items
1. J606 Passenger Door Trim Harness
2. J607 Passenger Door Trim Harness
3. J605 Passenger Door Trim Harness
4. X606 Passenger Door Harness to Passenger Door Trim Harness (20 Cavities) X606 Passenger Door Harness to Passenger Door Trim Harness
5. X605 Passenger Door Harness to Passenger Door Trim Harness (12 Cavities) X605 Passenger Door Harness to Passenger Door Trim Harness
