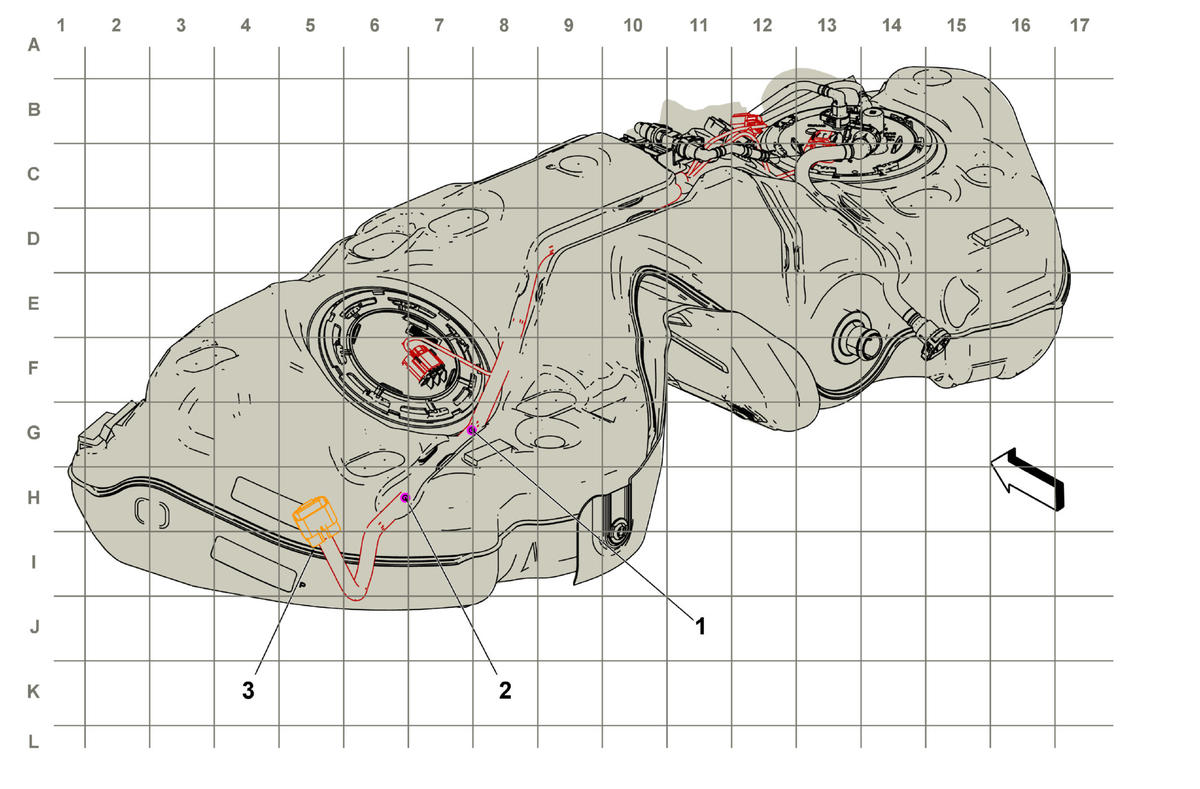

Fuel Tank Harness Routing

GM4935271Courtesy of GENERAL MOTORS COMPANY
Items
1. J375 Fuel Tank Harness
2. J376 Fuel Tank Harness
3. X350 Body Harness to Fuel Tank Harness (12 Cavities) X350 Body Harness to Fuel Tank Harness
