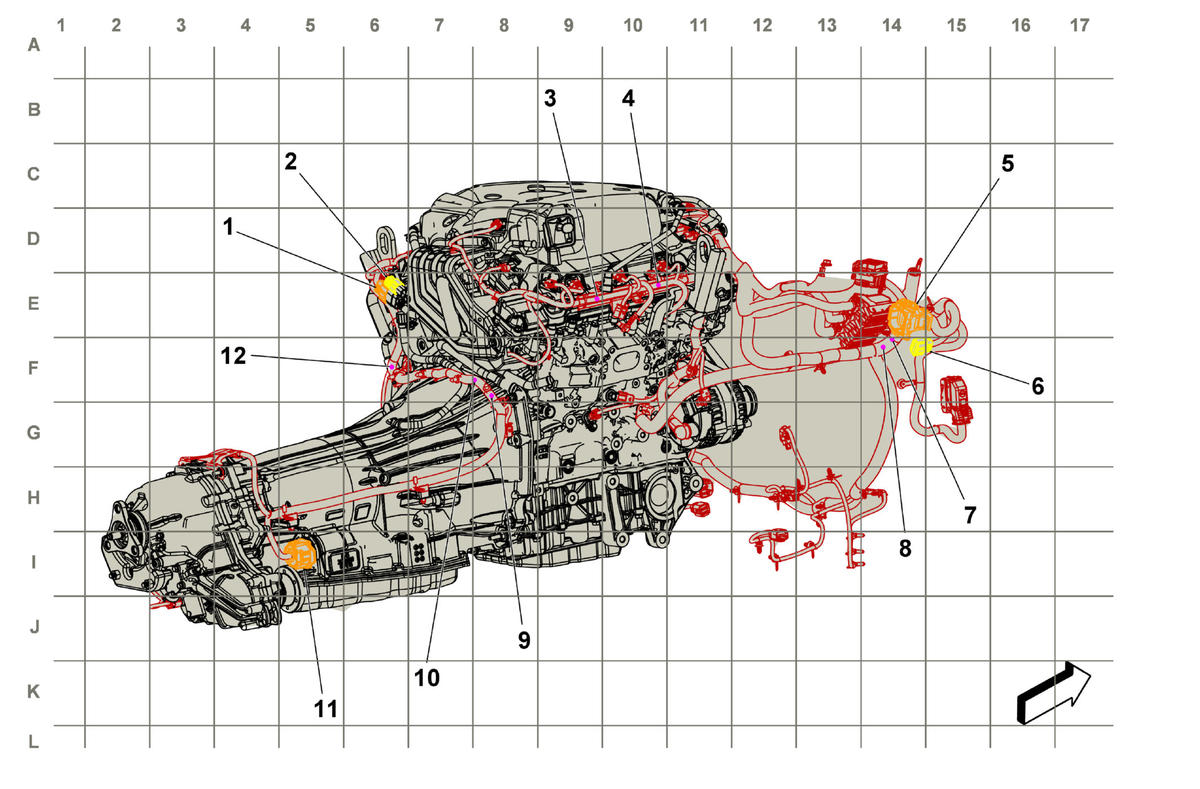

| 1. X161 Engine Harness to Bank 2 Fuel Rail Harness (12 Cavities) X161 Engine Harness to Bank 2 Fuel Rail Harness (LF3/LGX) |
| 2. X160 Engine Harness to Bank 1 Fuel Rail Harness (6 Cavities) X160 Engine Harness to Bank 1 Fuel Rail Harness (LF3/LGX) |
| 3. J137 Engine Harness |
| 4. J132 Engine Harness |
| 5. X150 Body Harness to Engine Harness (54 Cavities) X150 Body Harness to Engine Harness |
| 6. X151 Engine Harness to Body Harness (6 Cavities) X151 Engine Harness to Body Harness (LGX/LTG) |
| 7. J143 Engine Harness |
| 8. J141 Engine Harness |
| 9. J179 Engine Harness (LT4) |
| 10. J178 Engine Harness (LT4) |
| 11. X175 Engine Harness to Transmission Harness (30 Cavities) X175 Engine Harness to Transmission Harness (M5N) |
| 12. J140 Engine Harness |
