Engine Harness Routing - Right Front (LF3)

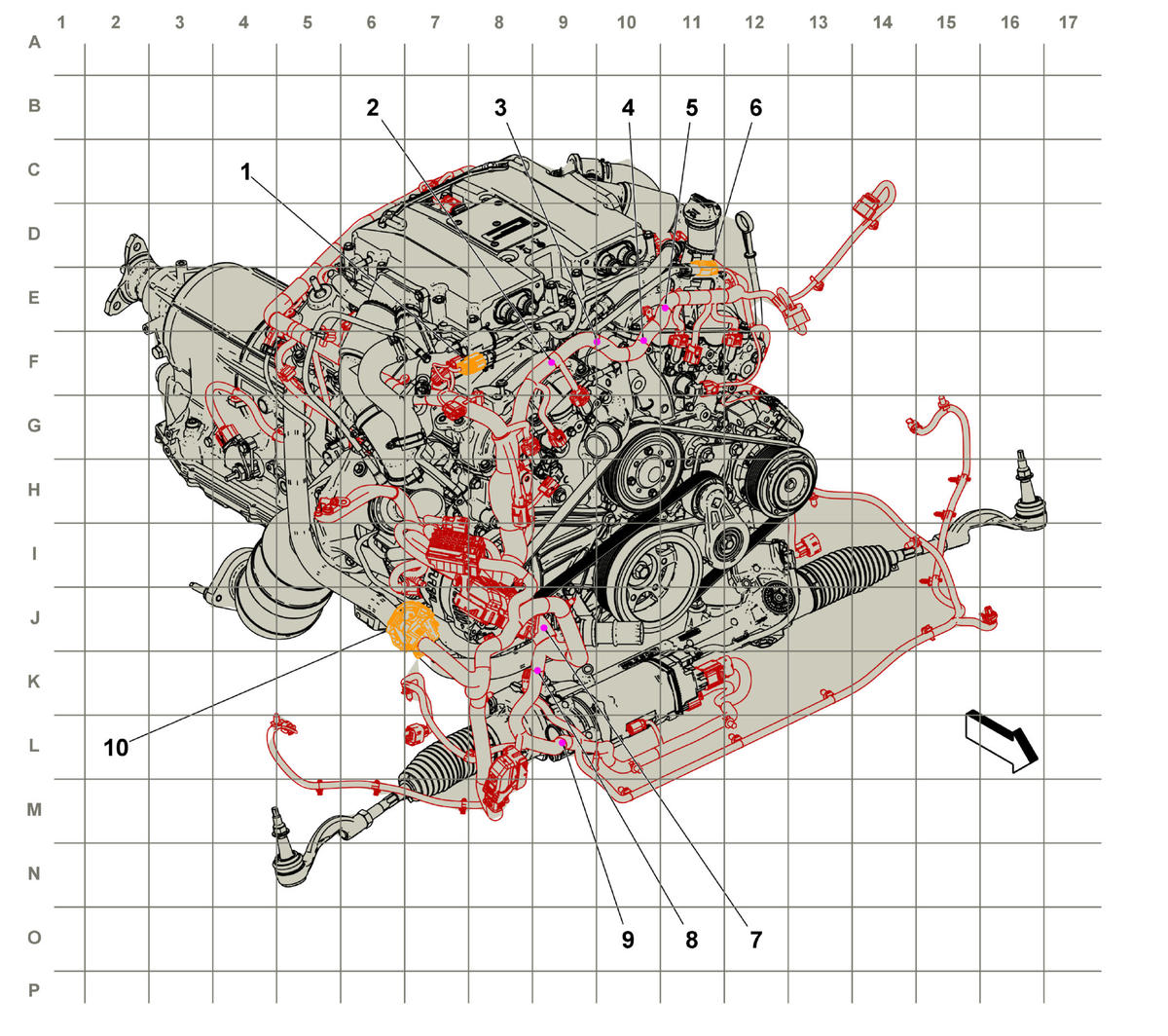

GM4935215Courtesy of GENERAL MOTORS COMPANY
Items
1. X164 Engine Harness to Throttle Body Harness (6 Cavities) (LF3) X164 Engine Harness to Throttle Actuator Harness
2. J137 Engine Harness
3. J141 Engine Harness
4. J140 Engine Harness
5. J138 Engine Harness
6. X168 Engine Harness to Knock Sensor Harness (4 Cavities) (LF3) X168 Engine Harness to Knock Sensor Jumper Harness
7. J132 Engine Harness
8. J131 Engine Harness (LF3)
9. J134 Engine Harness
10. X150 Body Harness to Engine Harness (54 Cavities) X150 Body Harness to Engine Harness
