Wiring Systems And Power Management - Schematic Wiring Diagrams And Wiring Harness Routing Diagrams
>>
Schematic Wiring Diagrams & And Wiring Harness Routing
>>
Wiring Harness Routing Views
>>

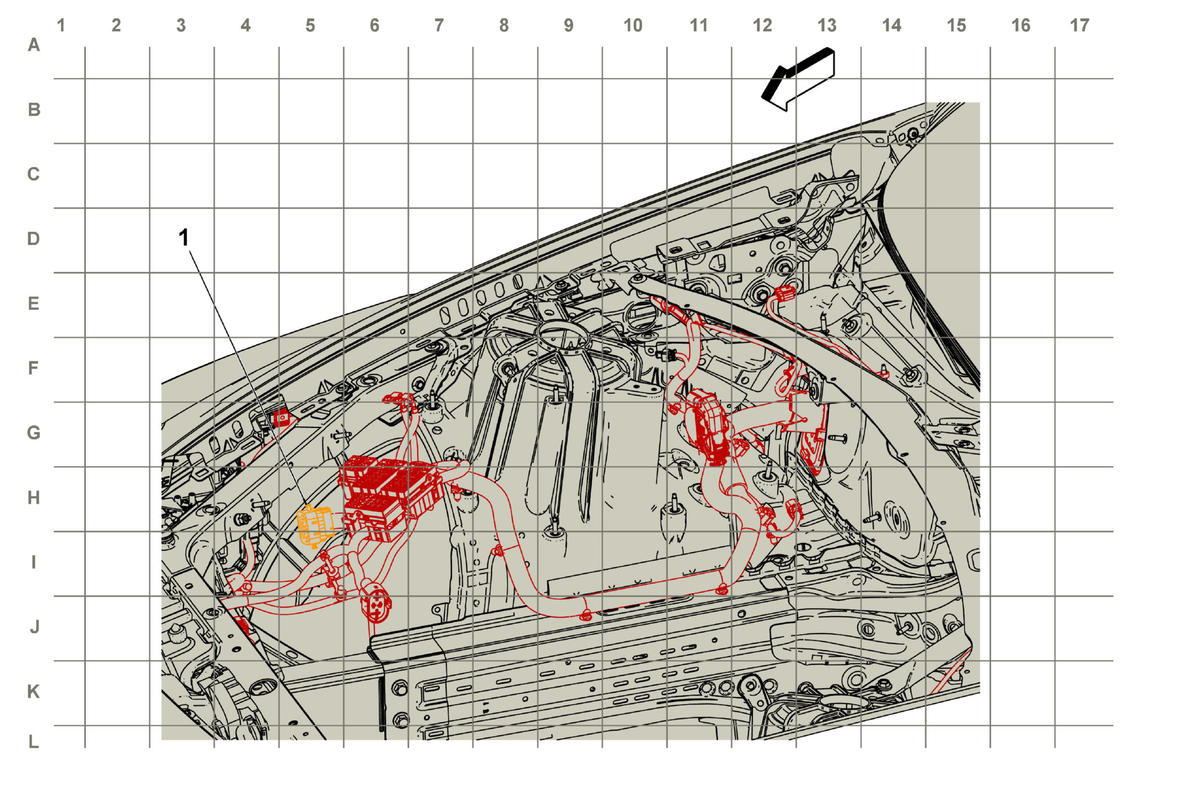

Body and Forward Lamp Harness Routing - Right Side of Engine Compartment
Body and Forward Lamp Harness Routing - Right Side of Engine Compartment
Courtesy of GENERAL MOTORS COMPANY
Items
1. X150 Body Harness to Engine Harness (54 Cavities)
X150 Body Harness to Engine Harness
Courtesy of GENERAL MOTORS COMPANY
