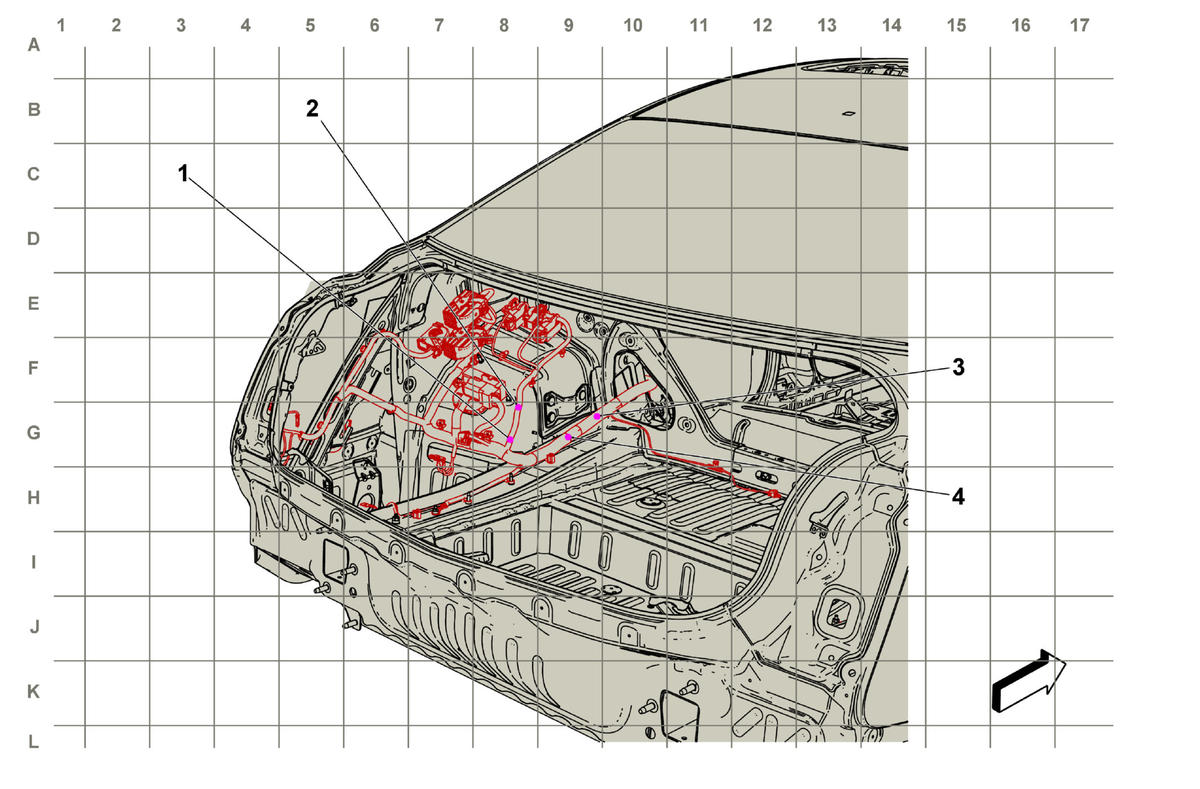

Body Harness Routing - Left Side of Luggage Compartment
Body Harness Routing - Left Side of Luggage Compartment
Courtesy of GENERAL MOTORS COMPANY
Items
1. J420 Body Harness (G96)
2. J431 Body Harness
3. J402 Body Harness
4. J427 Body Harness (UKC)
Courtesy of GENERAL MOTORS COMPANY
