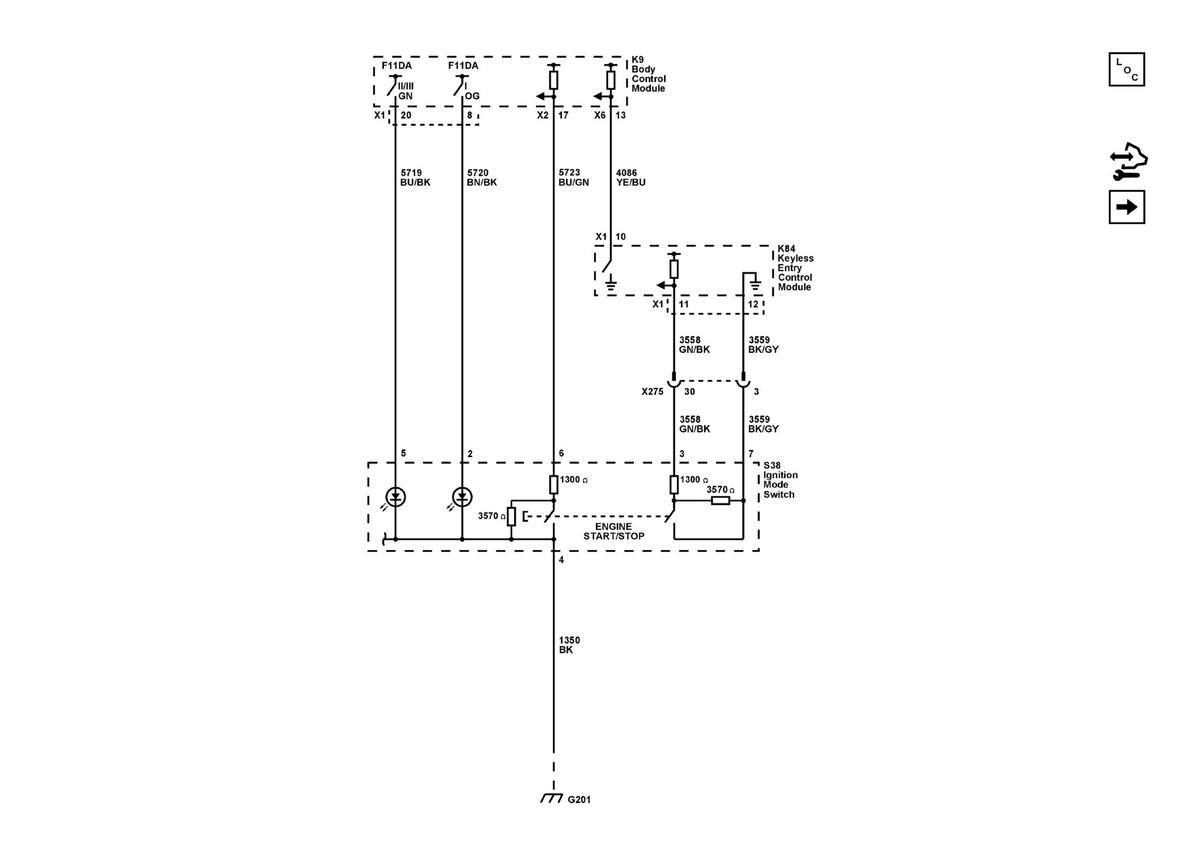

Home >> Cadillac >> 2019 >> CTS Base, RWD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Schematic Wiring Diagrams And Wiring Harness Routing Diagrams >> Schematic Wiring Diagrams & And Wiring Harness Routing >> Power Moding Wiring Schematics >> Ignition Mode Switch
