Wiring Systems And Power Management - Schematic Wiring Diagrams And Wiring Harness Routing Diagrams
>>
Schematic Wiring Diagrams & And Wiring Harness Routing
>>
Power Moding Wiring Schematics
>>

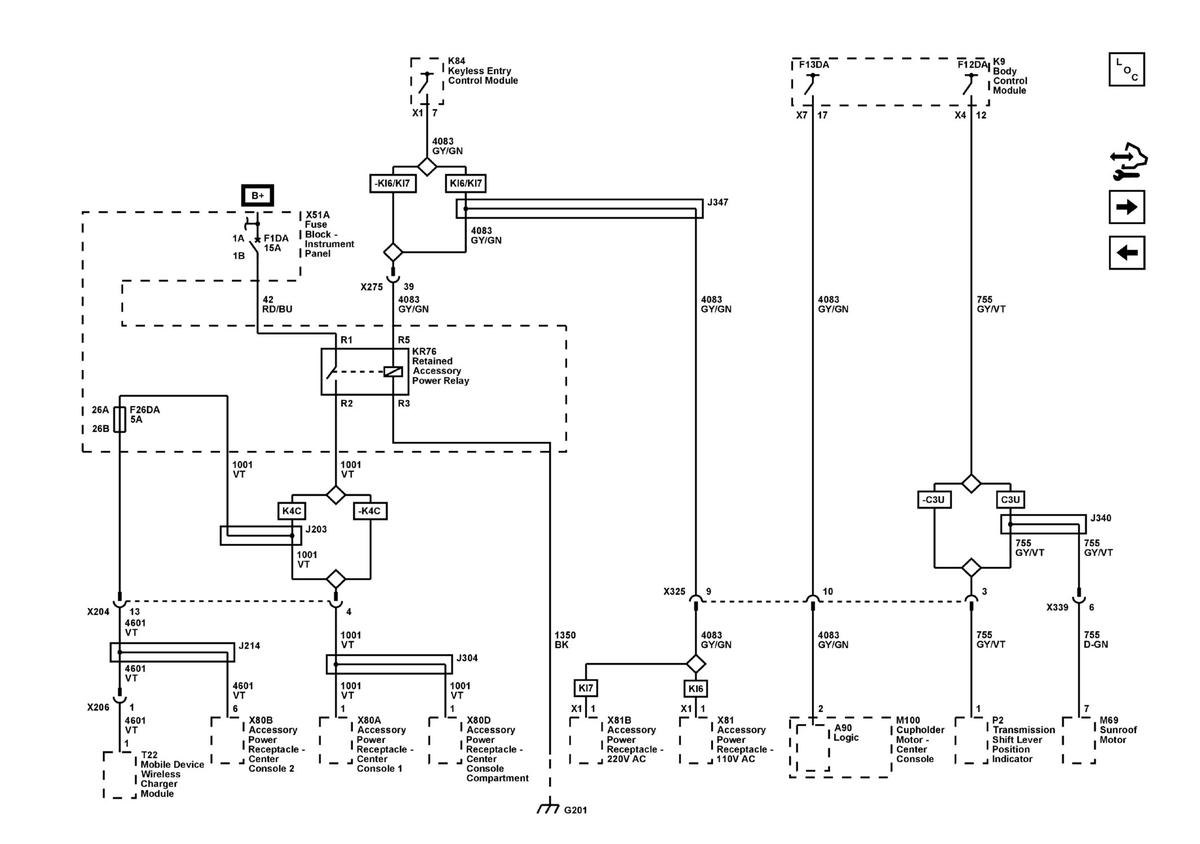

Accessory Power and Retained Accessory Power Relay
Accessory Power and Retained Accessory Power Relay
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
