Home >> Cadillac >> 2019 >> CTS Base, RWD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Schematic Wiring Diagrams And Wiring Harness Routing Diagrams >> Schematic Wiring Diagrams & And Wiring Harness Routing >> Power Distribution Wiring Schematics >> F55UA, F64UA, F65UA, F66UA, F67UA, F69UA and F73UA

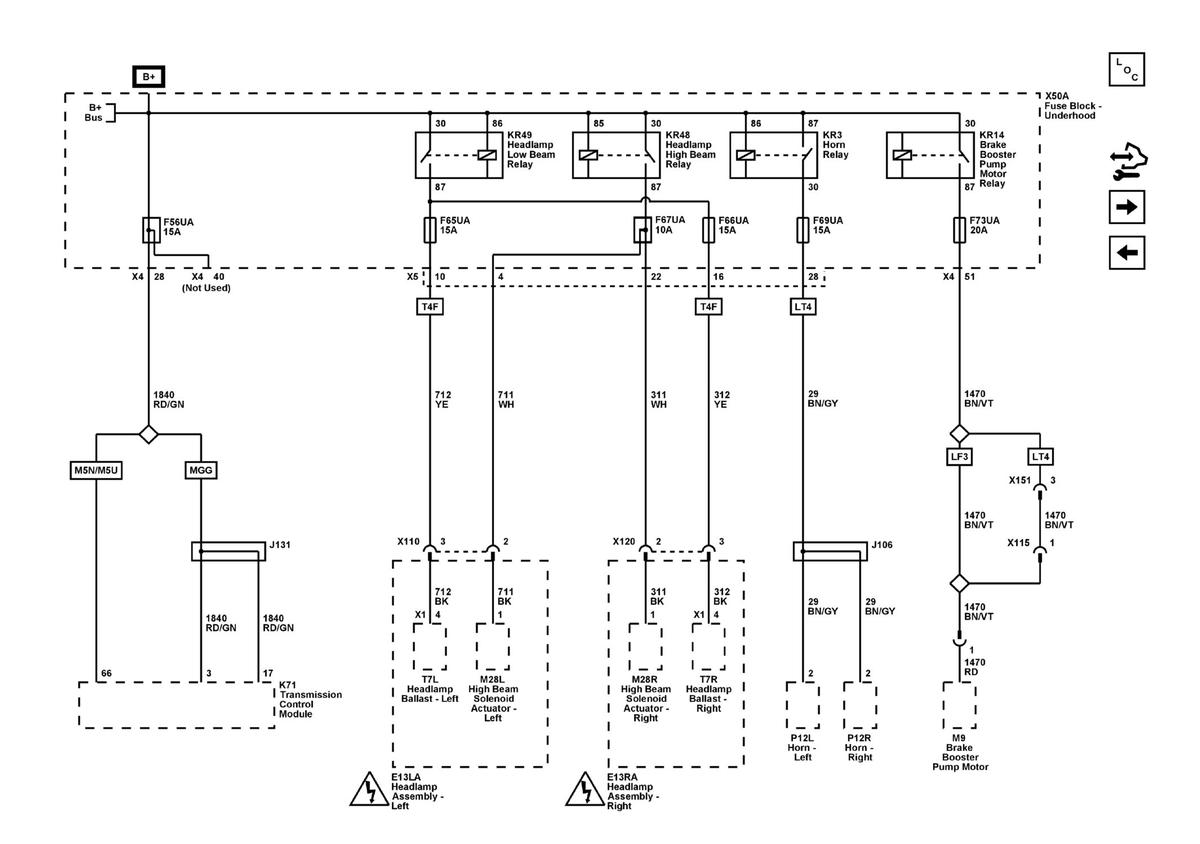

F55UA, F64UA, F65UA, F66UA, F67UA, F69UA and F73UA

GM4933925

Courtesy of GENERAL MOTORS COMPANY
