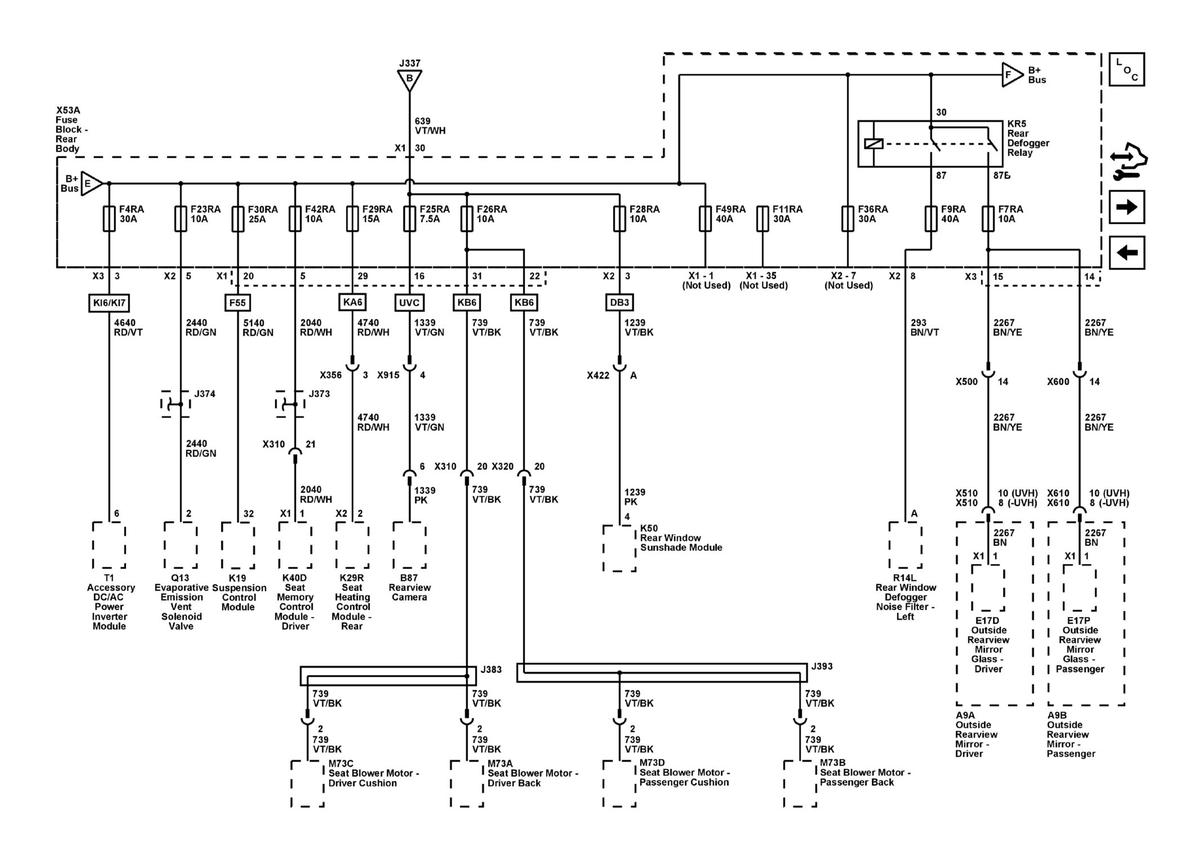

F4RA, F7RA, F9RA, F23RA, F25RA, F26RA, F29RA, F30RA, and F42RA

GM4933959

Courtesy of GENERAL MOTORS COMPANY
