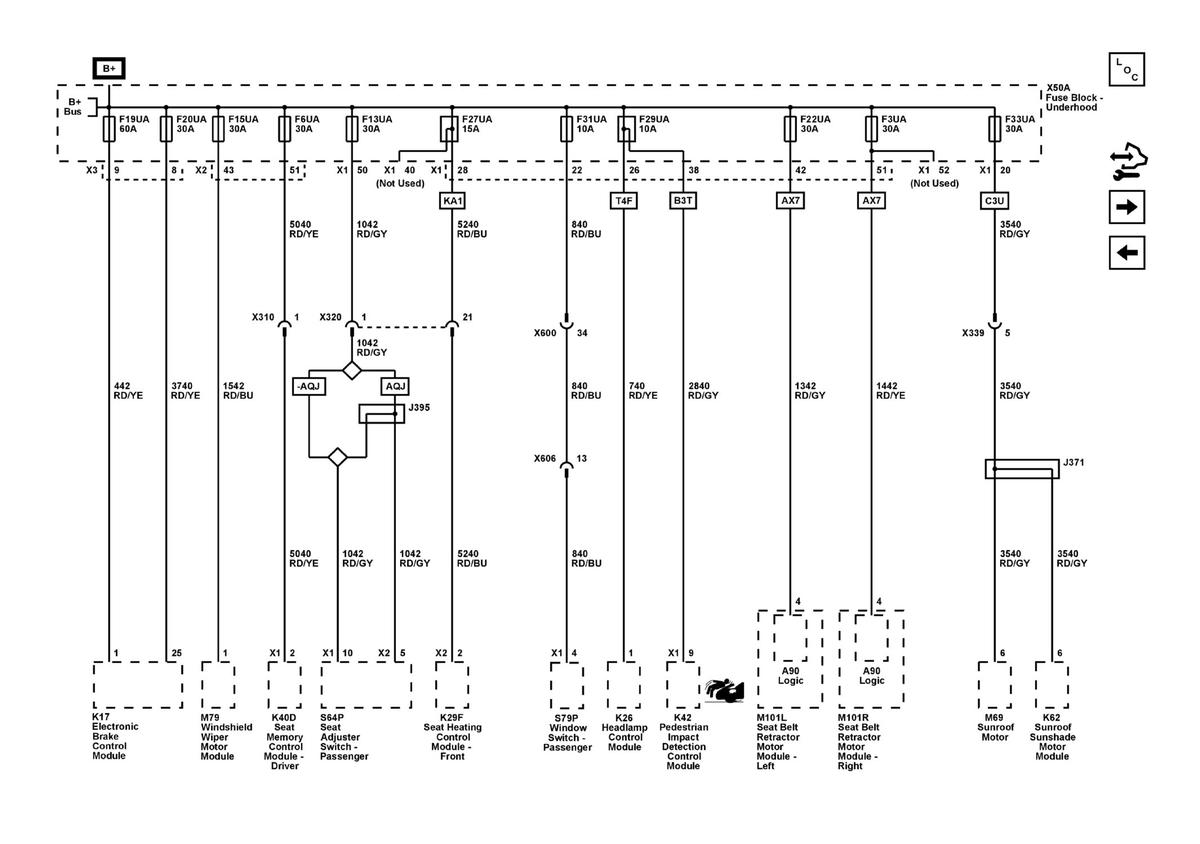

F3UA, F4UA, F6UA, F13UA, F15UA, F19UA, F20UA, F22UA, F27UA, F29UA, F30UA, F31UA and F32UA

GM4933920

Courtesy of GENERAL MOTORS COMPANY
