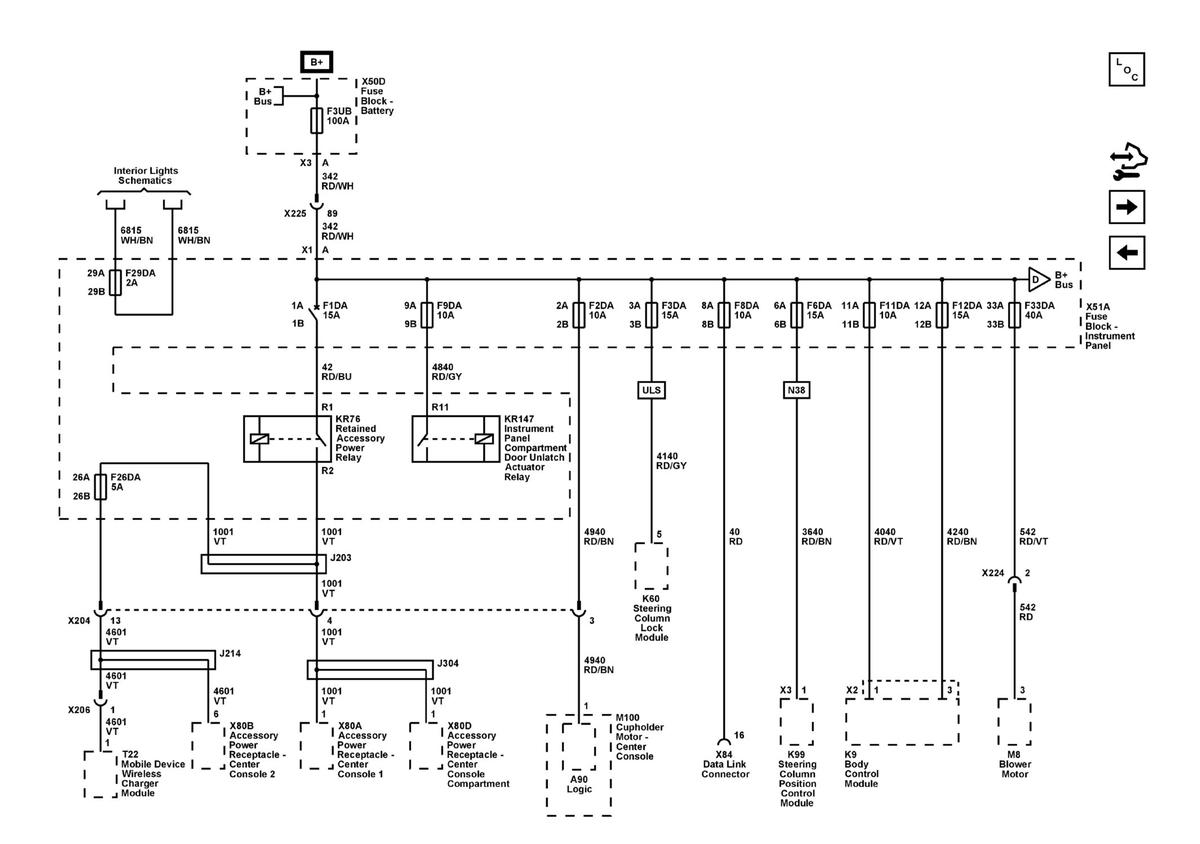

F1DA, F2DA, F3DA, F3UB, F6DA, F8DA, F9DA, F11DA, F12DA, F26DA, F29DA and F33DA

GM4933951

Courtesy of GENERAL MOTORS COMPANY
