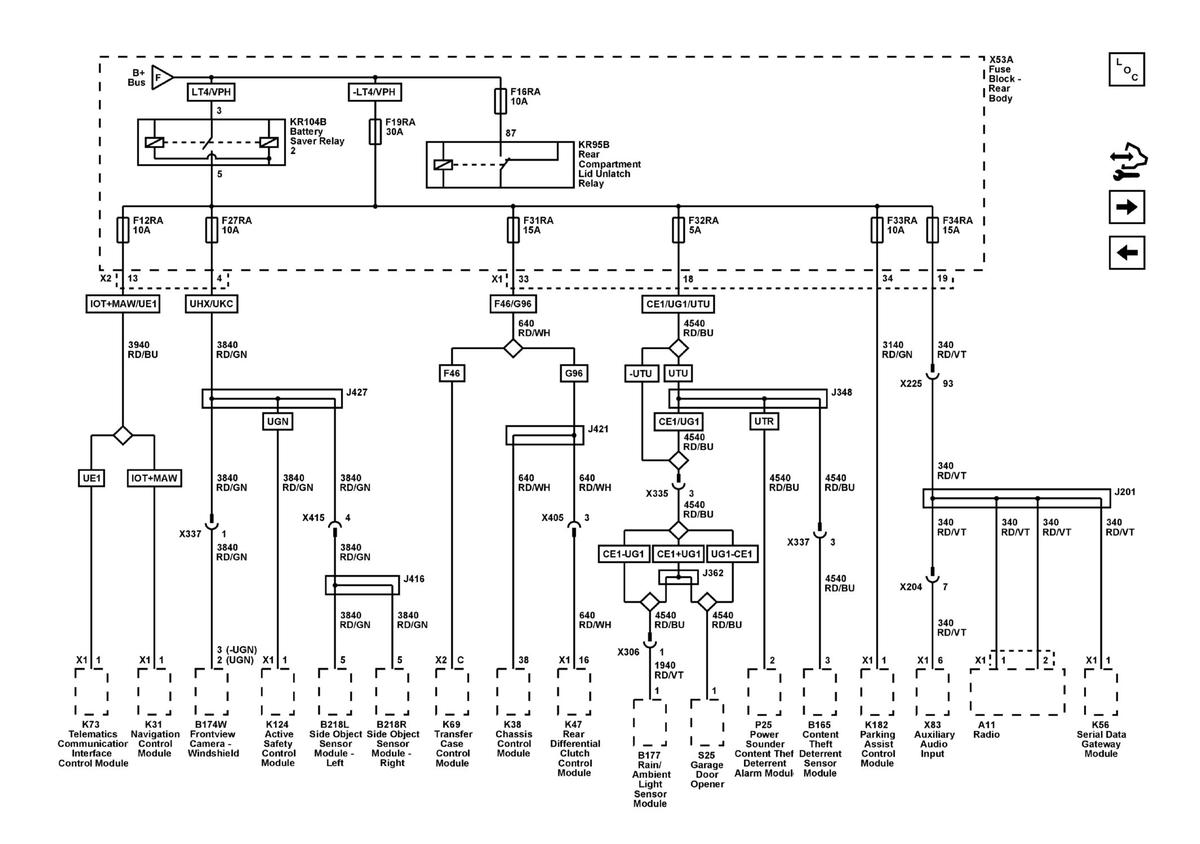

F12RA, F16RA, F19RA, F27RA, F31RA, F32RA, F33RA, and F34RA

GM4933961

Courtesy of GENERAL MOTORS COMPANY
