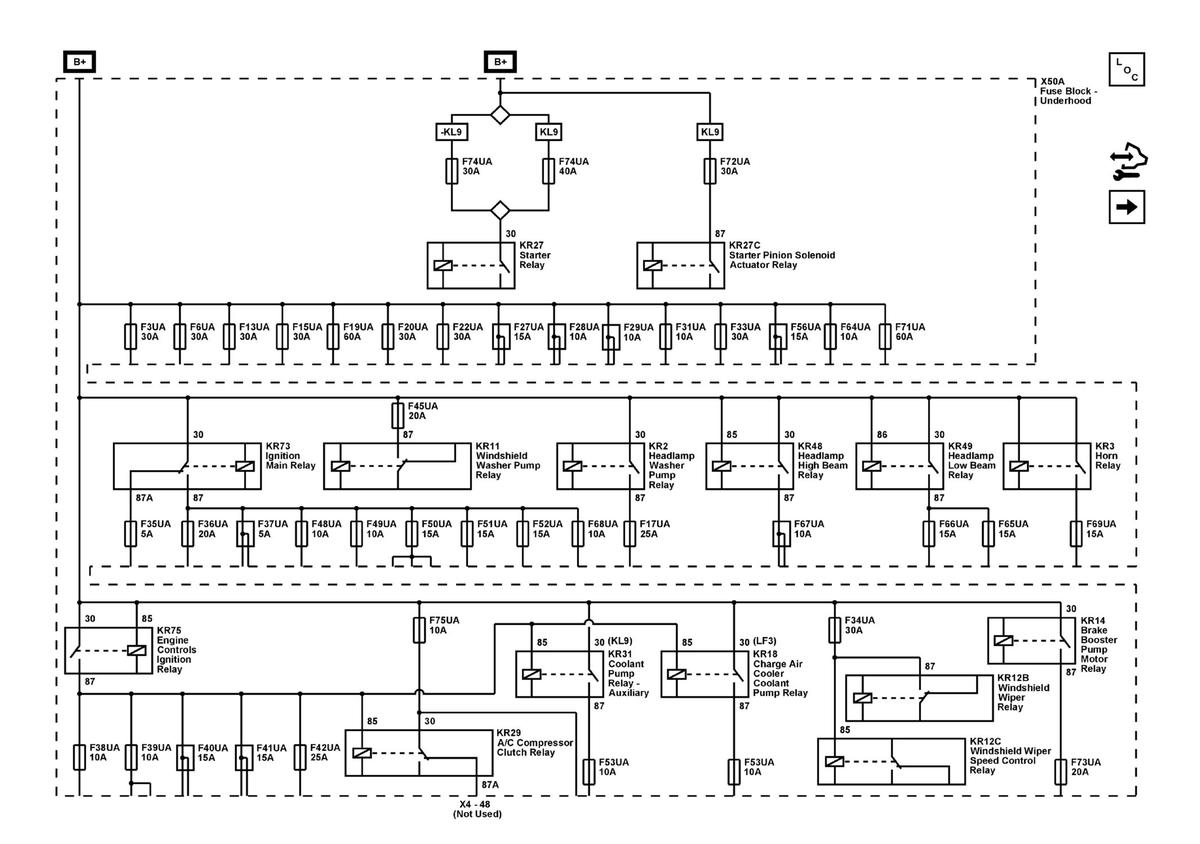

Home >> Cadillac >> 2019 >> CTS Base, RWD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Schematic Wiring Diagrams And Wiring Harness Routing Diagrams >> Schematic Wiring Diagrams & And Wiring Harness Routing >> Power Distribution Wiring Schematics >> B+ Bus - Fuse Block - Underhood
