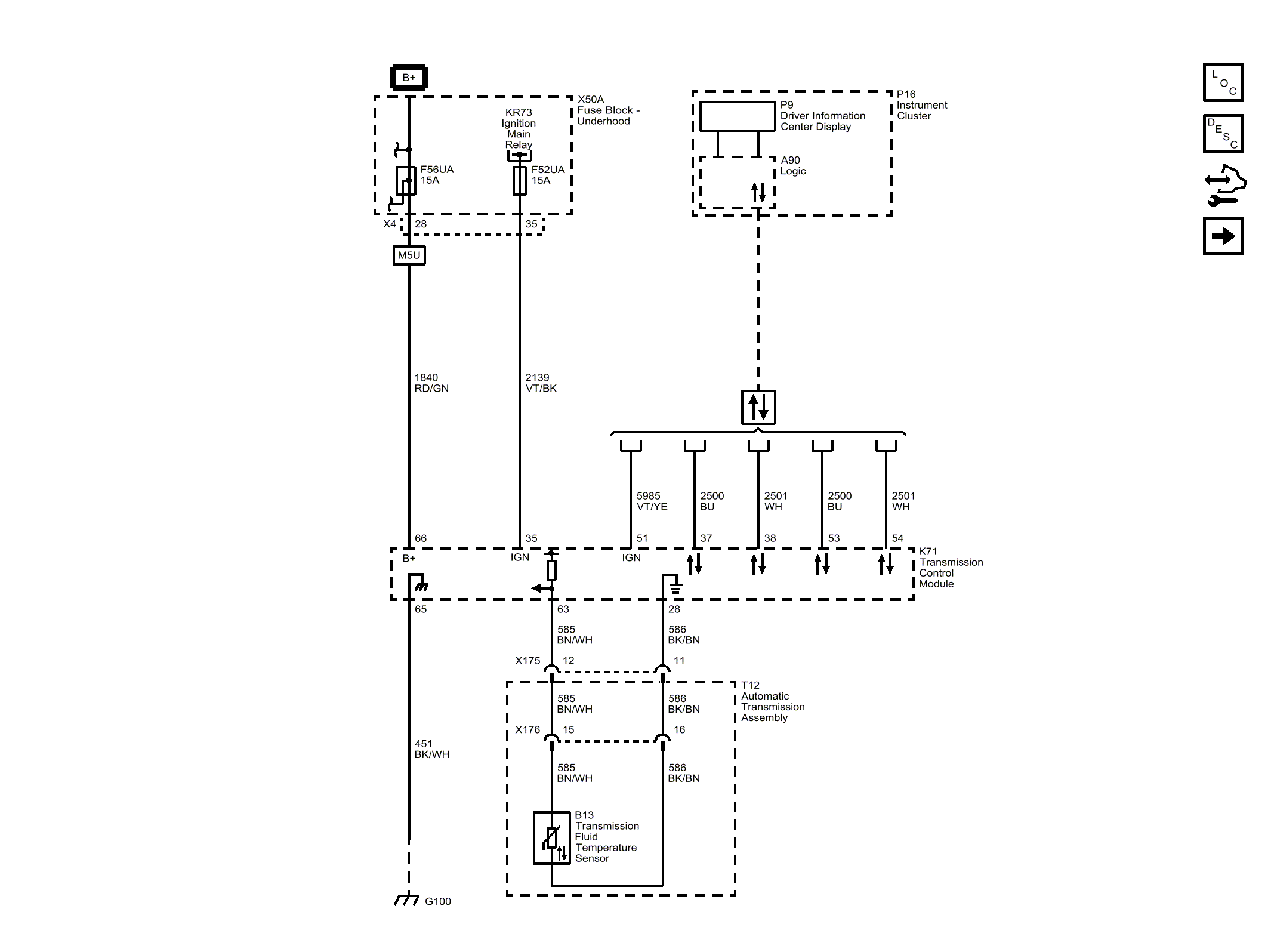

Power, Ground, Serial Data, MIL and Fluid Temperature

WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
GM4695491Courtesy of GENERAL MOTORS COMPANY
