Rear Seat Back Cushion Removal and Installation (60% with AM9)

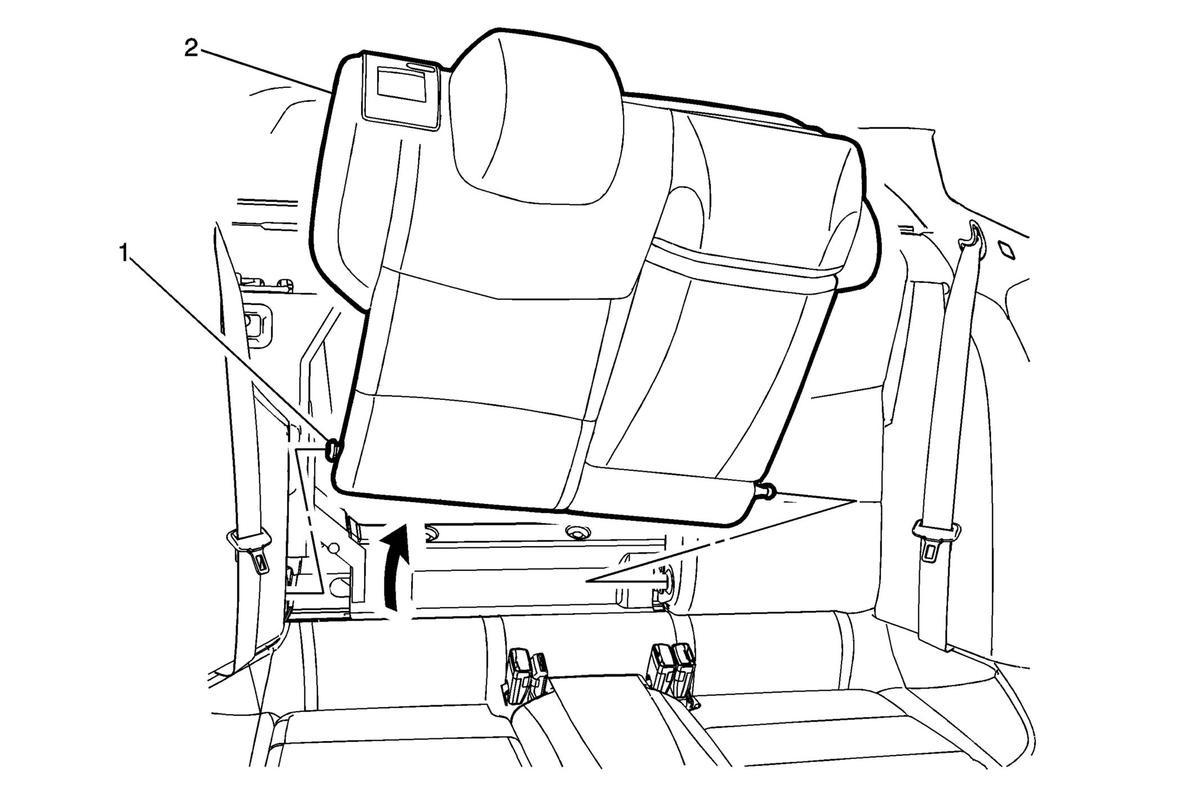

GM2814726Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the rear seat back 40% cushion. Refer to Rear Seat Back Cushion Removal and Installation (60% with AM9) .
  2. Remove the right side rear seat back bolster. Refer to Rear Seat Back Bolster Replacement .
1 Rear Seat Back Hinge Pivot Bolt

Procedure

  1. Pull the rear seat back cushion latch release located on the top of the rear seat back cushion, and fold the rear seat back cushion forward.
  2. Push in on the rear seat back cushion pivot support, and release from bracket.
2 Rear Seat Back Cushion

Procedure

  1. Pull up on the outer side of the rear seat back cushion and remove the rear seat back cushion from the bracket and hinge.
  2. Disconnect the electrical connector, if equipped.
  3. Transfer components as necessary.
