Preliminary Procedure
Remove the rear seat back bolster. Refer to Rear Seat Back Bolster Replacement . |
| 1 |

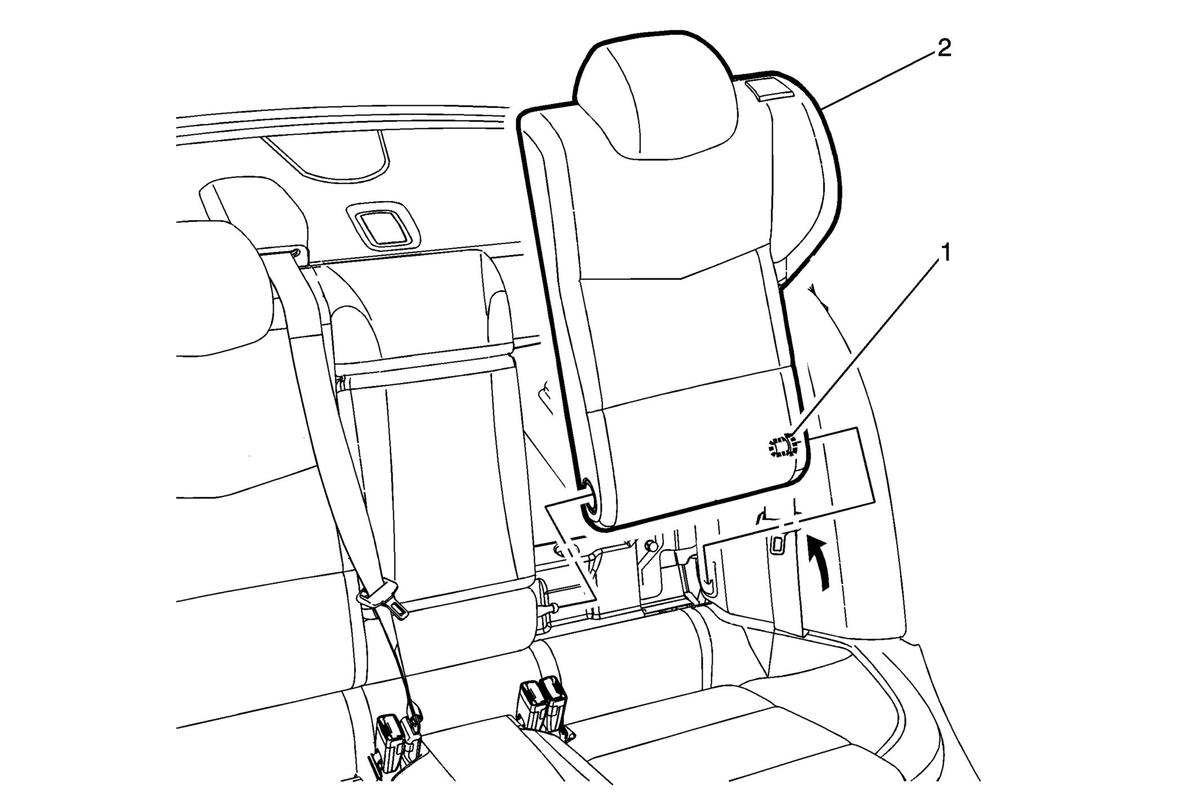

Rear Seat Back Hinge Pivot Bolt Procedure
- Pull the rear seat back cushion latch release located on the top of the rear seat back cushion, and fold the rear seat back cushion forward.
- Push in on the rear seat back cushion pivot bolt and release from bracket.
|
| 2 |
Rear Seat Back Cushion Procedure
- Pull up on the outer side of the rear seat back cushion and remove the rear seat back cushion from the bracket and hinge.
- Disconnect the electrical connector, if equipped.
- Transfer components as necessary.
|
