Direct Overdrive Internal Gear, Direct Overdrive Carrier, Input Internal Gear, and Input Carrier Assembly Removal (8L90)

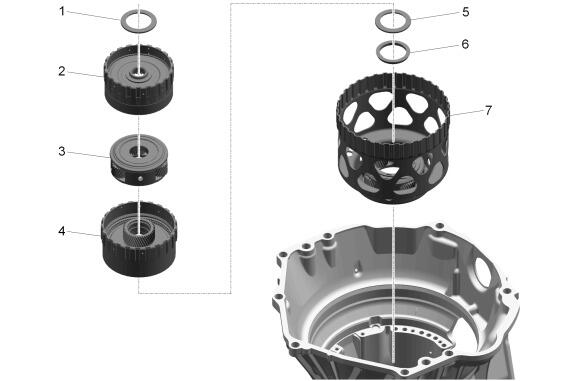

  1. Fig 1: Exploded View Of Direct Overdrive Internal Gear, Direct Overdrive Carrier, Input Internal Gear And Input Carrier Assembly Removal Components (8L90/M5U)
    GM5646150Courtesy of GENERAL MOTORS COMPANY

    4-5-6-7-8 Reverse Clutch and Direct Overdrive Internal Gear Hub Thrust Bearing (1) - Remove

  2. Direct Overdrive Internal Gear (2) - Remove
  3. Direct Overdrive Carrier (3) - Remove
  4. Input Internal Gear (4) - Remove
  5. Input Sun Gear Thrust Bearing (5) - Remove
  6. Input Sun Gear Spacer (6) - Remove
  7. Input Carrier (7) - Remove
