Direct Overdrive Carrier, Input Internal Gear, and 2-3-4-6-8 and 4-5-6-7-8 Reverse Clutch Assemble (8L90)

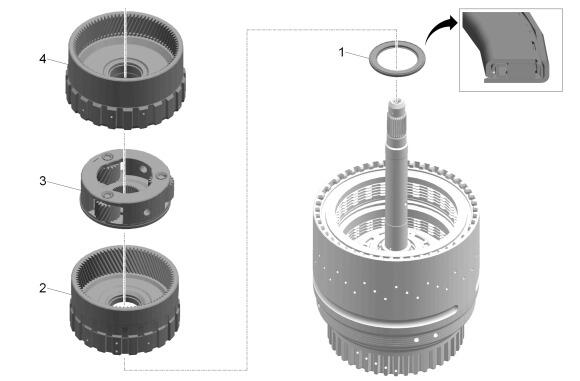

  1. GM5813312Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure proper orientation of bearing.

    4-5-6-7-8 Reverse Clutch and Direct Overdrive Internal Gear Hub Thrust Bearing (1) - Install

  2. Direct Overdrive Internal Gear (2) - Install
  3. Direct Overdrive Carrier (3) - Install
  4. Input Internal Gear (4) - Install
