Auxiliary Fluid Accumulator Installation (With Stop/Start)

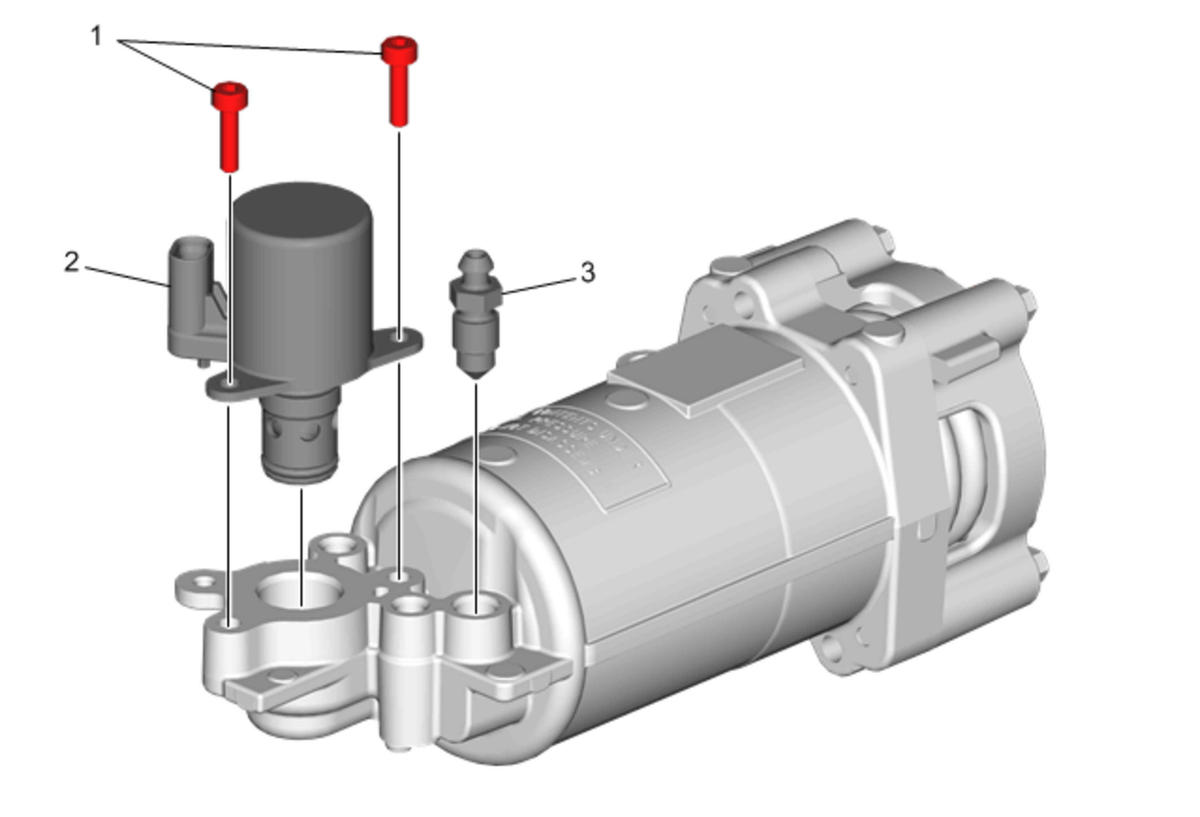

  1. GM4085813Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Automatic Transmission Auxiliary Fluid Accumulator Bleeder Valve (3) - Install and tighten to 11 N.m (97 lb in)

  2. Automatic Transmission Auxiliary Fluid Accumulator Solenoid (2) - Install
  3. Automatic Transmission Auxiliary Fluid Accumulator Bolt [2x] (1) - Install and tighten to 3 N.m (27 lb in)

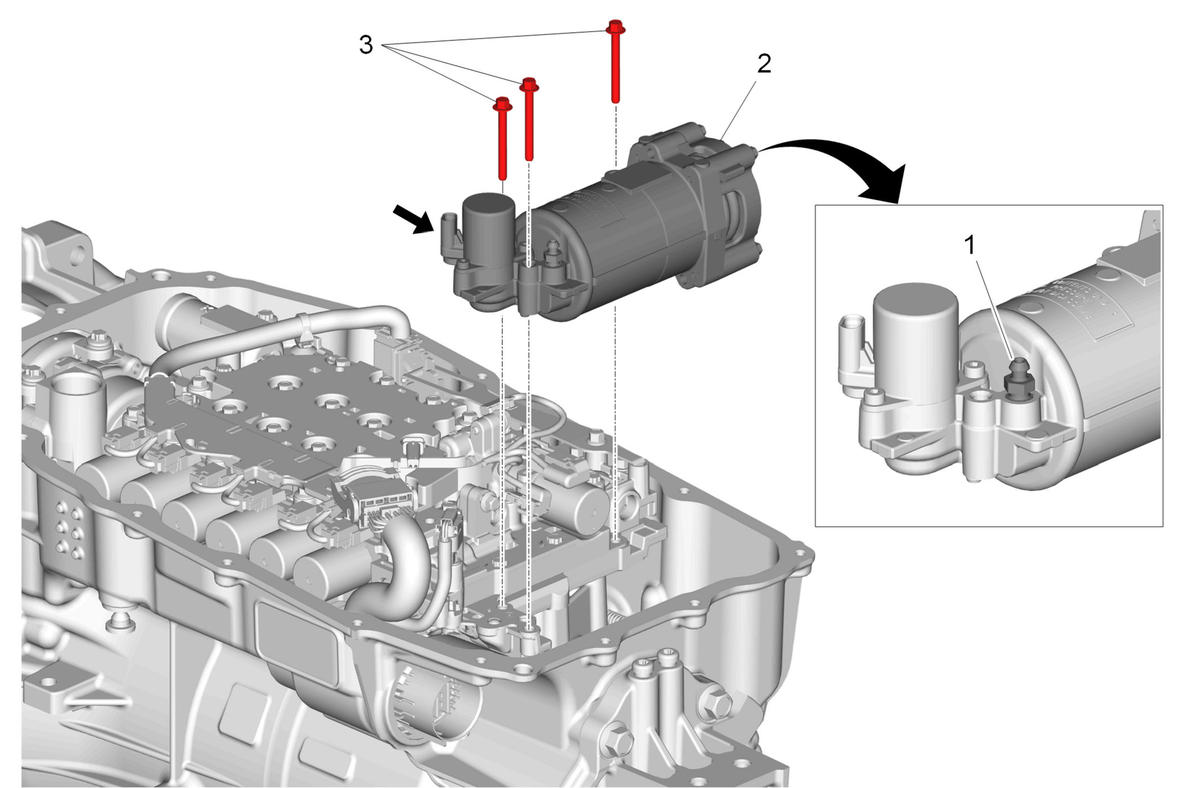

  4. GM4012788Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Auxiliary Fluid Accumulator (2) - Install

  5. Control Valve Lower Body Bolt (1) - Install and tighten [3x] to 8 N.m (71 lb in)
  6. Connect the electrical connector:
