Instrument Panel Cluster Trim Plate Replacement (With UV6)

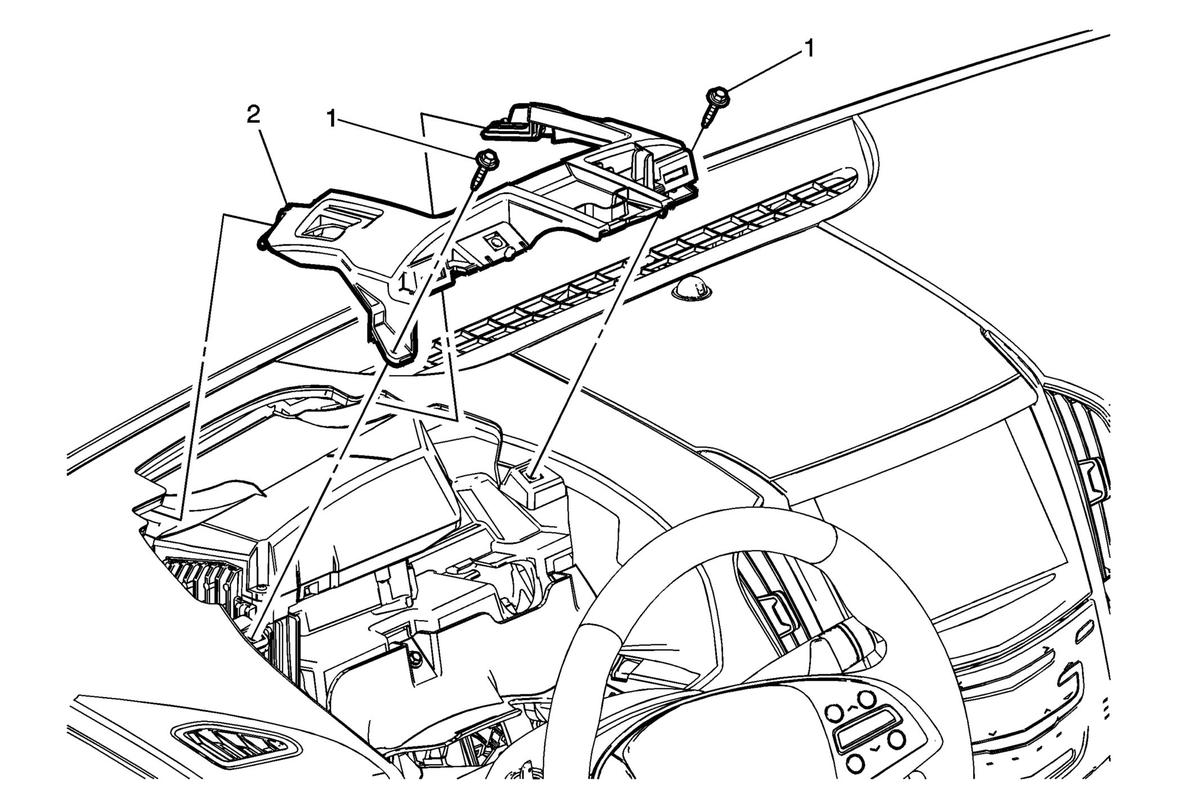

GM2814375Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument cluster. Refer to Instrument Cluster Replacement .
1 Instrument Panel Cluster Trim Plate Fasteners (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Instrument Panel Cluster Trim Plate
Procedure
Disconnect the electrical connections.
