Front Side Door Armrest Switch Mount Plate Replacement
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1

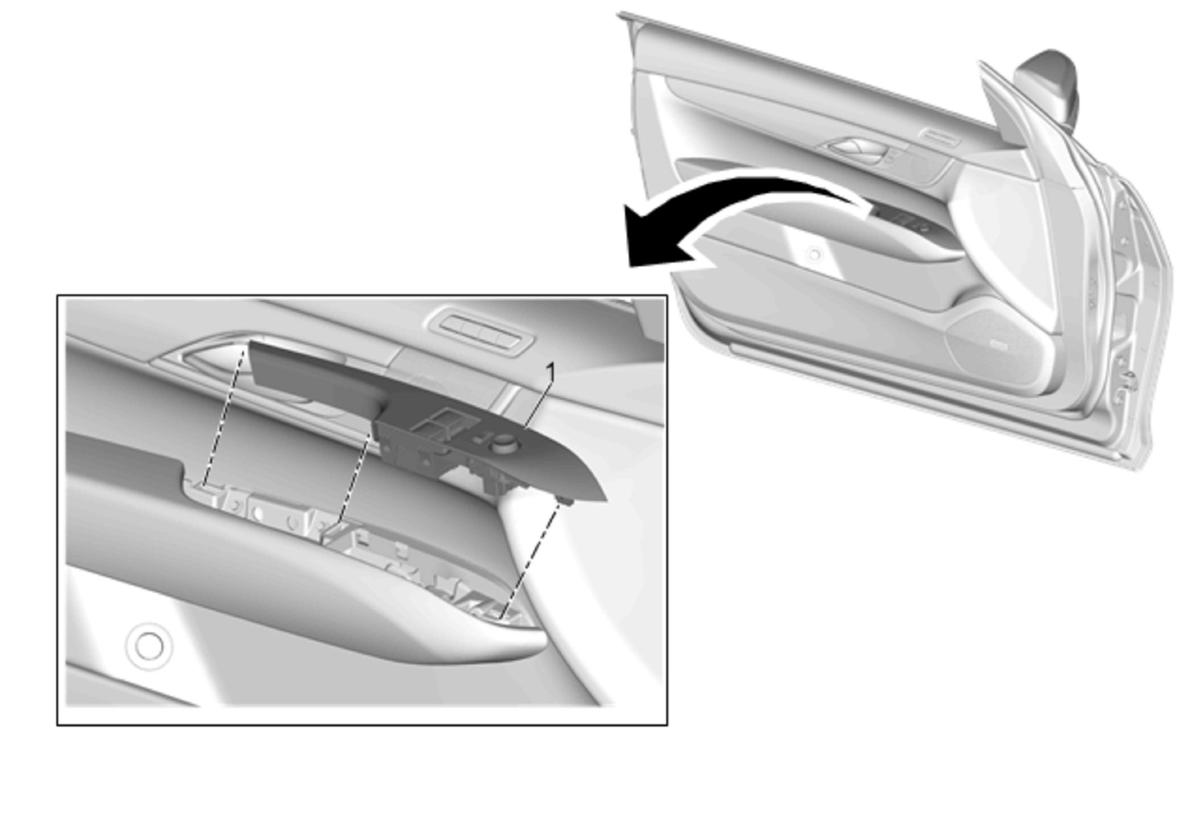

Front Side Door Armrest Switch Mount Plate Assembly
Procedure
Using a flat-bladed plastic trim tool, start at the rear of the armrest switch plate and gently insert trim tool to lift the front side door armrest switch mount plate from the door trim assembly.
Disconnect the electrical connector from the switch assembly.
