Hood Primary and Secondary Latch Replacement (ATS-V)

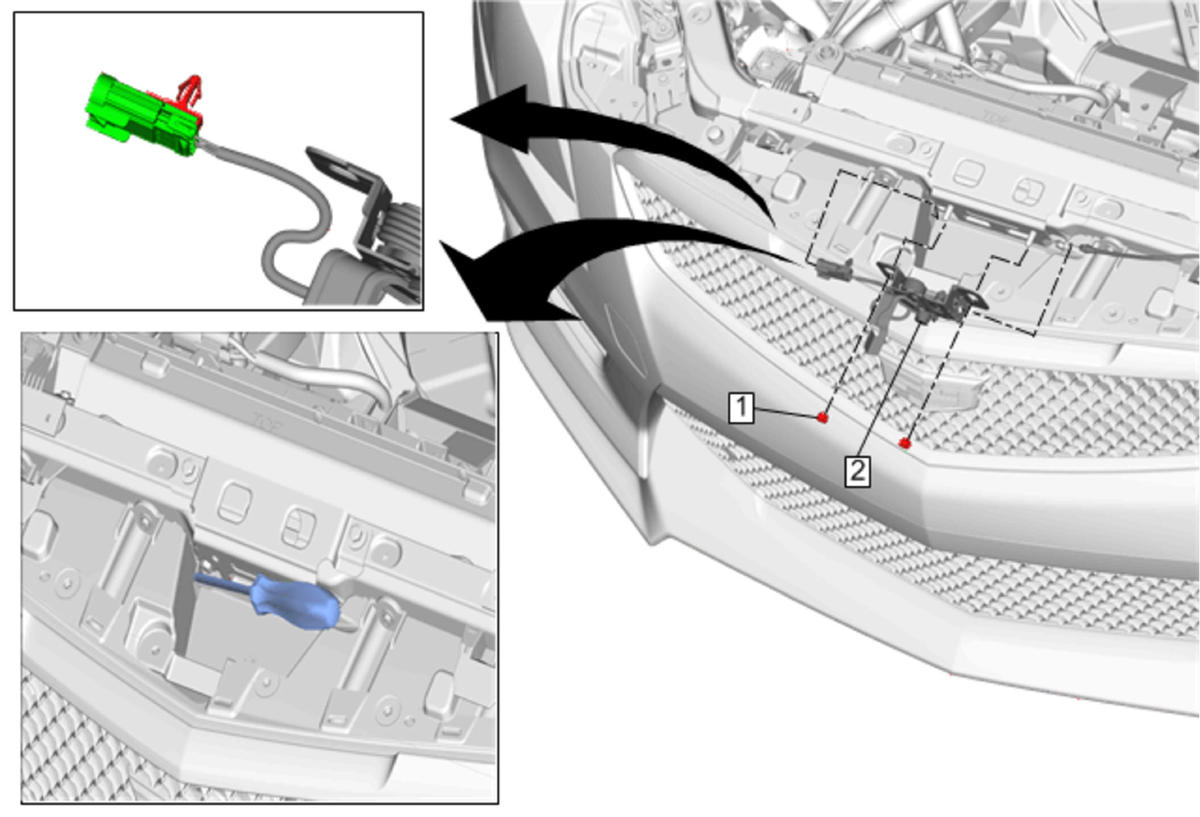

GM4044074

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Front Bumper Fascia Upper Support Replacement

1

Hood Primary and Secondary Latch Nut [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

2

Hood Primary and Secondary Latch

Procedure

Mark location of hood latch to avoid the need to realign after installation.
Insert long-handled trim tool into latch opening under plastic panel to disconnect electrical connector retainer.
Pull the hood latch out and disconnect the hood release cable.
