Hood Front Weatherstrip Replacement
Hood Front Weatherstrip Replacement
Courtesy of GENERAL MOTORS COMPANY

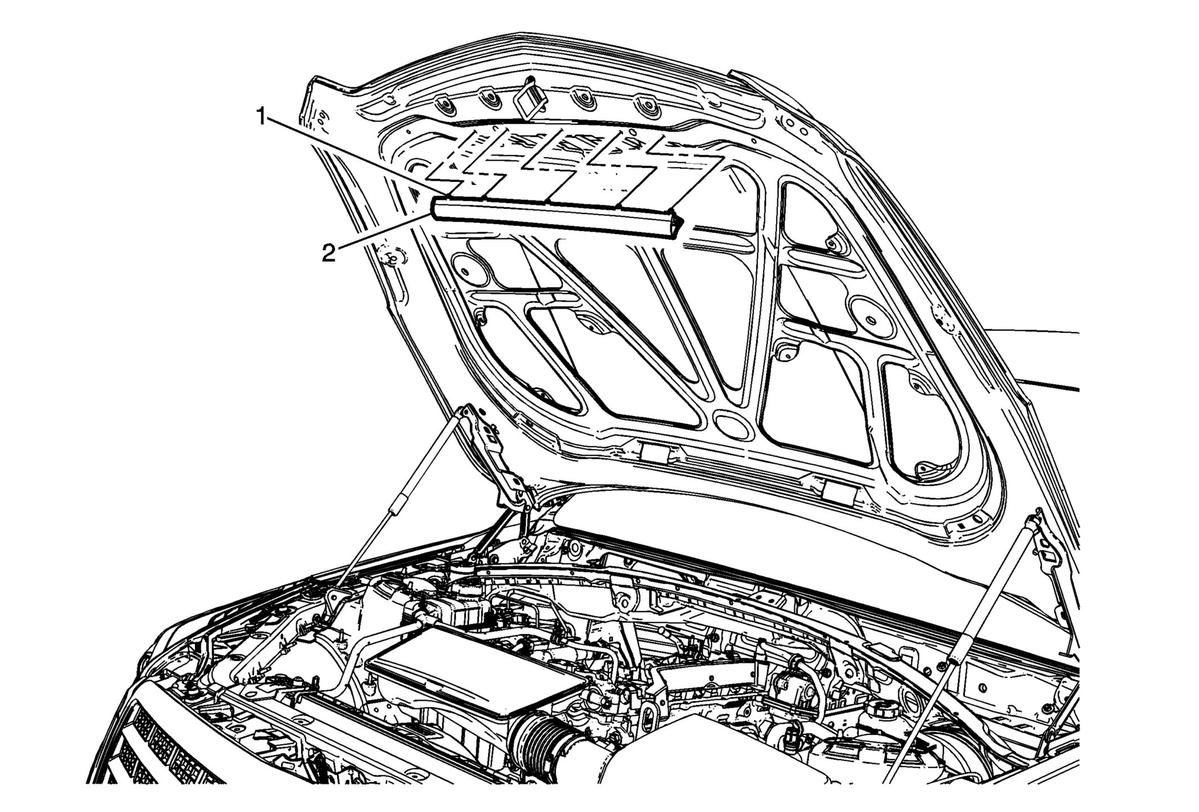

Callout
Component Name
1
Hood Front Weatherstrip Retainer
Procedure
The hood front weatherstrip is held in place with 5 plastic push-in retainers. Using a suitable tool, carefully pull the push-in retainers to release the hood front weatherstrip from the hood insulator.
2
Hood Front Weatherstrip
