Front Side Door Lower Auxiliary Weatherstrip Replacement

Courtesy of GENERAL MOTORS COMPANY

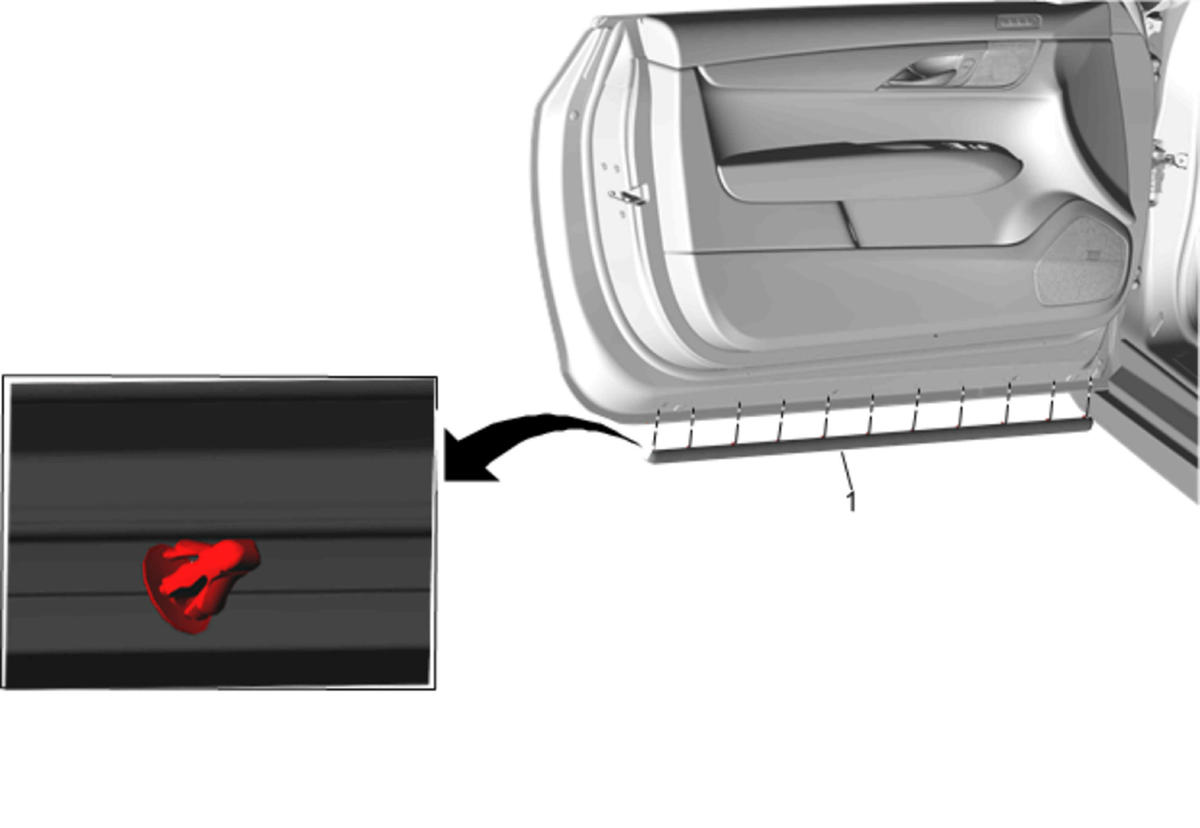

Callout	Component Name
1	Front Side Door Lower Auxiliary Weatherstrip Procedures Open the door to the full open position. Using a suitable tool, remove the integral retainers and weatherstrip from the door. NOTE: Not all integral retainers are shown for clarity. Inspect the door for a proper seal after the weatherstrip has been replaced.

Callout

Component Name

Front Side Door Lower Auxiliary Weatherstrip

Procedures

Open the door to the full open position.
Using a suitable tool, remove the integral retainers and weatherstrip from the door.

NOTE:
