Front Side Door Front Auxiliary Weatherstrip Replacement

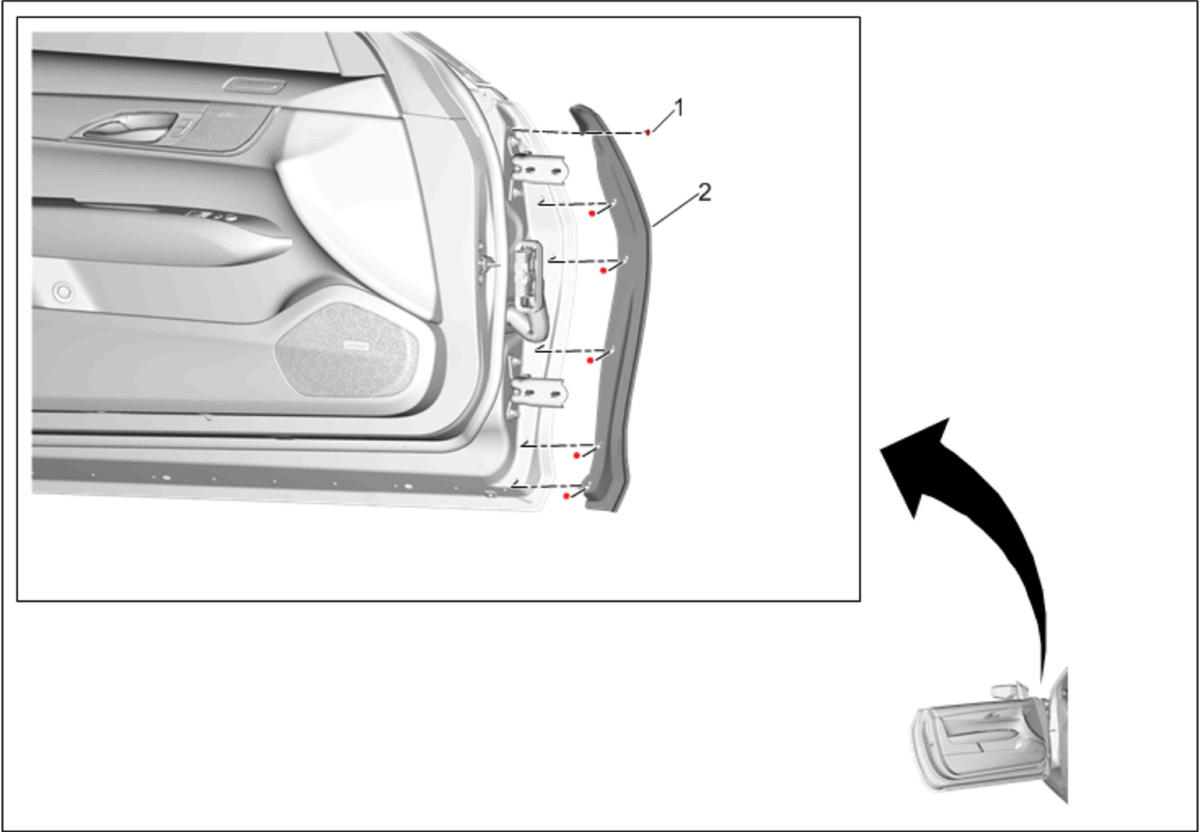

GM3684475Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Open the door to the full open position.
1 Front Side Door Front Auxiliary Weatherstrip Retainer (Qty: 6)
Procedure
Using a suitable tool, remove the retainers from the door.
2 Front Side Door Front Auxiliary Weatherstrip
NOTE:

Inspect the door to ensure a proper seal after the weatherstrip has been replaced.
