Radio Front Center Speaker Grille Replacement

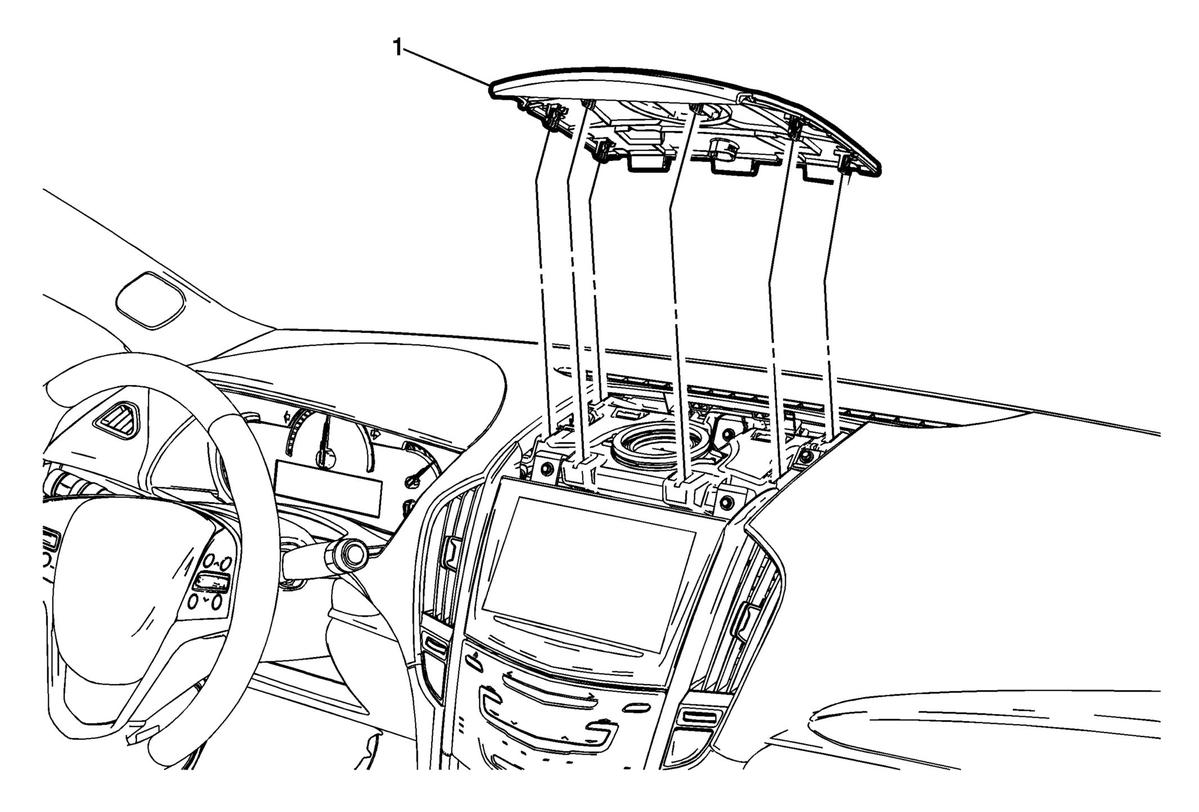

GM2830997Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Radio Front Center Speaker Grille

Procedure

  1. Use a plastic flat bladed tool to remove the grille assembly.
  2. Disconnect the electrical connector.
  3. Transfer components as necessary.
